To remove

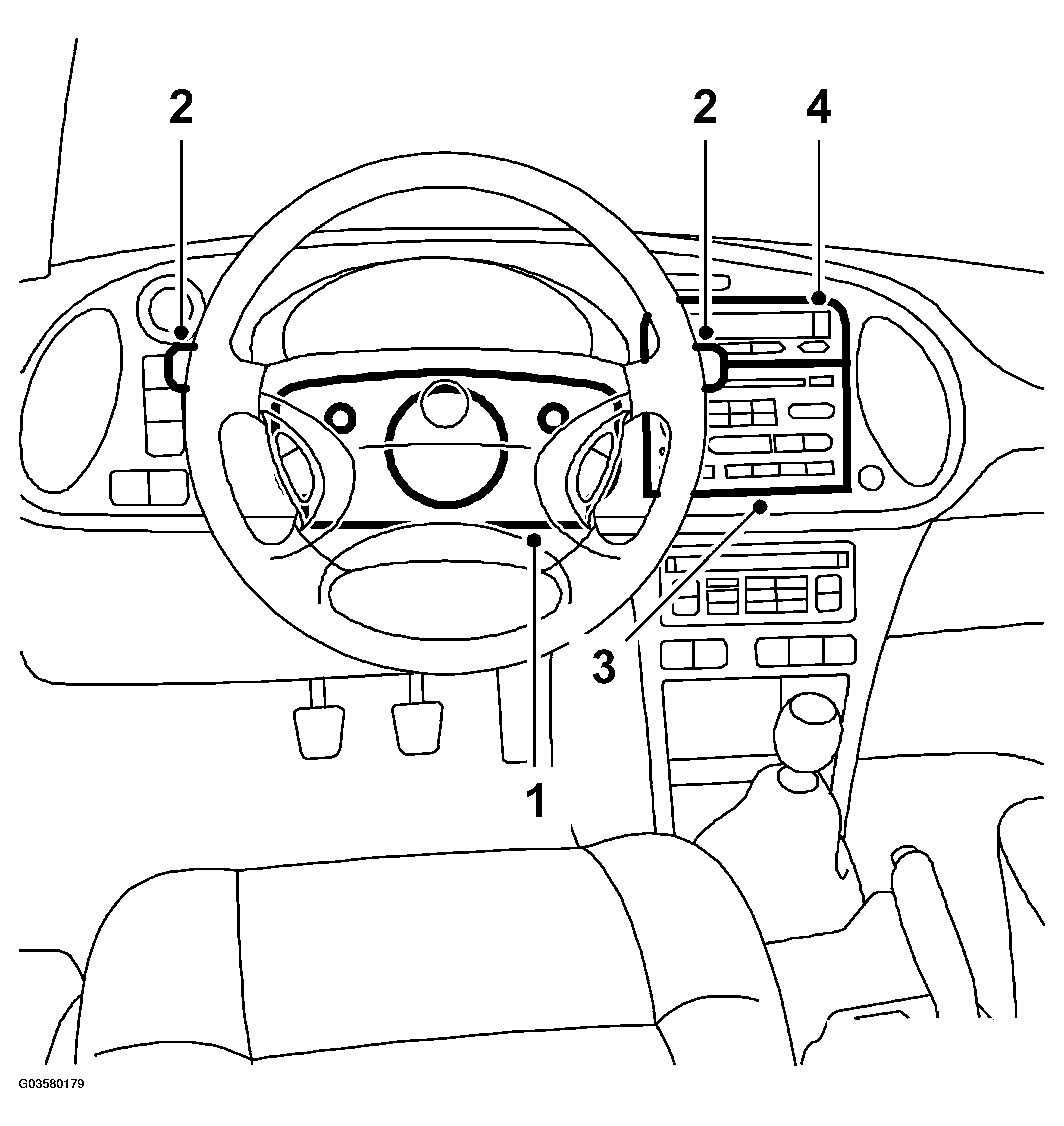

Fig 1: Illustration For Steps 1-4
G03580179Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the upper and lower steering column cowls.
    NOTE: Take car when removing the steering column cowls.
    The catches in the joint can break.
  2. Remove the direction indicator and windscreen wiper stalk switches.
  3. Remove the radio.
    NOTE: Make a note of the radio code.
  4. Remove the SID unit.
  5. Remove all switches, shiny buttons and the seat-belt warning lamp.

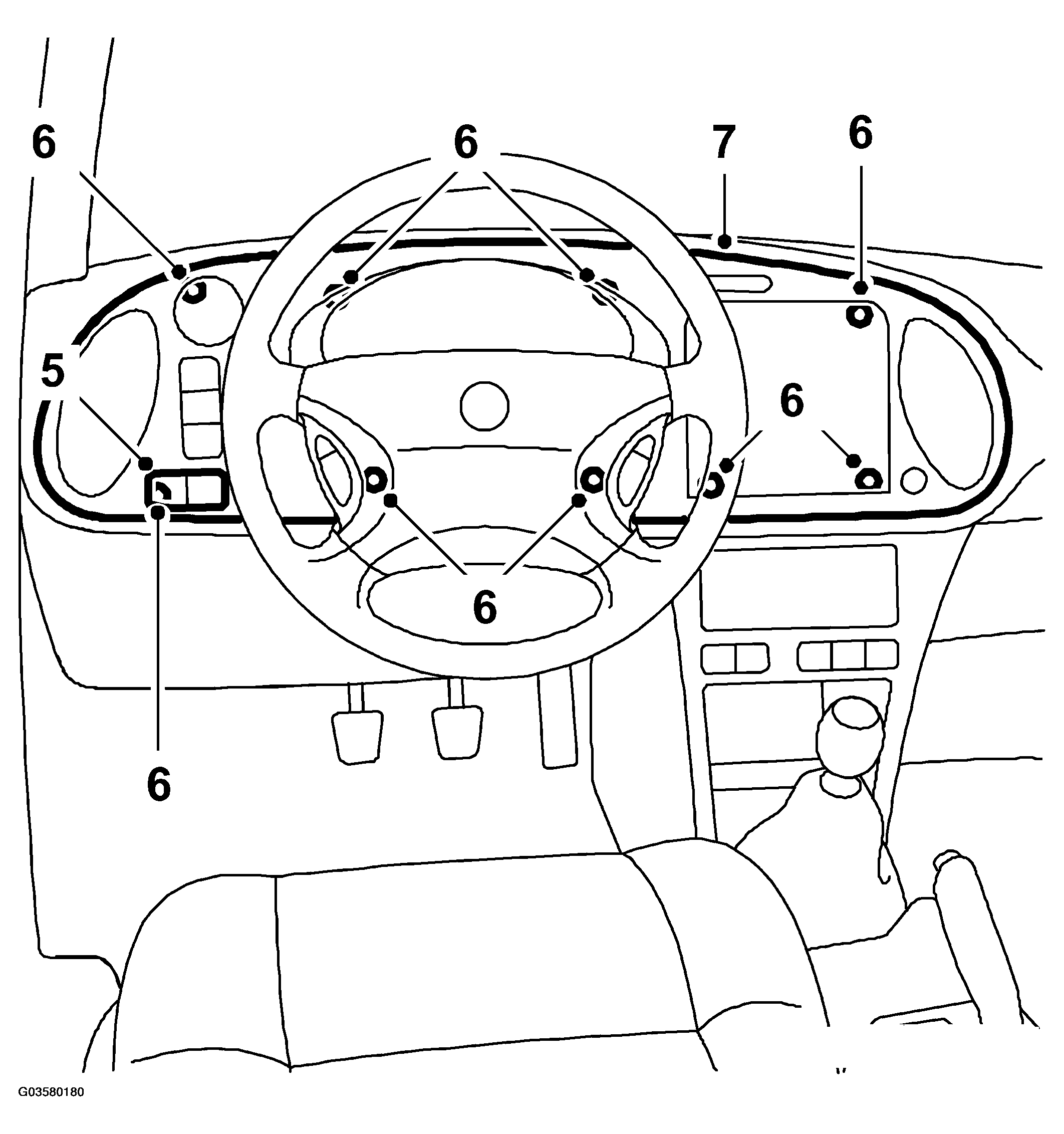

    Fig 2: Illustration For Steps 5-7
    G03580180Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the instrument plate screws.
  7. Detach the instrument plate and move it outwards into the cabin area.
  8. Remove the main instrument unit screws.

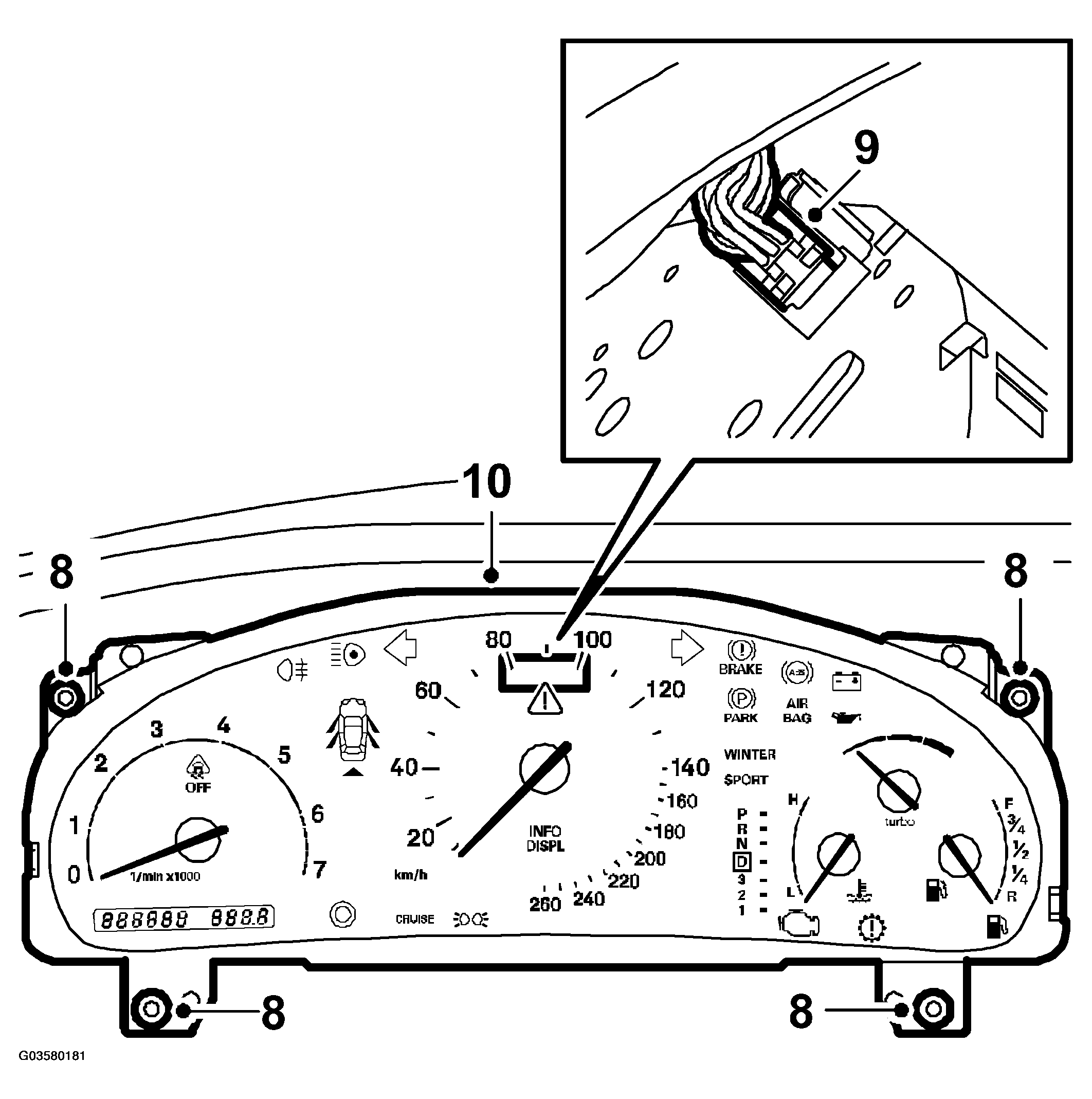

    Fig 3: Illustration For Steps 8-10
    G03580181Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Unplug the connector on the back of the main instrument unit.
  10. Lift out the main instrument unit.
