To fit

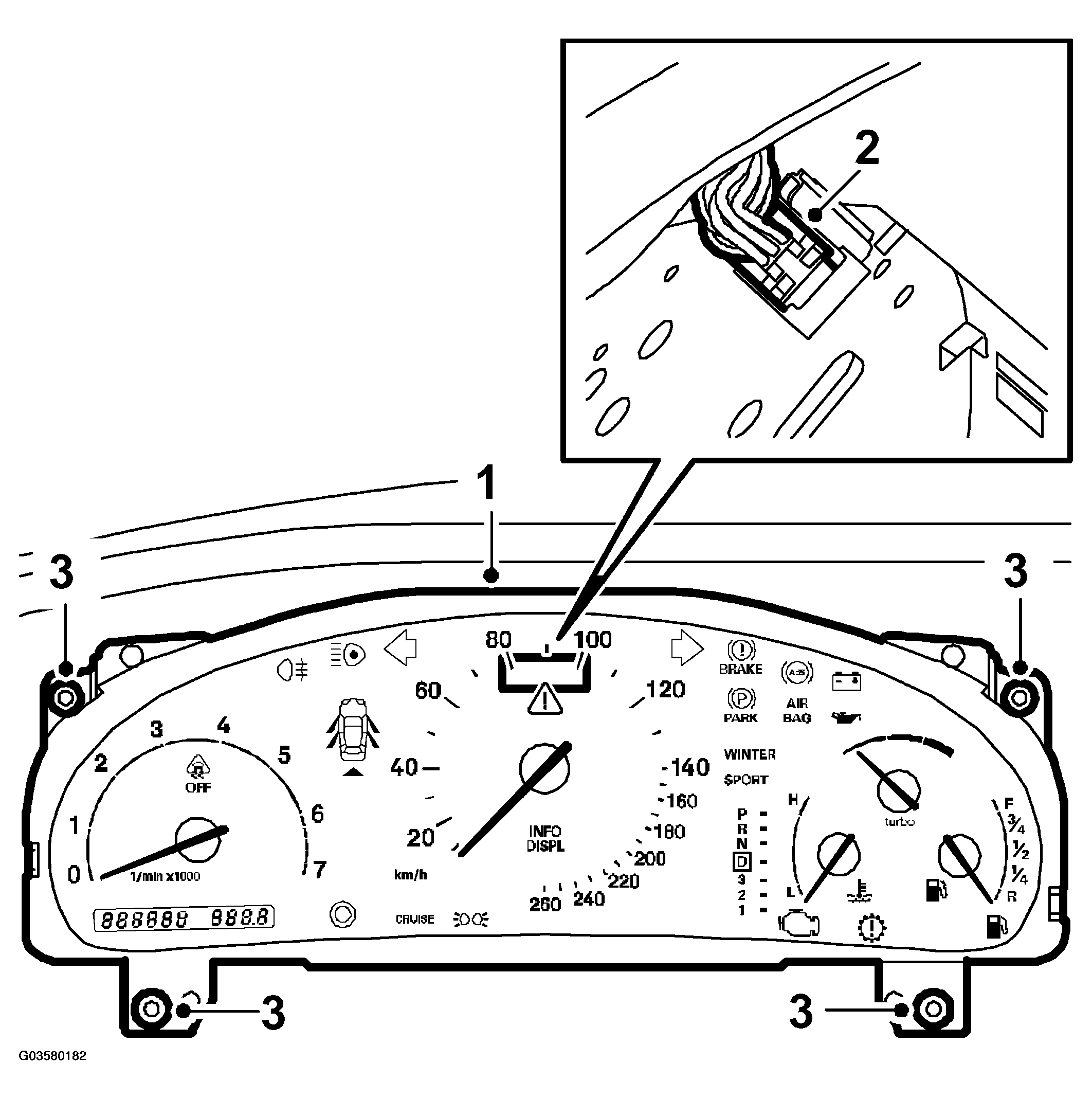

Fig 1: Illustration For Steps 1-3
G03580182Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Put the main instrument unit into position.
  2. Plug in the connector on the back of the main instrument unit.
  3. Fit the screws for the main instrument unit.
  4. Fit the instrument plate screws.

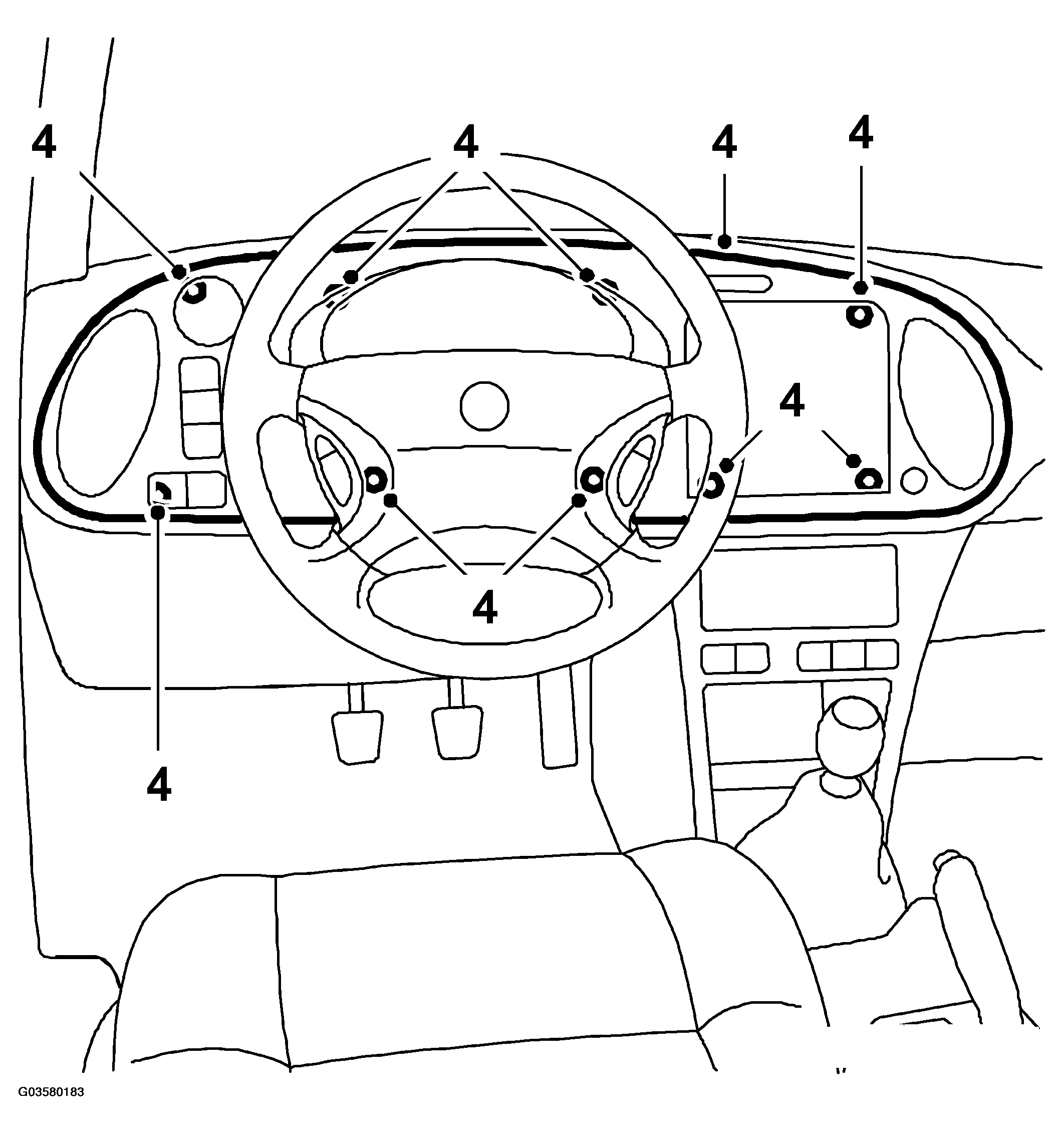

    Fig 2: Illustration For Step 4
    G03580183Courtesy of SAAB-SCANIA OF AMERICA, INC.
    NOTE: Carefully bring the instrument plate into position. It could easily be broken or bent out of shape.
  5. Fit the switches, shiny buttons and the seat-belt warning lamp.
  6. Fit the SID unit.

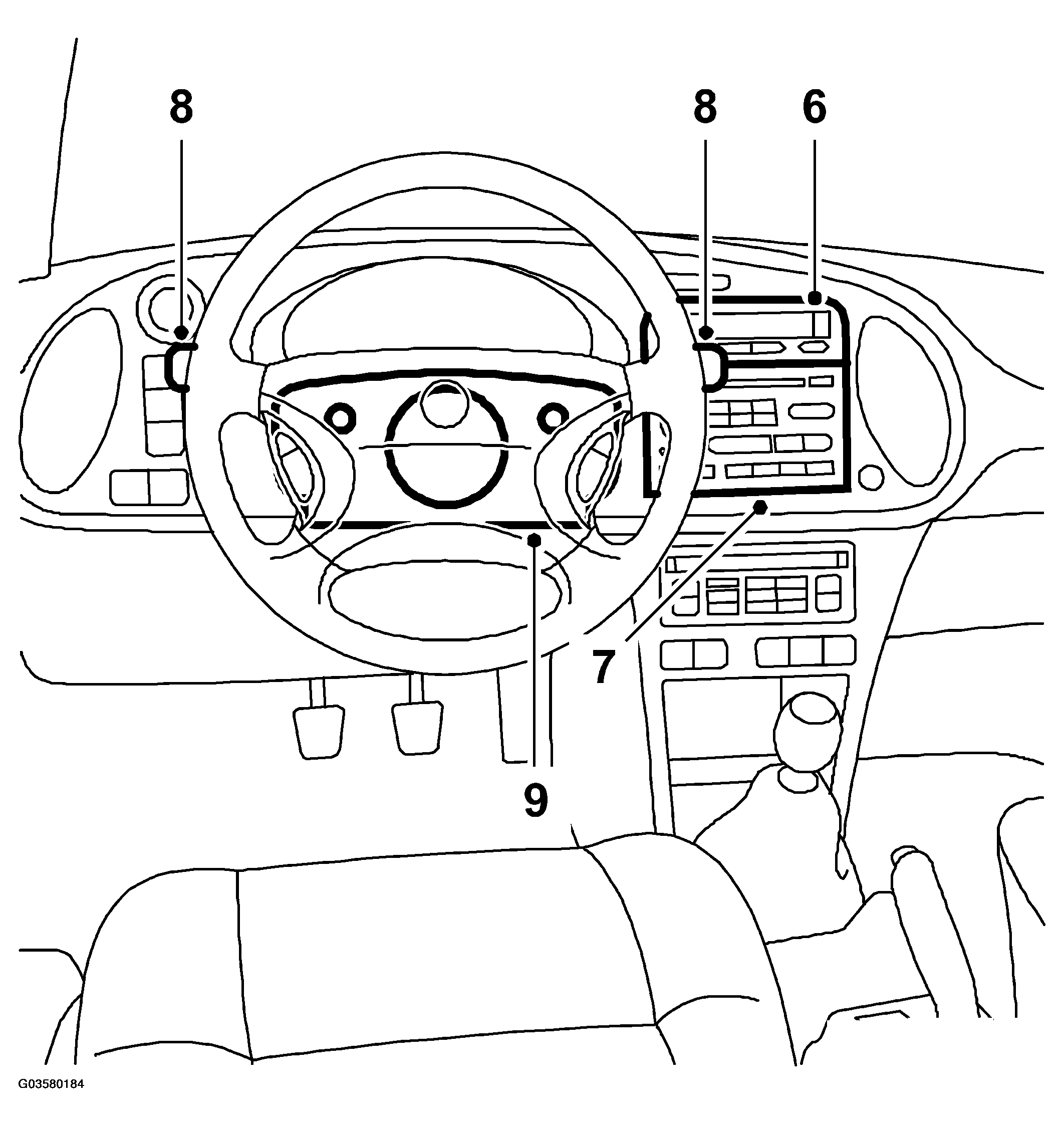

    Fig 3: Illustration For Steps 6-9
    G03580184Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fit the radio.
  8. Connect the switches for the direction indicators and windscreen wipers and fit the stalks.
  9. Fit the upper and lower steering column cowls.
    NOTE: Set the clock in SID.
  10. Spare parts programming must be carried out after changing the main instrument unit. Follow the instructions given in the "Programming" menu in the diagnostic tool.
