Adjusting Fuel Consumption Displayed In The SID

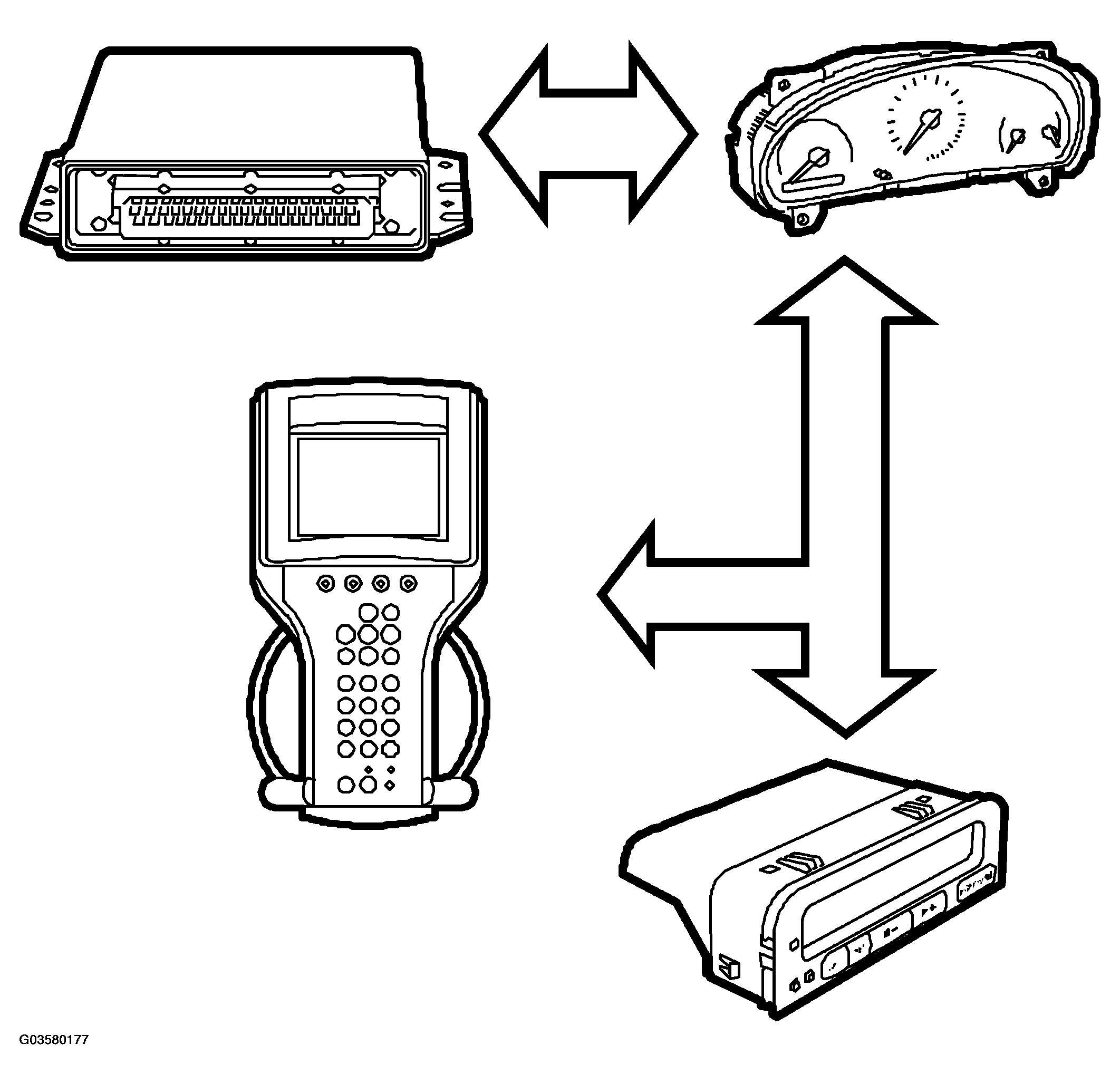

Fig 1: Communication Diagram - Adjusting Fuel Consumption Displayed In SID

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The fuel consumption value comes on the bus from Trionic. The main instrument unit reads this value and sends it on to the I-bus. This adjustment command can be used to change the value sent to the bus with a certain parameter. The main instrument unit corrects the value depending on this parameter. The value is adjusting in % and is always factory set to 0.
