Night panel

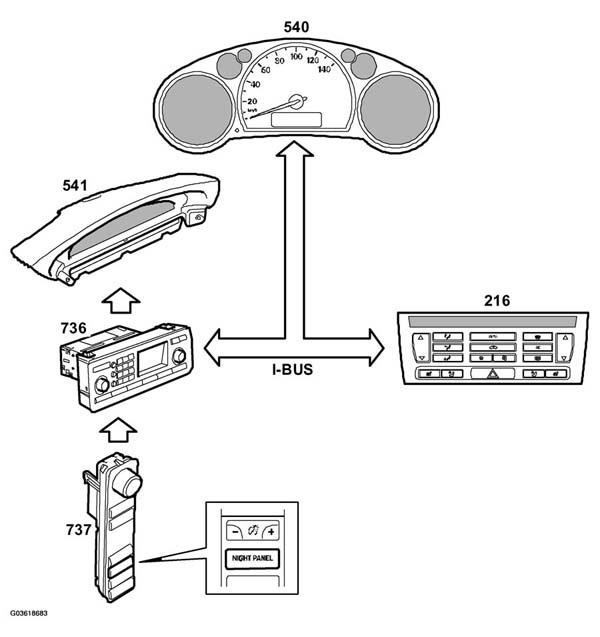

Extinguishes SID, ICM and main instrument unit displays except for the speedometer and reduces the brightness of the button illumination. See NIGHT PANEL . SIDC sends a 5V 960Hz PWM signal with pulse ratio 30% from pin 4 to ICM pin 14.
Extinguishes SID, ICM and main instrument unit displays except for the speedometer and reduces the brightness of the button illumination. See NIGHT PANEL . SIDC sends a 5V 960Hz PWM signal with pulse ratio 30% from pin 4 to ICM pin 14.
