CUSTOMIZE button

Customer settings are done using the CUSTOMIZE button. A number of different menu choices for navigation are shown when the CUSTOMIZE button is pressed. The number of menu choices depends on the equipment level of the car. The following choices may be available:

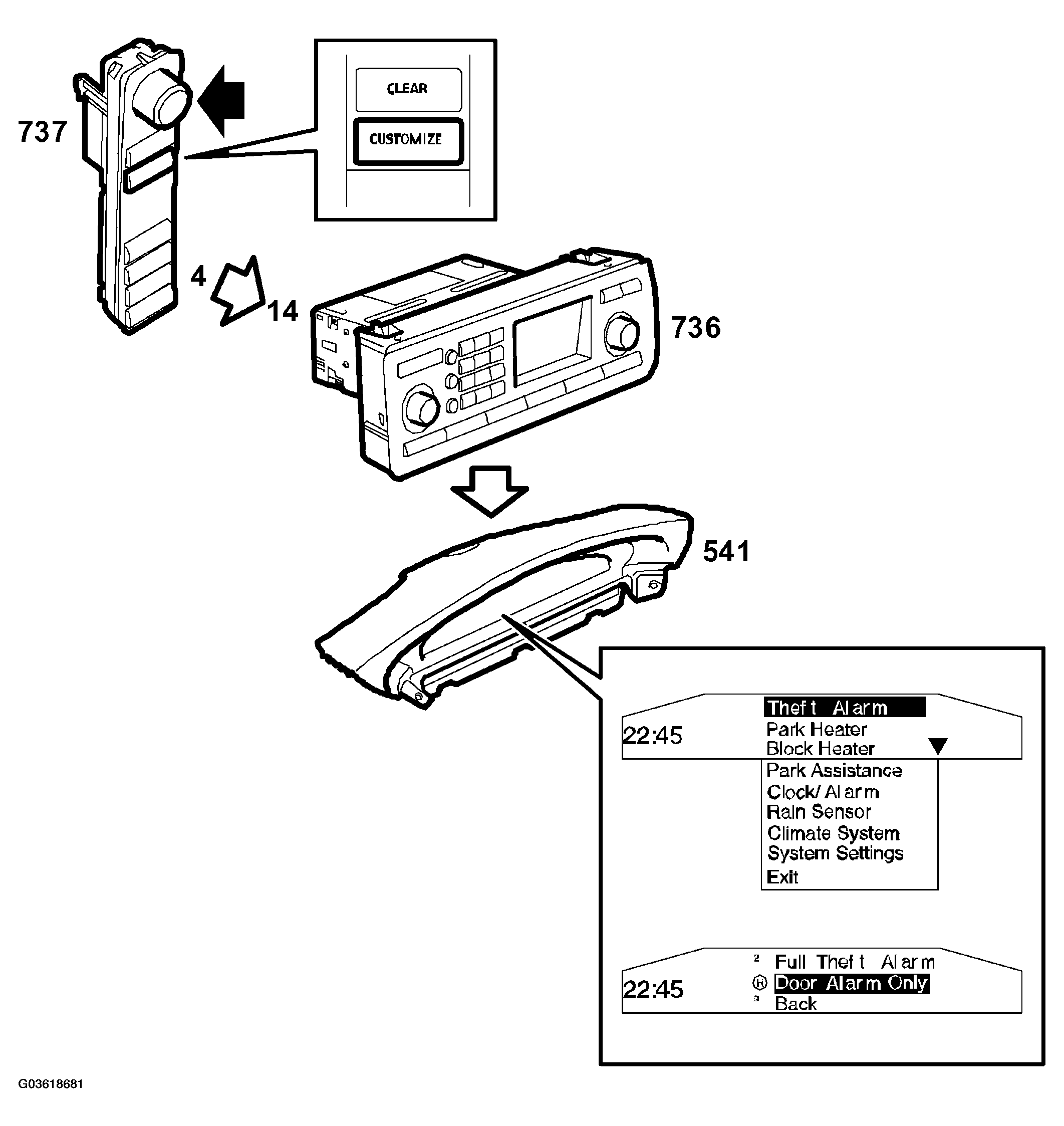

Fig 1: Identifying CUSTOMIZE Button

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Theft Alarm
• Park Heater
• Block Heater
• Park Assistance
• Clock/Alarm
• Rain Sensor
• Climate System
• System Settings
• Exit

Pressing the CUSTOMIZE button will make SIDC send a 5V 960Hz PWM signal with pulse ratio 70% on pin 4 to ICM pin 14.
