Functions in SIDC (SID control panel)

SIDC is used to

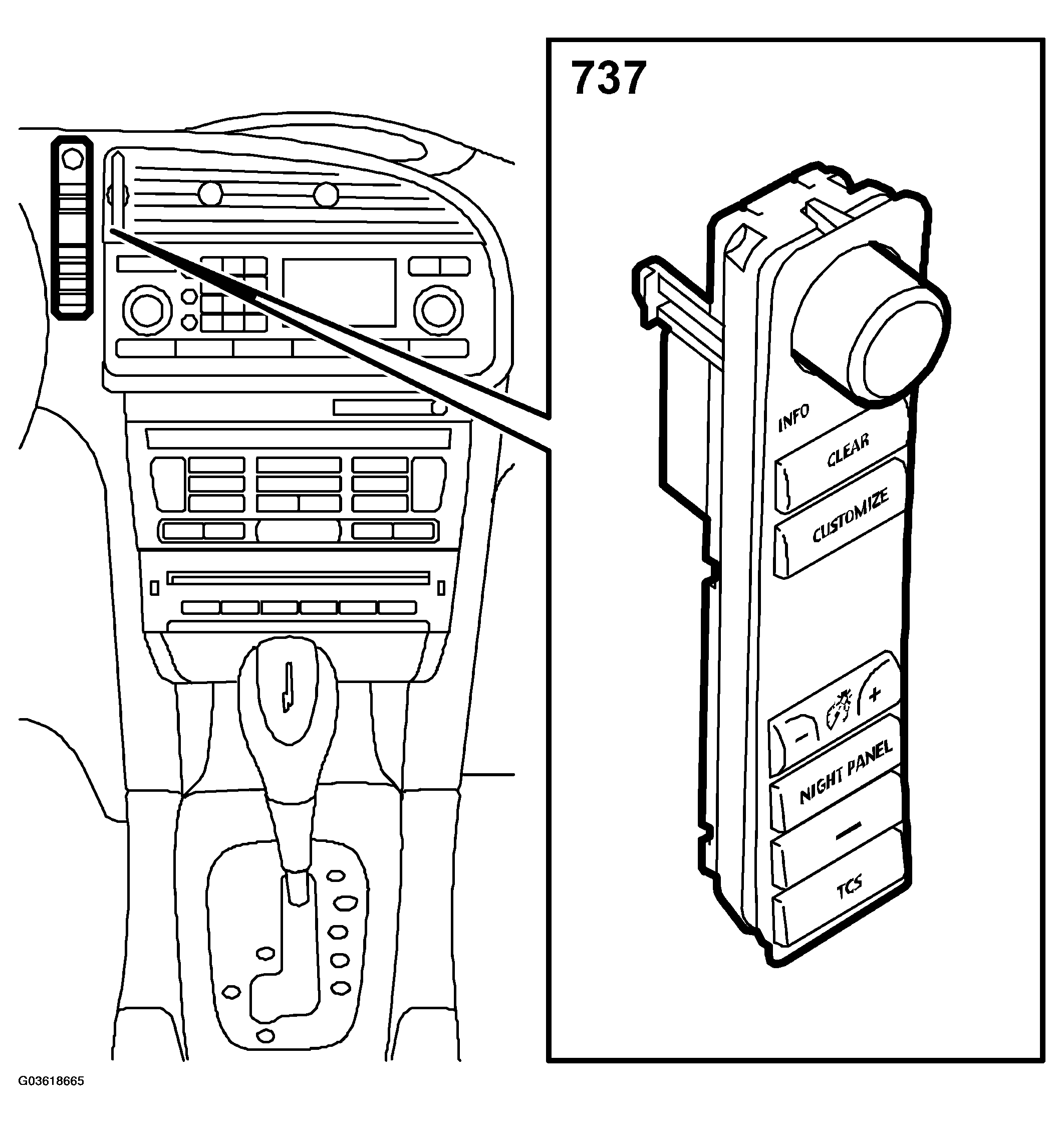

Fig 1: Identifying Functions In SIDC (SID Control Panel)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Adjust the brightness of the instrument illumination
• Switch between SID functions
• Adjust customer settings
• Turn on or off TCS or ESP function
• Turn on or off extra equipment
• Night Panel (extinguishes certain parts of instrument illumination)
• Clear (to clear a setting or message)
