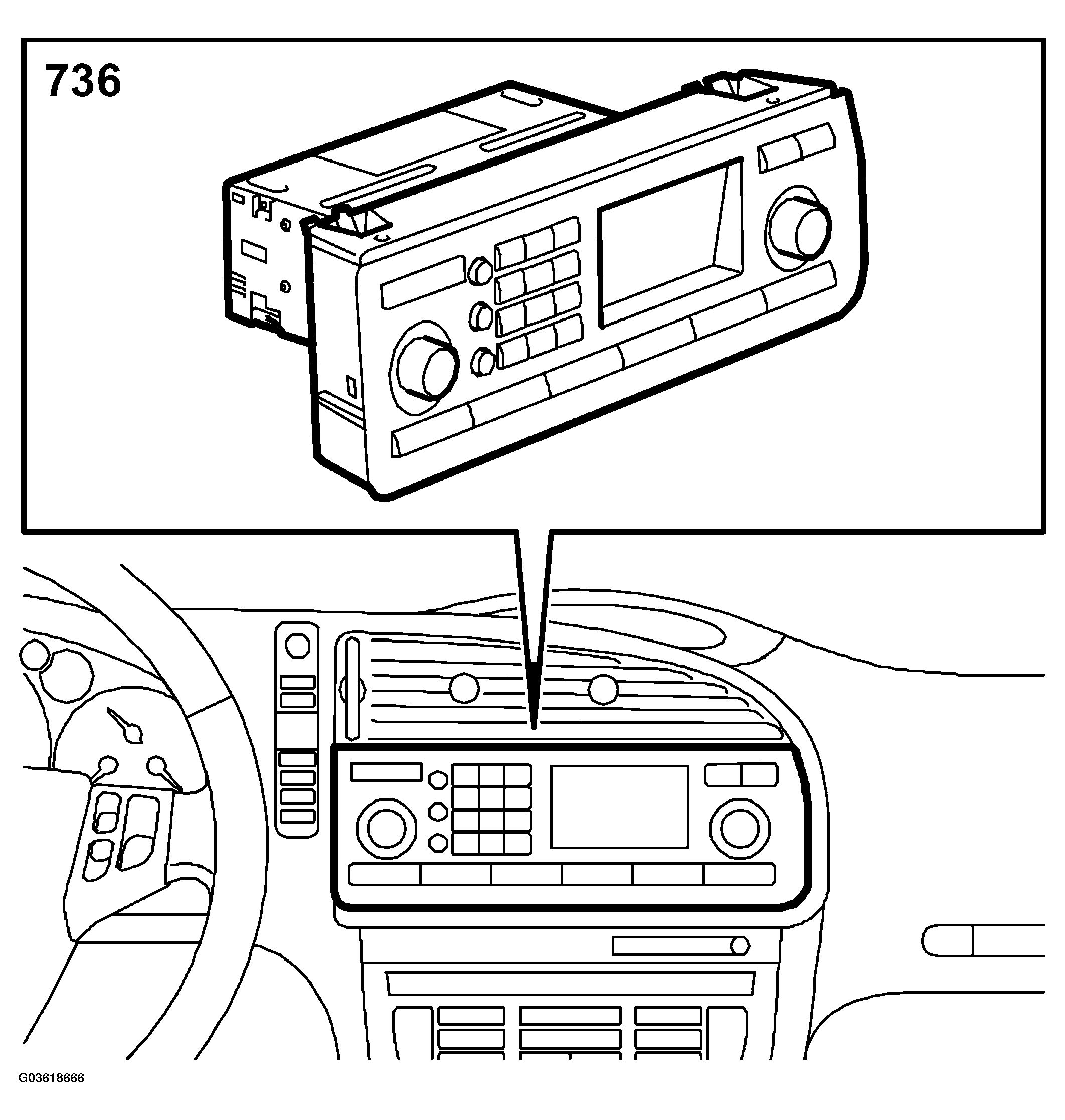

Functions in ICM (infotainment control panel)
ICM has a control panel for audio, telephone and navigation. ICM shares some logic functions with the head audio unit but is the overall control unit for navigation and communication.
ICM is the control unit for the O-bus (Optic bus), which means that it controls all the units on the O-bus and is the gateway between the O-bus and the electric buses (P and I-buses).
ICM is the control unit for SID and SIDC.
ICM controls mainly the following functions:
- Customer settings
- Service interval
- Instrument lighting
- Indicator sound
- Trip computer functions
- Warning and indicator messages, language and units.
