Warning and indicator lights

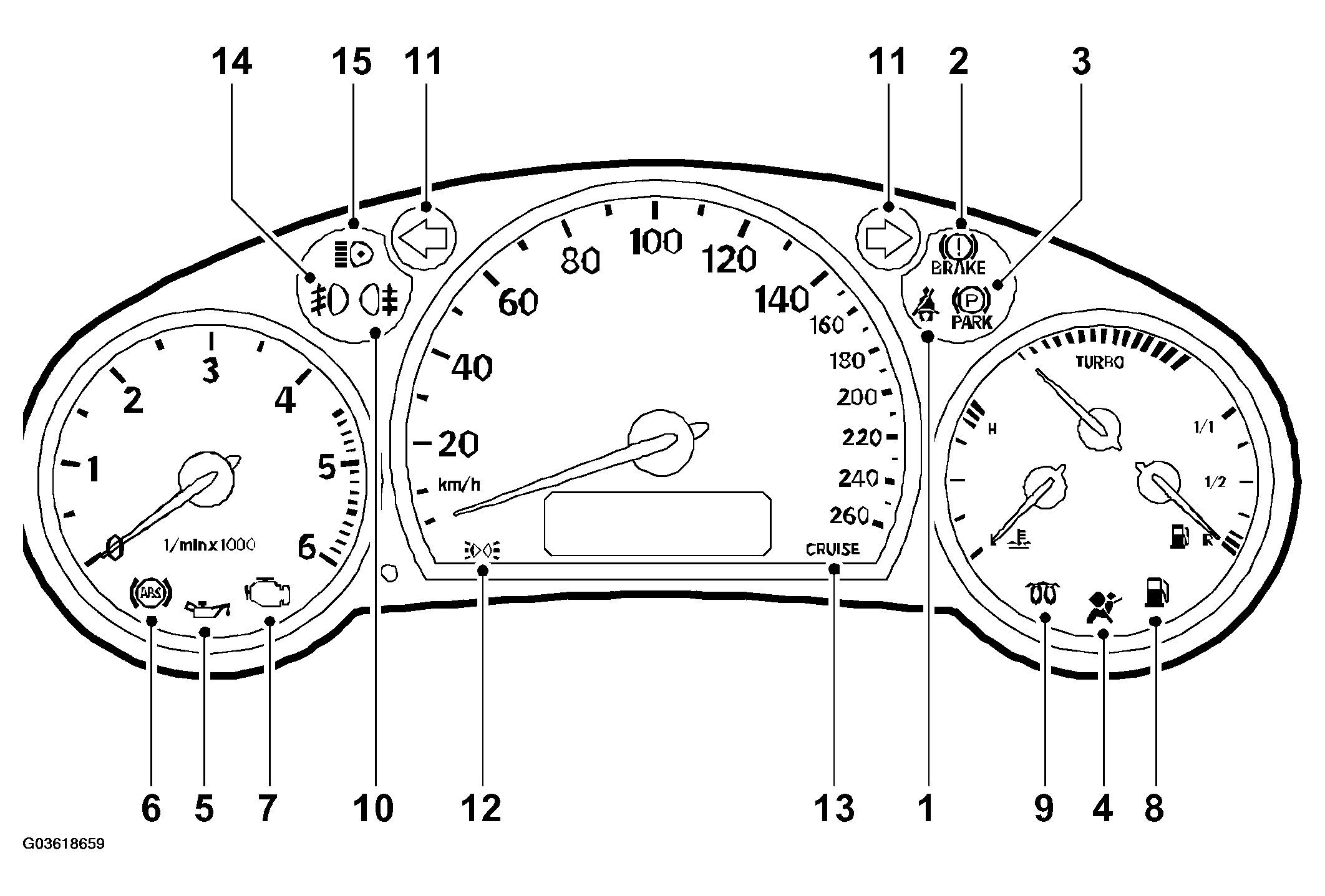

Fig 1: Identifying Warning And Indicator Lights

G03618659

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Warning and indicator lights in the main instrument unit.

Messages shown at the same time on SID.

WARNING AND INDICATOR LIGHTS SPECIFICATION

Pos. no.	Message	Type	Color	Shown on SID	Description
1	Seat belt	Warning	Red		Symbol lights up if driver not wearing seat belt.
2	Foot brake	Warning	Red	X	Symbol warns driver that brake fluid level is too low or of a fault in ABS system.
3	Handbrake	Warning	Red		Symbol lights up when handbrake is applied.
4	Airbag	Warning	Red	X	Symbol lights up or flashes when a fault occurs in airbag system.
5	Oil pressure	Warning	Red	X	Symbol lights up if engine oil pressure too low.
6	ABS, anti-lock brakes	Warning	Orange	X	Symbol lights up if a fault occurs in the ABS system.
7	Check engine	Warning	Orange	X	Check engine symbol lights up if an engine-related problem occurs. The engine control module turns on the lamp.
8	Quantity of fuel	Indicator	Orange		Symbol lights up when fuel quantity drops below 10 liters.
9	Glow plug	Indicator	Orange		Symbol lights up when ignition key turned to ON if engine coolant temperature below +5° C. Engine can be started when lamp extinguished. Applies only to cars with diesel engines.
10	Rear fog light	Indicator	Orange		Symbol lights up when rear fog light is on.
11	Direction indicators	Indicator	Green		Symbol for right or left-hand direction indicator flashes when direction indicator stalk moved for right or left-hand turn respectively.
12	Driving lights, parking lights	Indicator	Green		Symbol lights up when headlamps or parking lights are on.
13	Cruise control	Indicator	Green		Symbol lights up when cruise control is active.
14	Front fog lights	Indicator	Green		Symbol lights up when front fog lights are on.
15	Main beam	Indicator	Blue		Symbol lights up when main beam is on.
