Main instrument unit

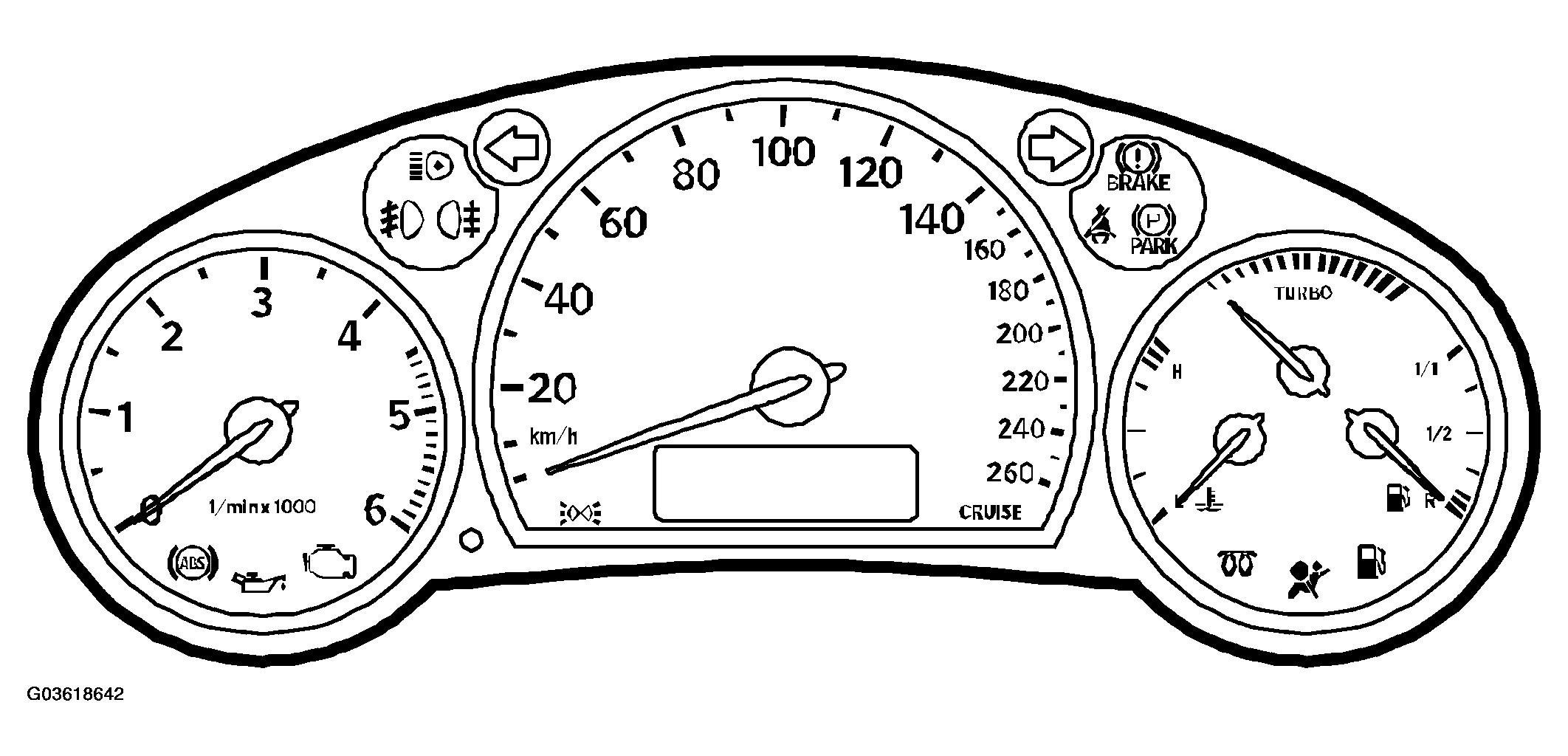

Fig 1: Identifying Main Instrument Unit
G03618642Courtesy of SAAB-SCANIA OF AMERICA, INC.
MAIN INSTRUMENT UNIT SPECIFICATION

Number of pins   12
Power supply +30 Pin no. 3
Power supply +15 Pin no. 2
Ground Pin no. 4
I-bus Pin no. 7
I-bus Pin no. 8
