ICM 3

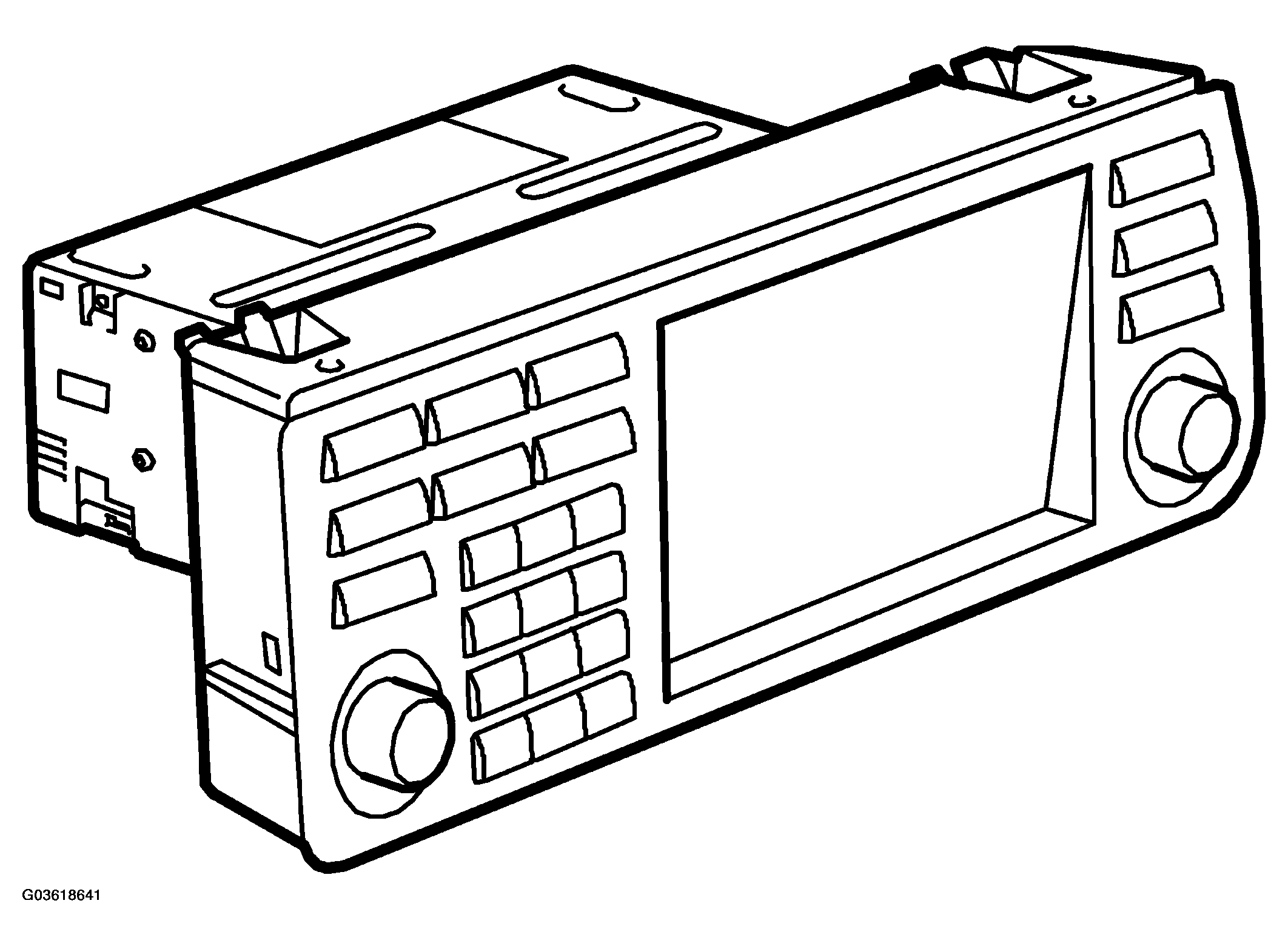

Fig 1: Identifying ICM 3 Control Panel Special Tools
G03618641Courtesy of SAAB-SCANIA OF AMERICA, INC.
SPECIAL TOOL - ICM CONTROL PANEL

Location   On the instrument panel next to main instrument unit
Number of pins   20
Power supply Pin no. 10
Ground Pin no. 20
