Warning lamp, foot brake, faulty function: Notes

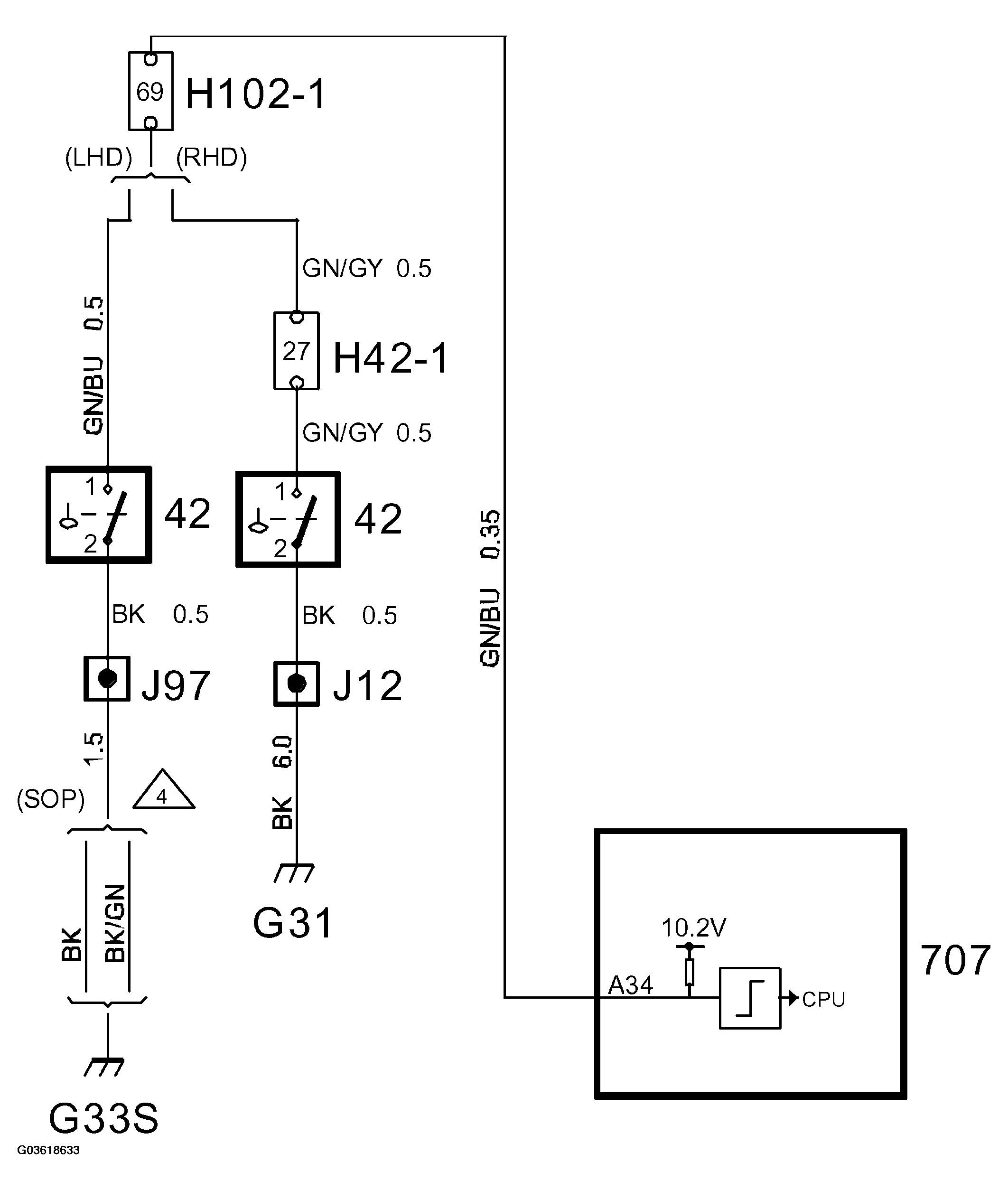

Fig 1: Warning Lamp, Foot Brake, Faulty Function Circuit Diagram

G03618633

Courtesy of SAAB-SCANIA OF AMERICA, INC.
