SID control panel (737): Location:

On instrument panel next to main instrument unit

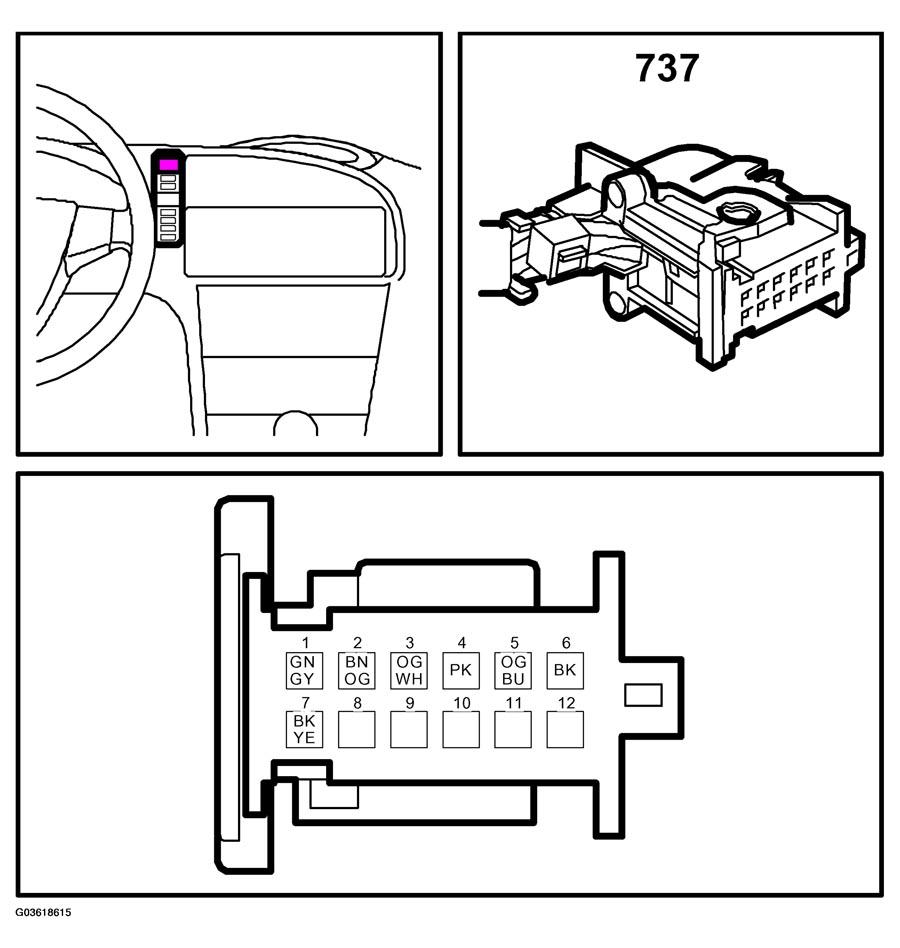

Fig 1: Identifying SID Control Panel (737) Connector

G03618615

Courtesy of SAAB-SCANIA OF AMERICA, INC.
