Instrument panel electrical center 22 (IPEC): Relays
The electrical center can be equipped with more relays than those that have a function according to the list below. They are not then generally connected to the car's wiring harness.

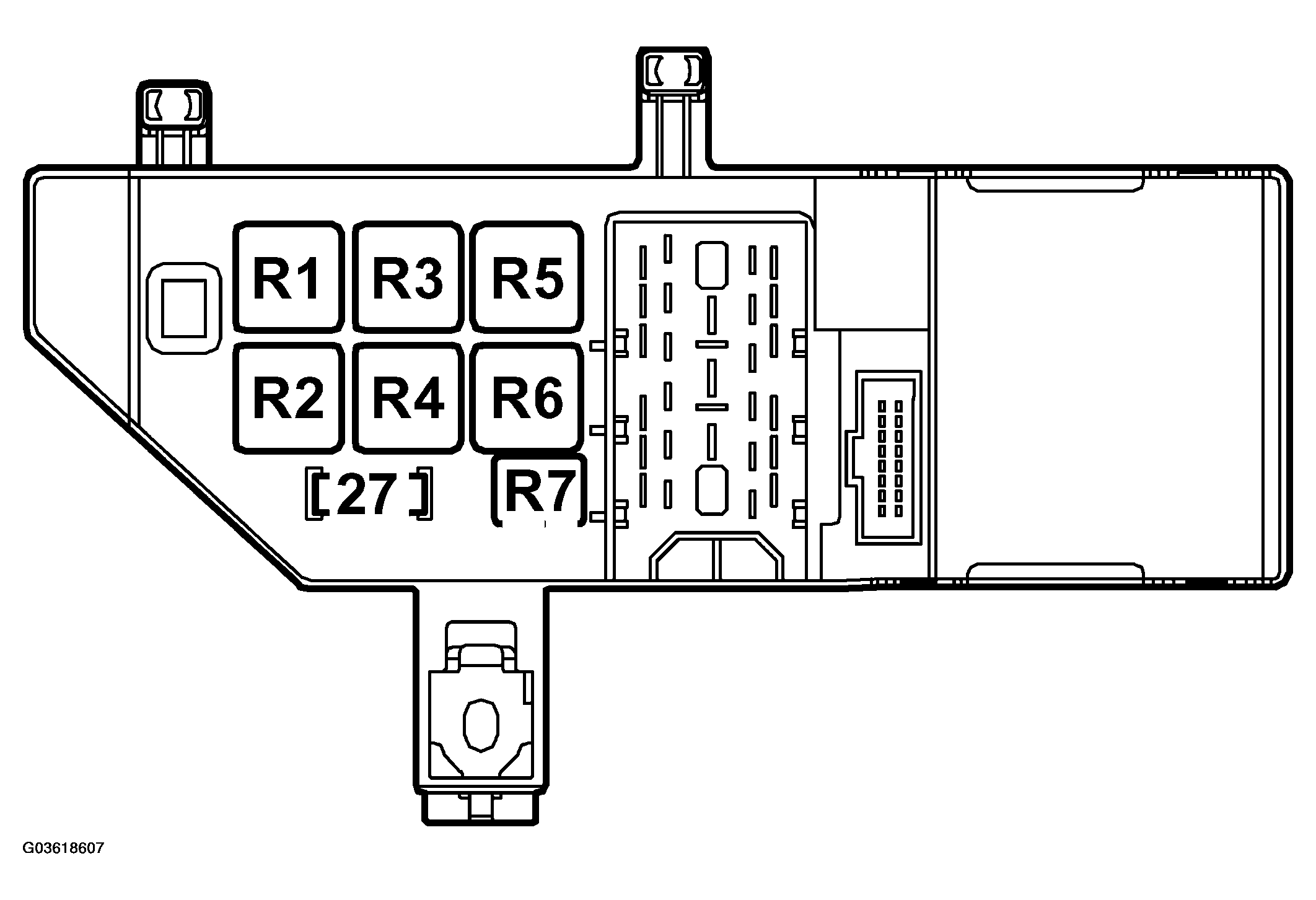

RELAY CHART
| Location | No. | Designation | Illus. | Diagram |
|---|---|---|---|---|
| R1 | 21 | Relay, +54 | ELECTRICAL COMPONENT LOCATOR | ELECTRICAL COMPONENT LOCATOR |
| R2 | 757C | Relay, +15, IPEC | ELECTRICAL COMPONENT LOCATOR | ELECTRICAL COMPONENT LOCATOR |
| R3 | - | |||
| R4 | - | |||
| R5 | - | |||
| R6 | 756 | Relay, accessories | ELECTRICAL COMPONENT LOCATOR | |
| R7 | - | |||
| Soldered circuit board | 717 | Interior lighting relay | ELECTRICAL COMPONENT LOCATOR | -Rev.3 Rev.3- |
