Instrument panel electrical center 22 (IPEC): Connection

The 16 pin connector from the BCM 707 control module is connected directly to the electrical center.

The electrical center is fed with +30 voltage from the engine bay electrical center 342 and is connected to the dashboard harness via a 42 pin connector.

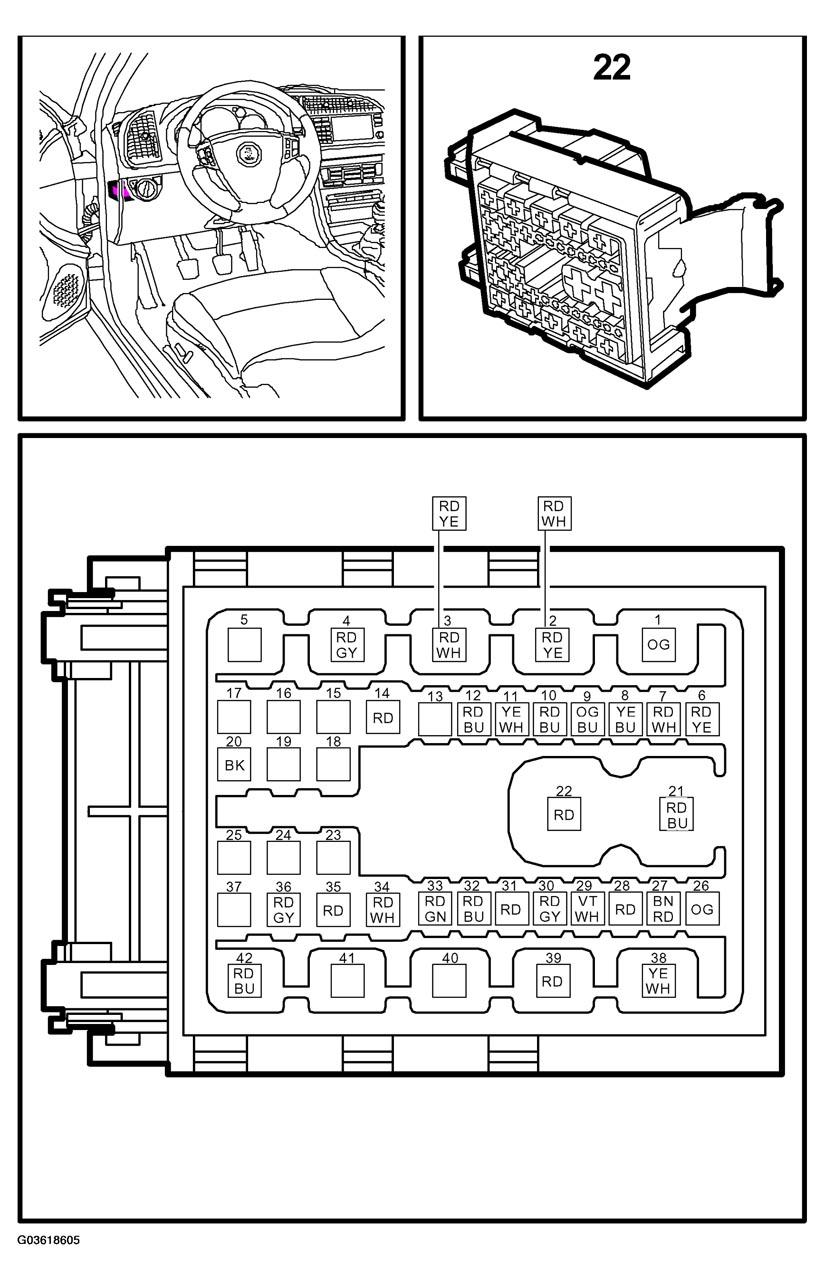

Fig 1: Identifying Instrument Panel Electrical Centre 22 (IPEC)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The following current circuits are distributed by the electrical center:

1. Power supply +30, dashboard's electrical center
2. Power supply +15, dashboard's electrical center
3. Power supply +54
