Connected components
COMPONENTS CHART

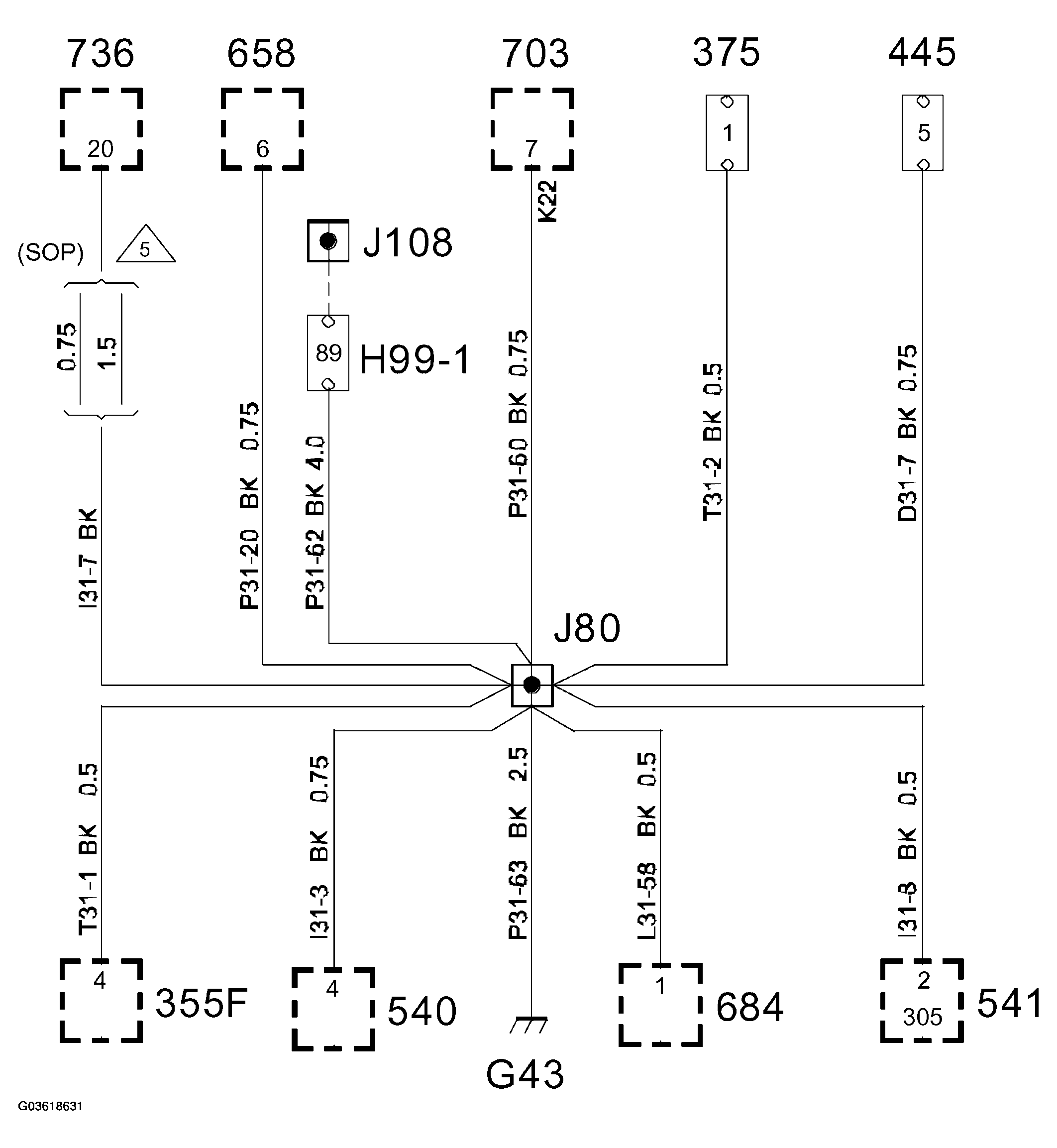

| Via CRIMP J80, INSTRUMENT HARNESS | |
| 305 | LED, anti-theft alarm |
| 355F | CD player/changer, front |
| 375 | Connection, mobile telephone |
| 445 | 16-pin Data link connector, CARB |
| 540 | Main instrument unit |
| 541 | SID |
| 658 | Yaw sensor |
| 684 | Light switch module |
| 703 | Steering column unit |
| 736 | Infotainment control panel |

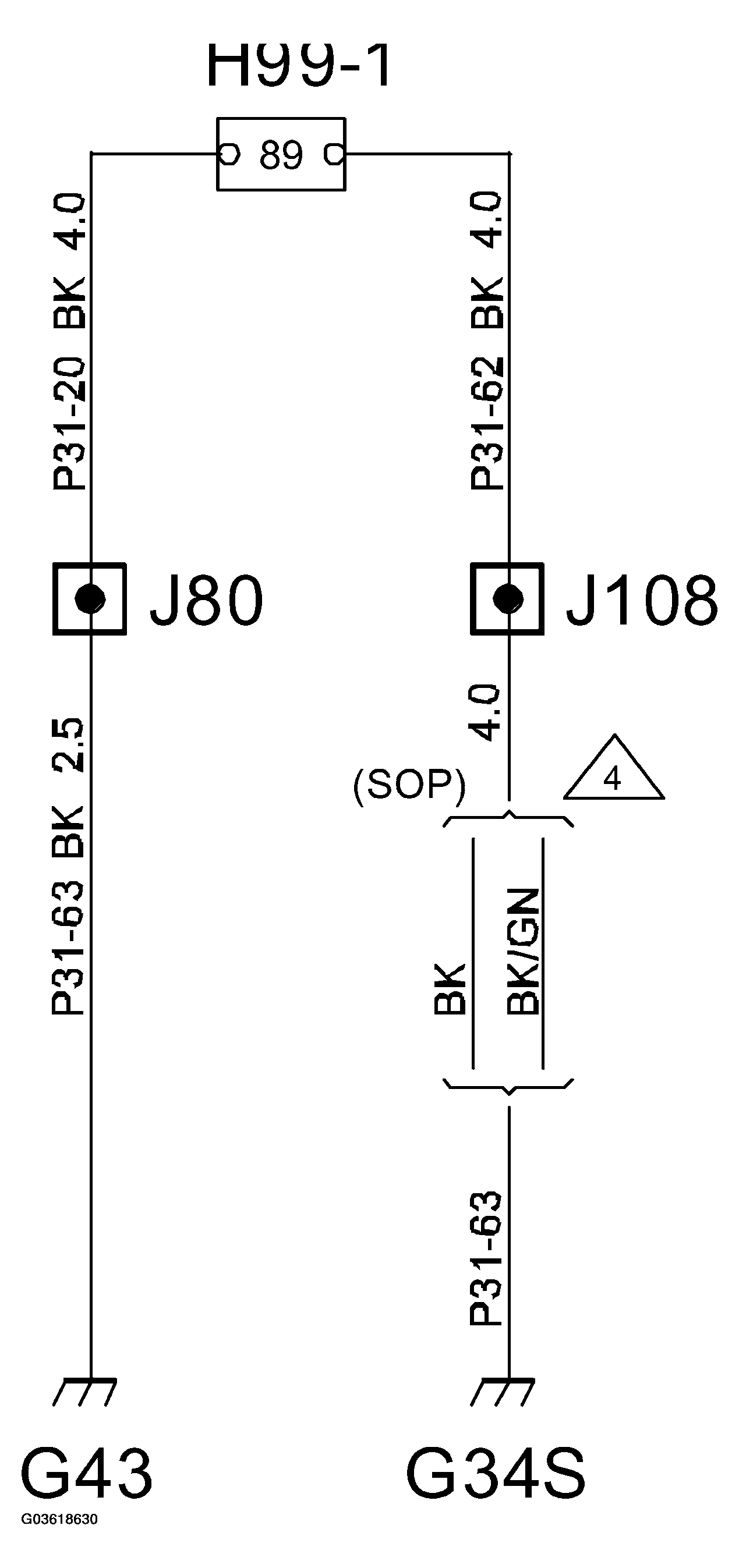

Crimp J80
