Connected components

COMPONENTS CHART

	CRIMP J108, MAIN WIRING HARNESS
102	Relay, fuel pump
323	Motor, fuel pump
323a	Motor, fuel pump, supplementary heater
702FR	Control module, RH front door
702RR	Control module, rear door, RH
	Via Crimp J135, door wiring harness, inner which is in contact with crimp J108 from Rev.5 inclusive
209F	Lamp, front right door courtesy lighting
388	Switch, boot lid (RHD)
514FR	Switch, simultaneous central locking, front right door

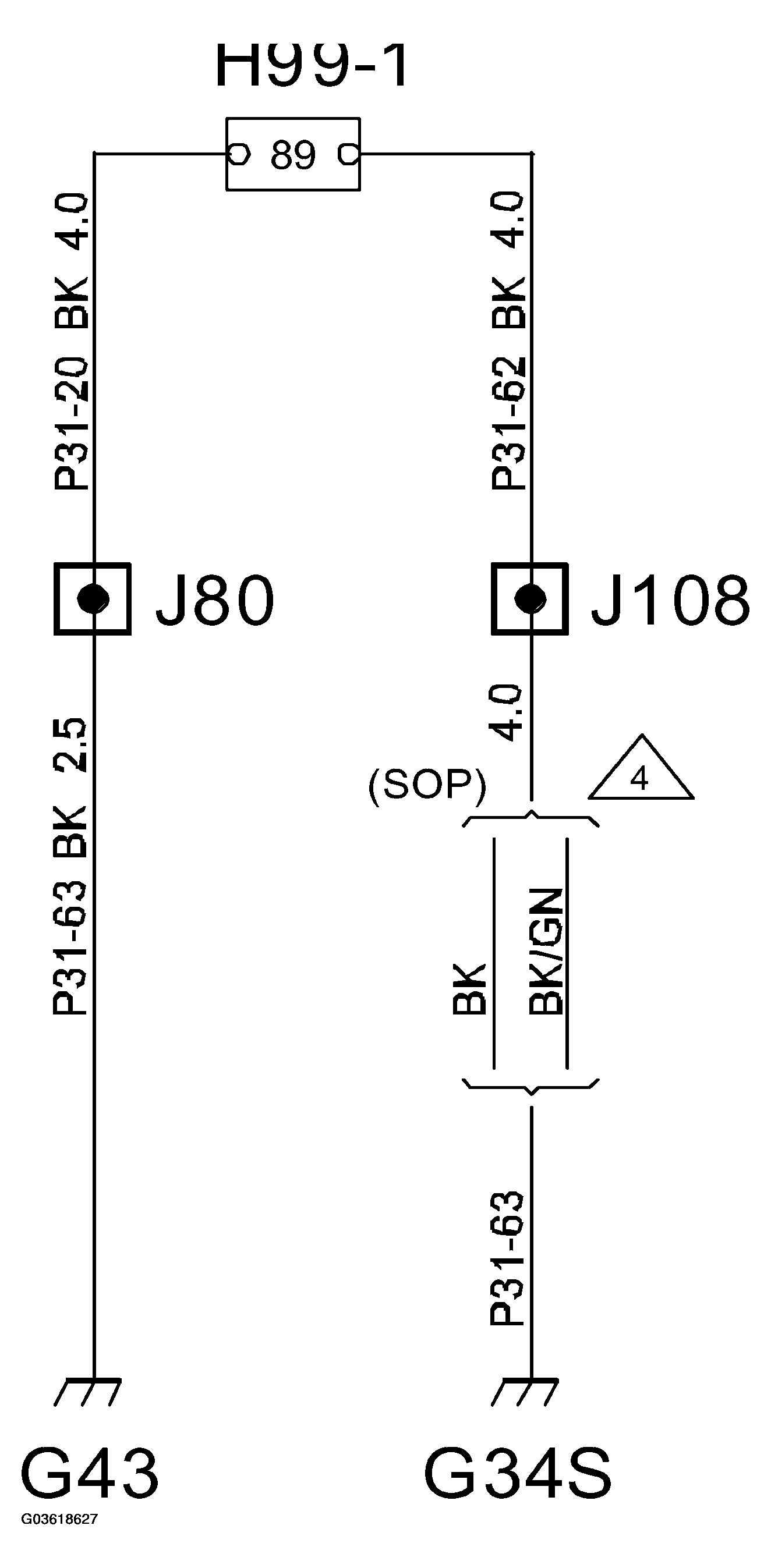

Fig 1: Grounding Point G34S Circuit Diagram

G03618627

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Crimp J108

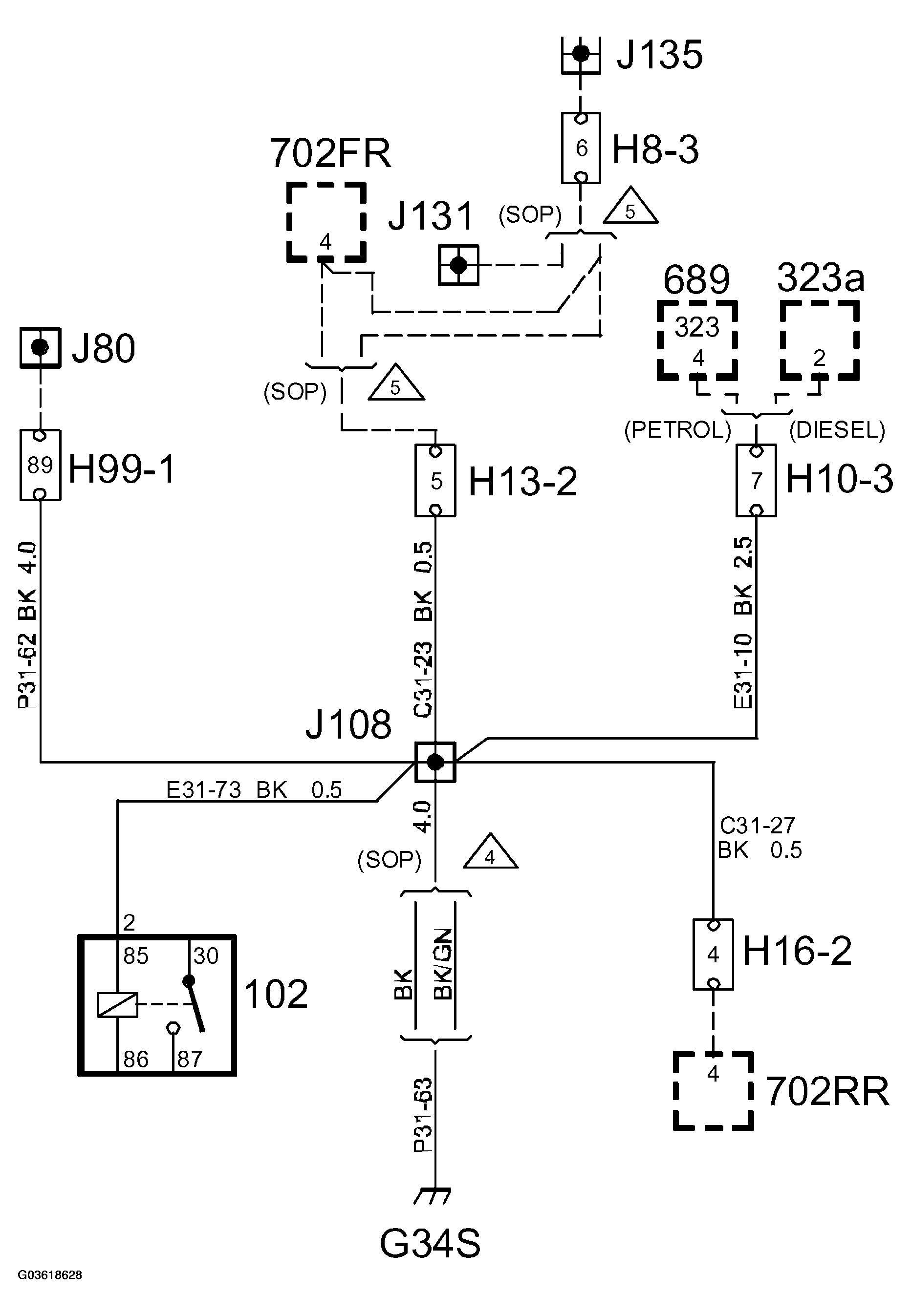

Fig 2: Crimp J108 Circuit Diagram

G03618628

Courtesy of SAAB-SCANIA OF AMERICA, INC.
