Crimp connection J71, dashboard harness: Location:

LHD:  Approx. 100 mm from branching point column integration module to grounding point G41

RHD:  Approximately 50 mm from grounding point G43 branching point towards the radio

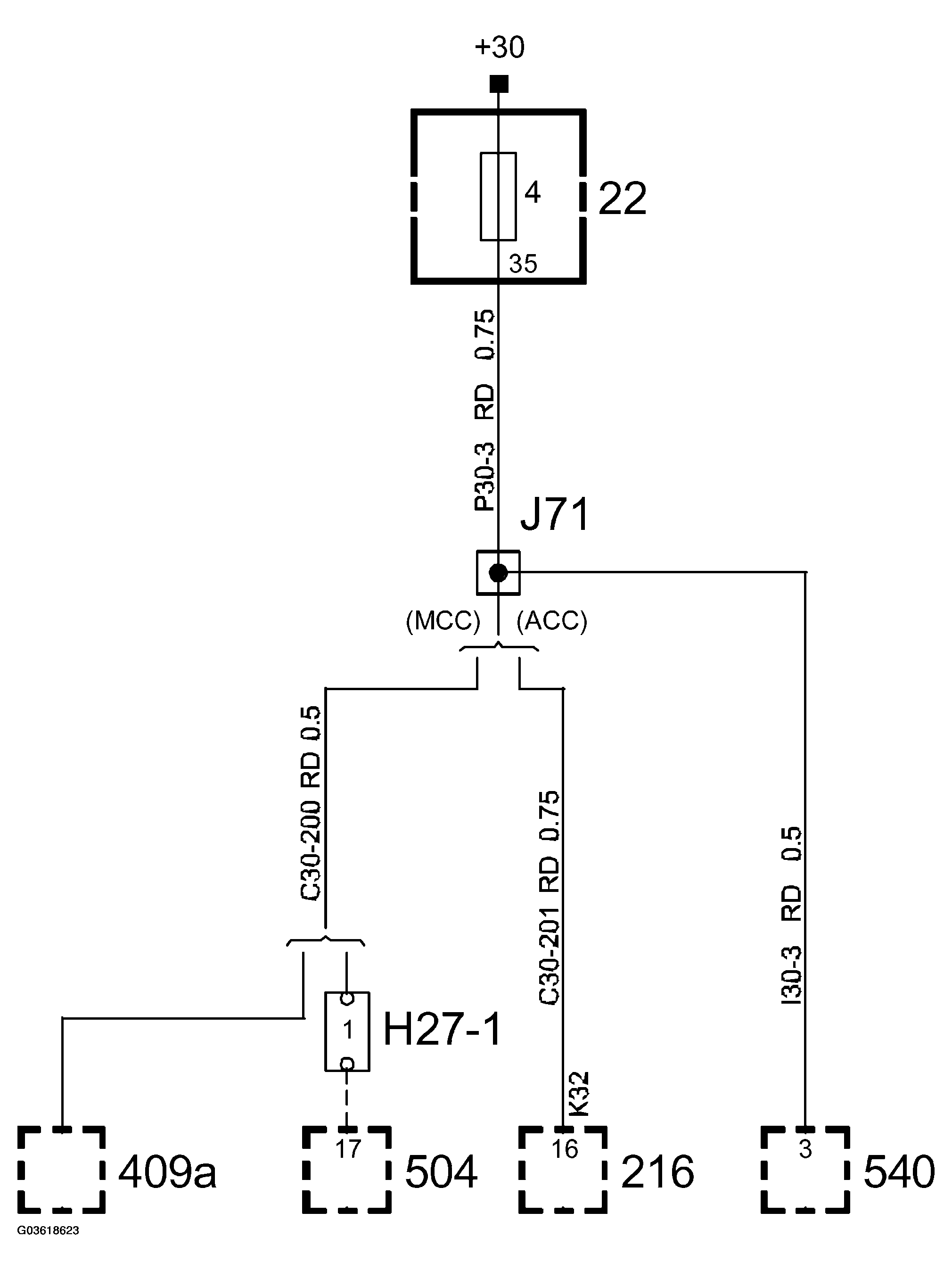

Fig 1: Crimp Connection J71, Dashboard Harness Circuit Diagram
G03618623Courtesy of SAAB-SCANIA OF AMERICA, INC.
