Check Engine lamp, faulty function: Notes

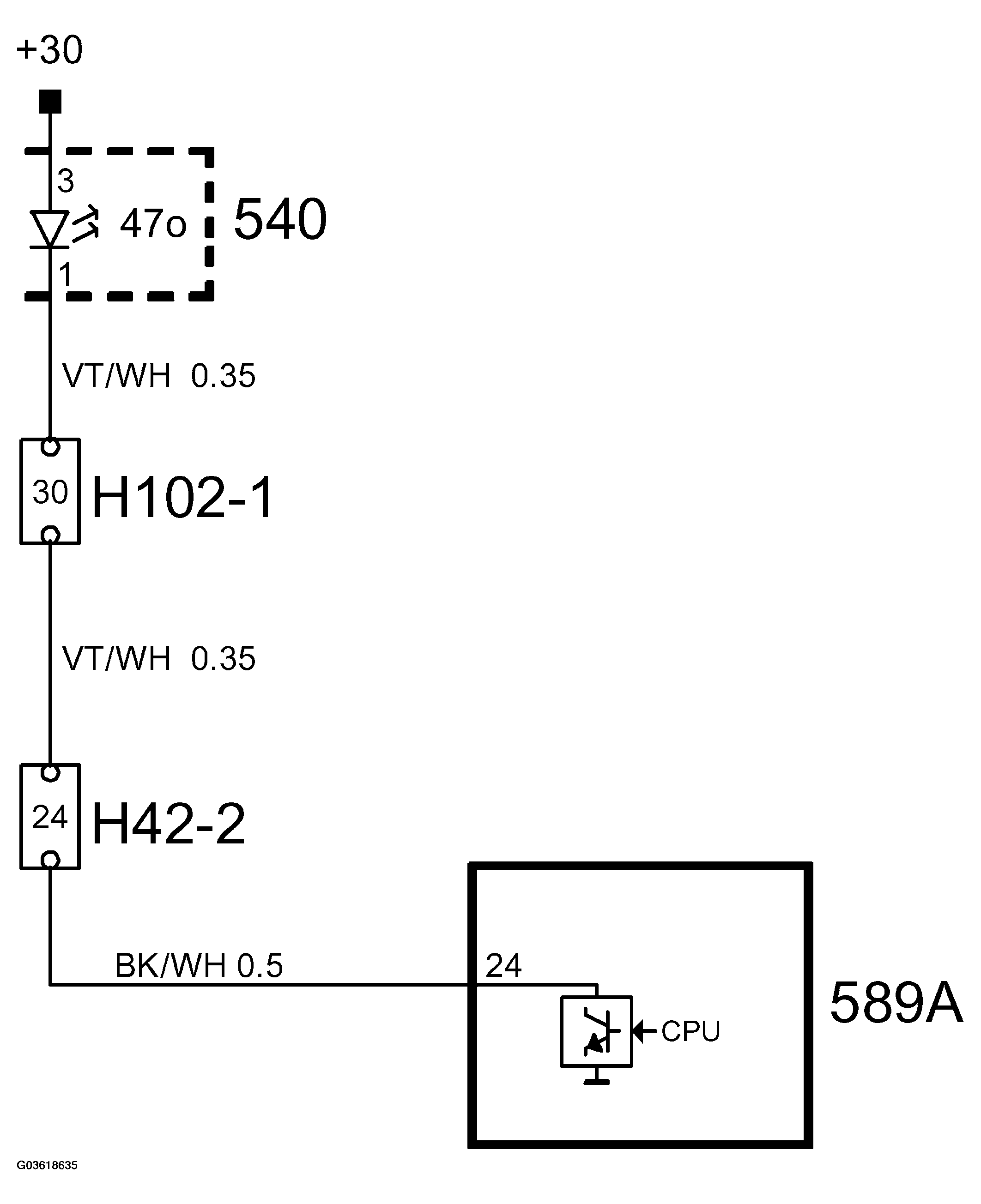

Fig 1: Check Engine Lamp, Faulty Function Circuit Diagram

G03618635

Courtesy of SAAB-SCANIA OF AMERICA, INC.
