Body Control Module (707): Location:

in the dashboard electrical distribution unit

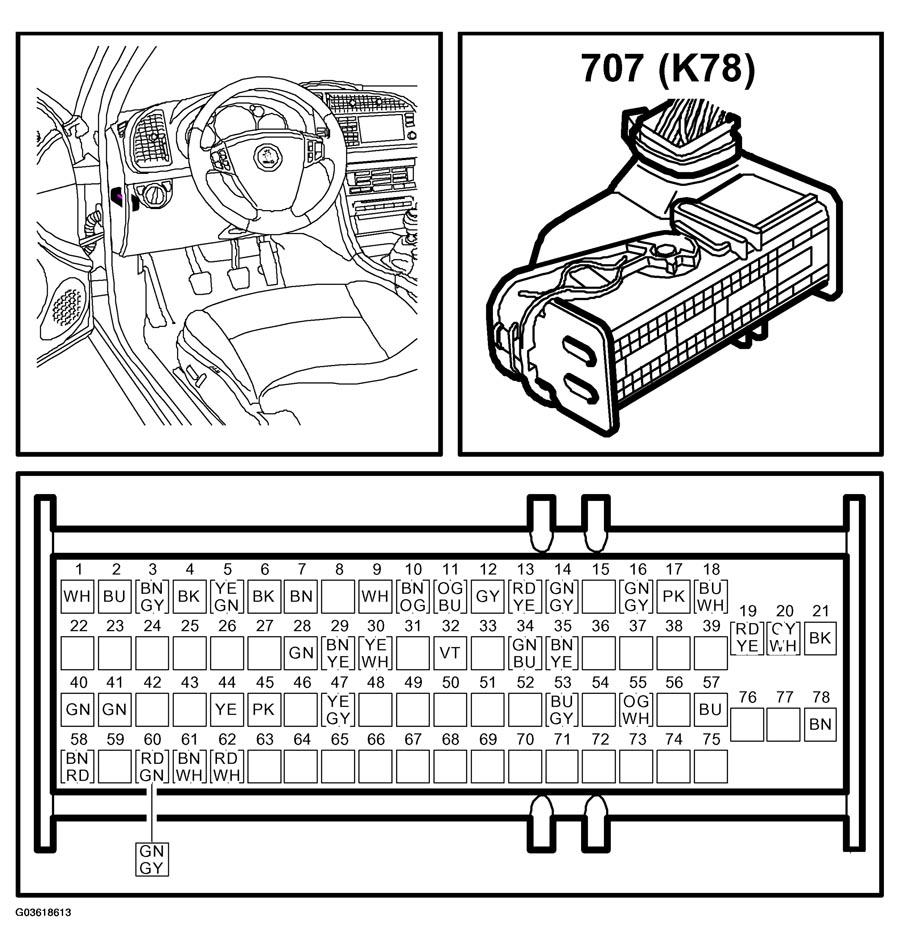

Fig 1: Identifying Body Control Module (707) Connector

G03618613

Courtesy of SAAB-SCANIA OF AMERICA, INC.
