Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Driver Info, Main Instrument Panel, SID (Late; 9440) >> Adjustment/Replacement >> Temperature sensor, outdoor air >> To remove

To remove

  1. Press in the lugs and detach the sensor from the bumper shell.

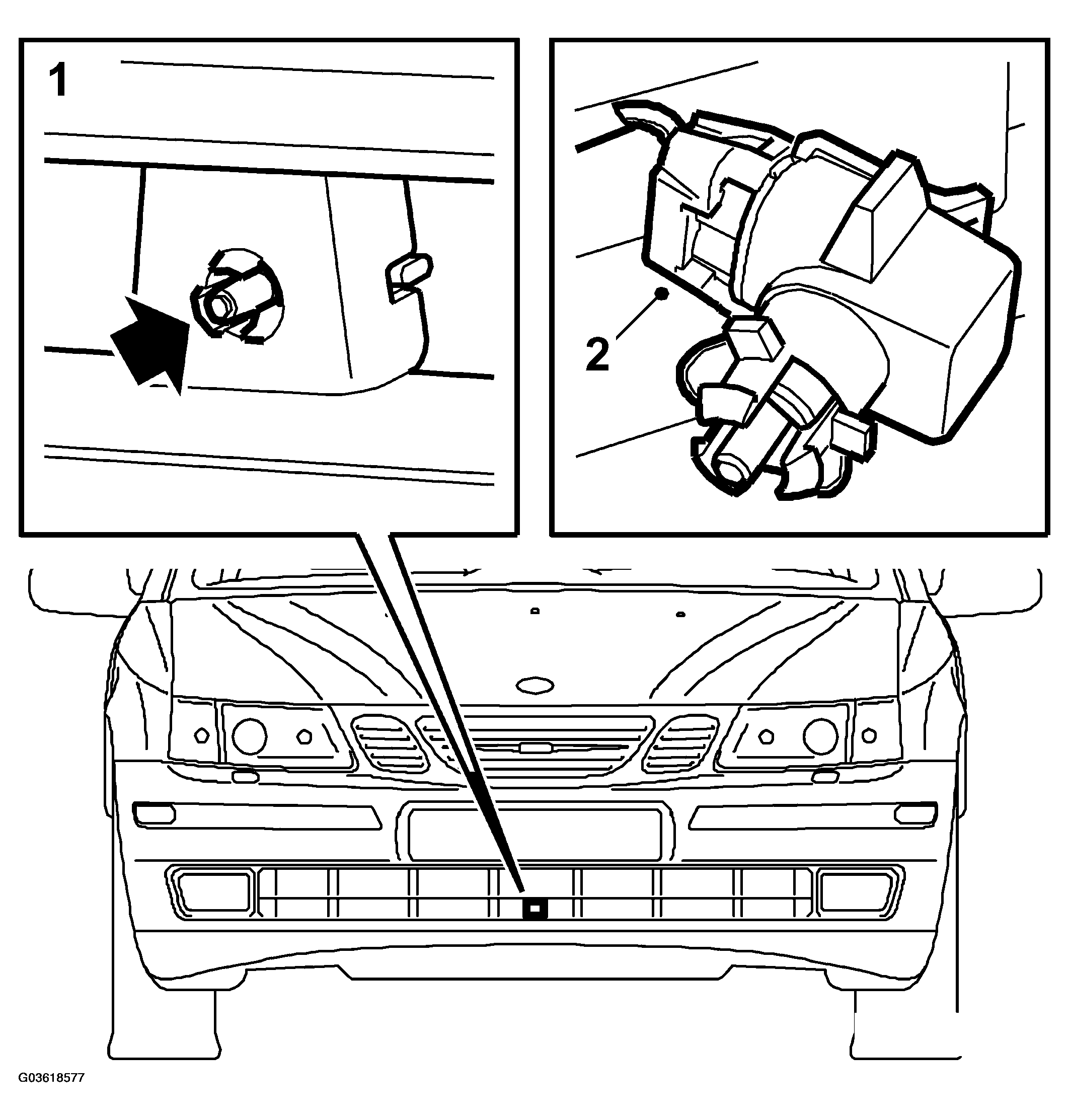

    Fig 1: Illustration For Steps 1-2
    G03618577Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Pull the sensor out of the bumper shell and unplug the connector.
