Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Driver Info, Main Instrument Panel, SID (Late; 9440) >> Adjustment/Replacement >> Solar sensor >> To remove

To remove

  1. Remove the speaker grille.

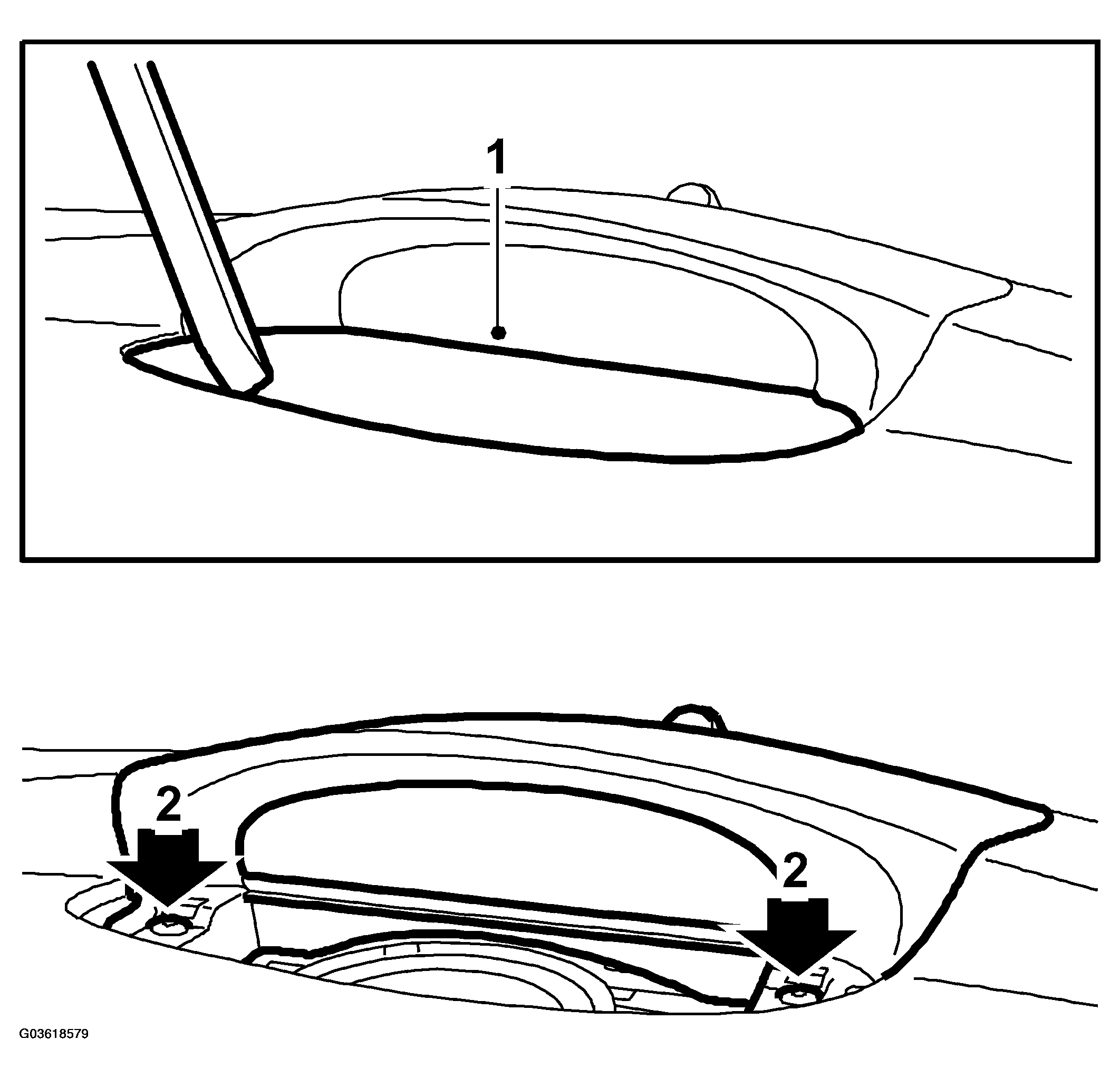

    Fig 1: Illustration For Steps 1-2
    G03618579Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the screws.
  3. Lift out the SID unit and unplug the connector.

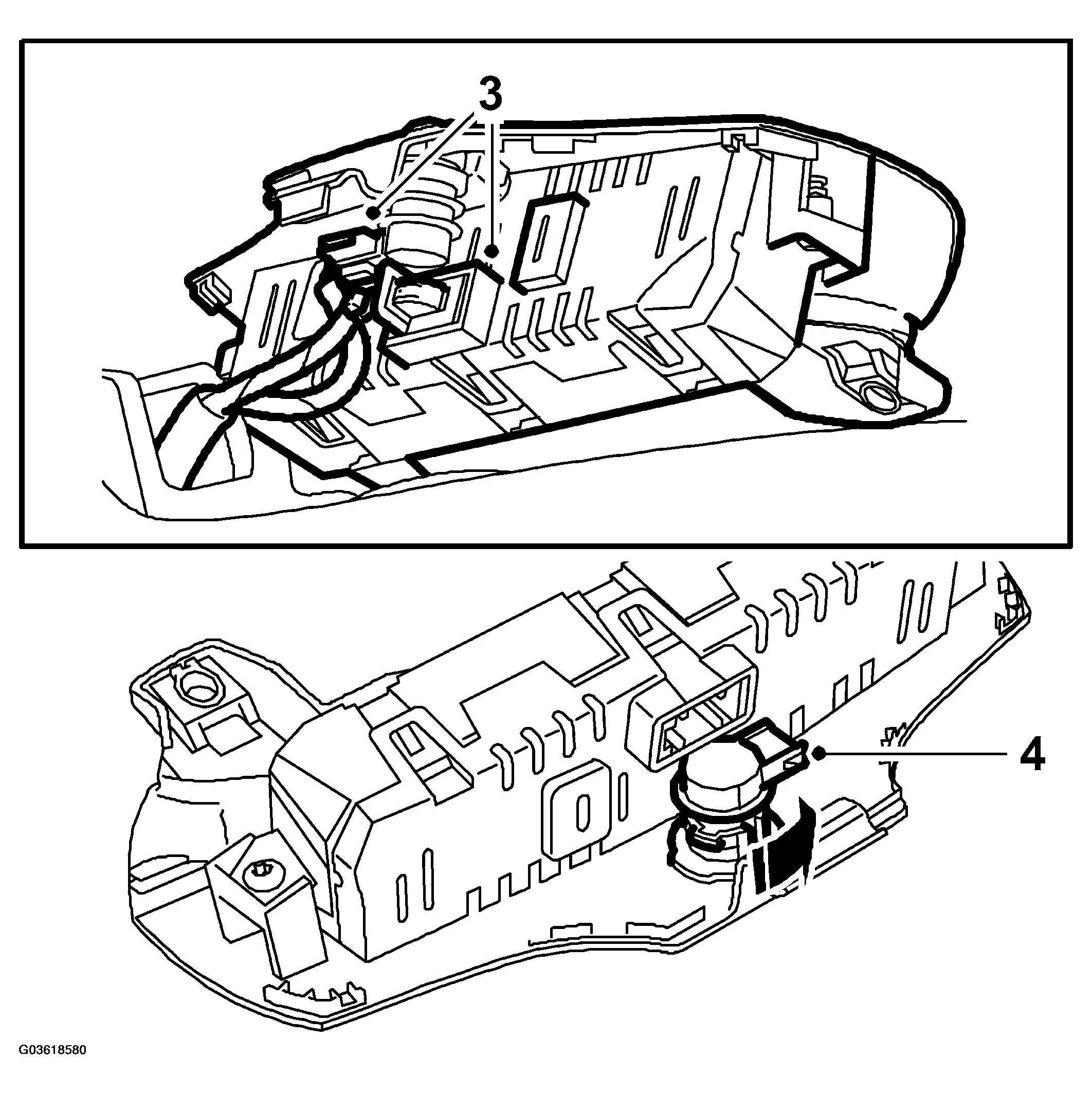

    Fig 2: Illustration For Steps 3-4
    G03618580Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the solar sensor from the cover.
