To fit

  1. Fit the solar sensor to the cover.

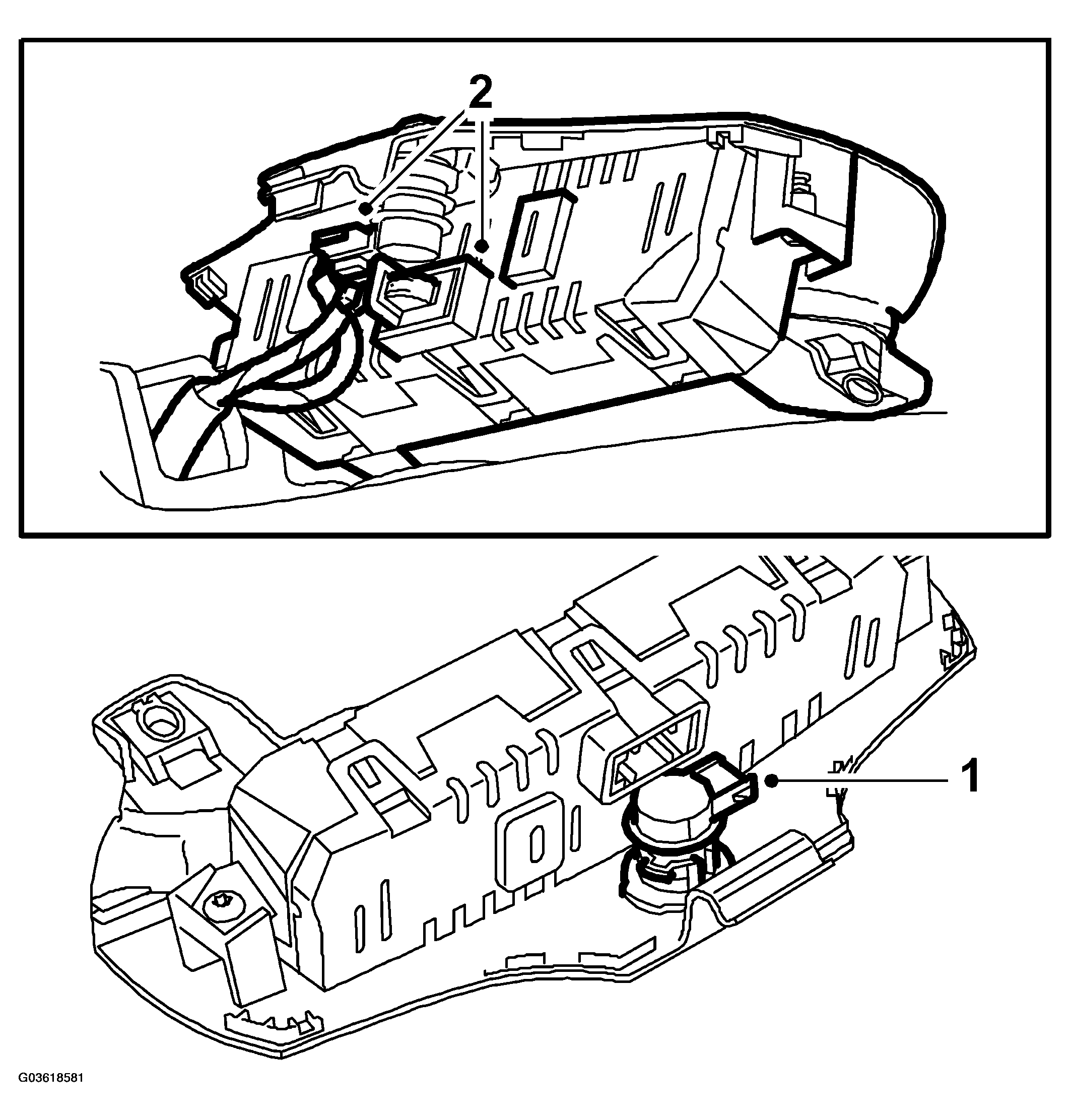

    Fig 1: Illustration For Steps 1-2
    G03618581Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
  3. Fit the SID unit.

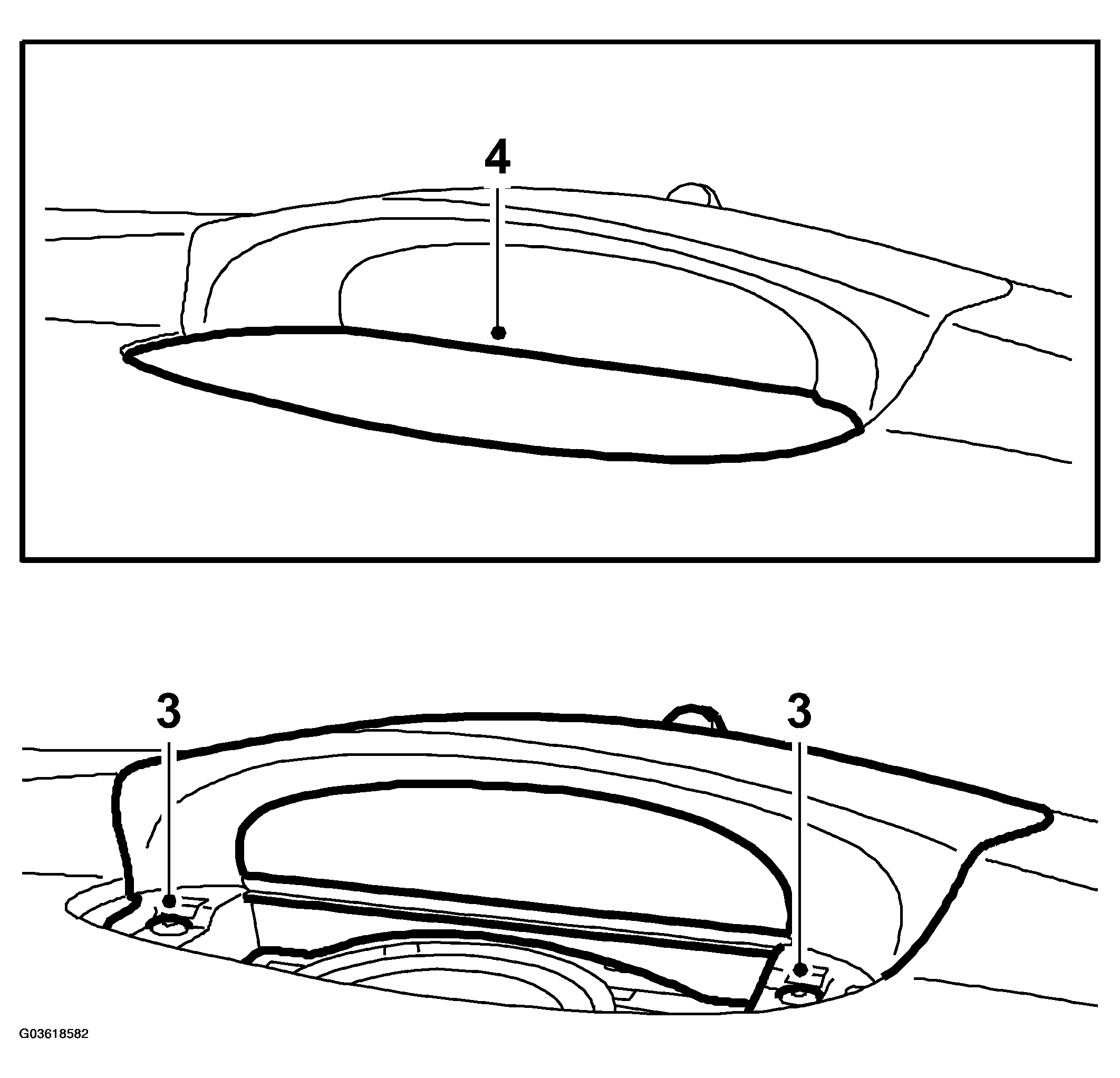

    Fig 2: Illustration For Steps 3-4
    G03618582Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the speaker grille.
