Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Driver Info, Main Instrument Panel, SID (Late; 9440) >> Adjustment/Replacement >> SID >> To fit

To fit

  1. Fit the SID unit cover.

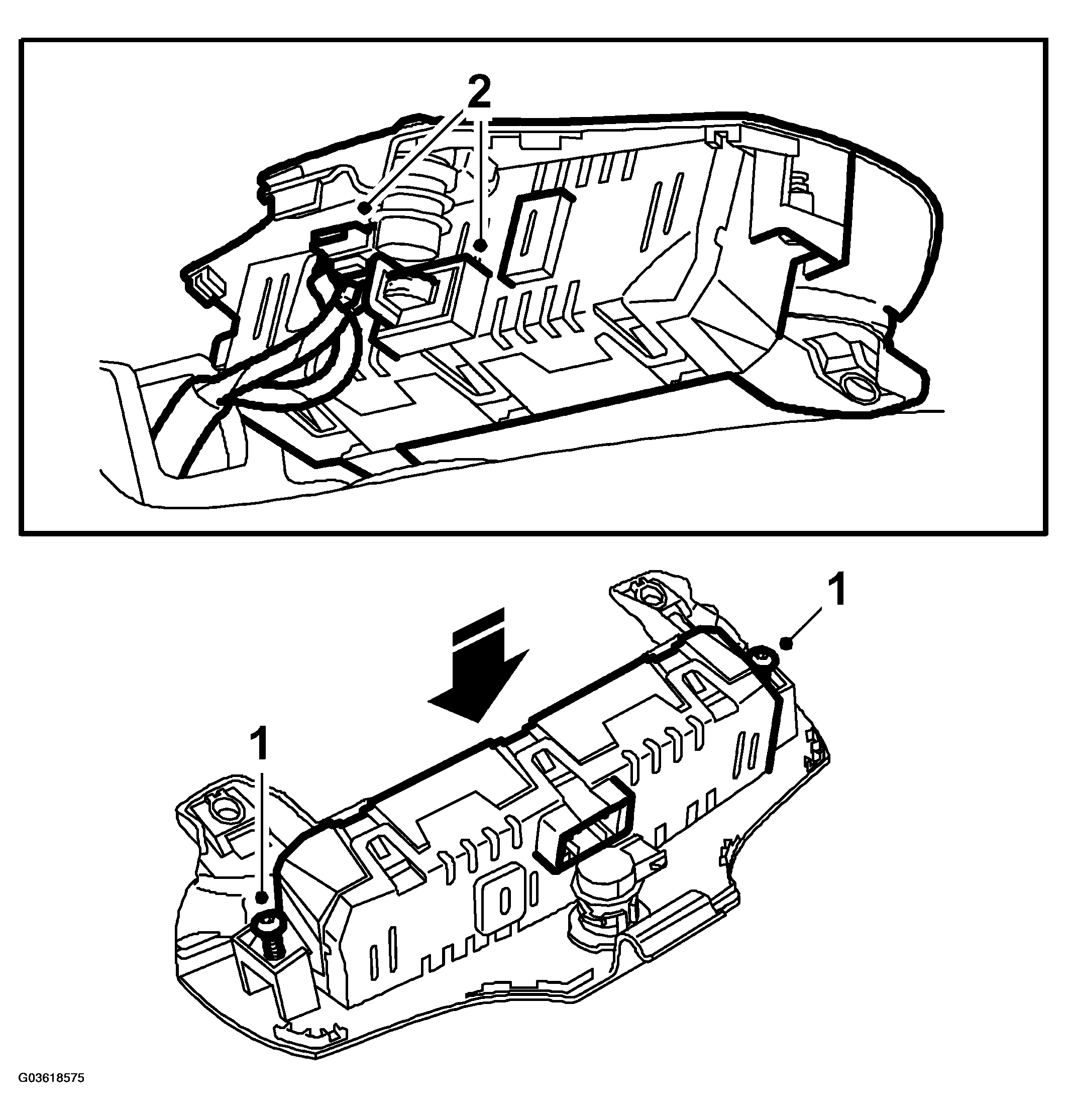

    Fig 1: Illustration For Steps 1-2
    G03618575Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
  3. Fit the SID unit.

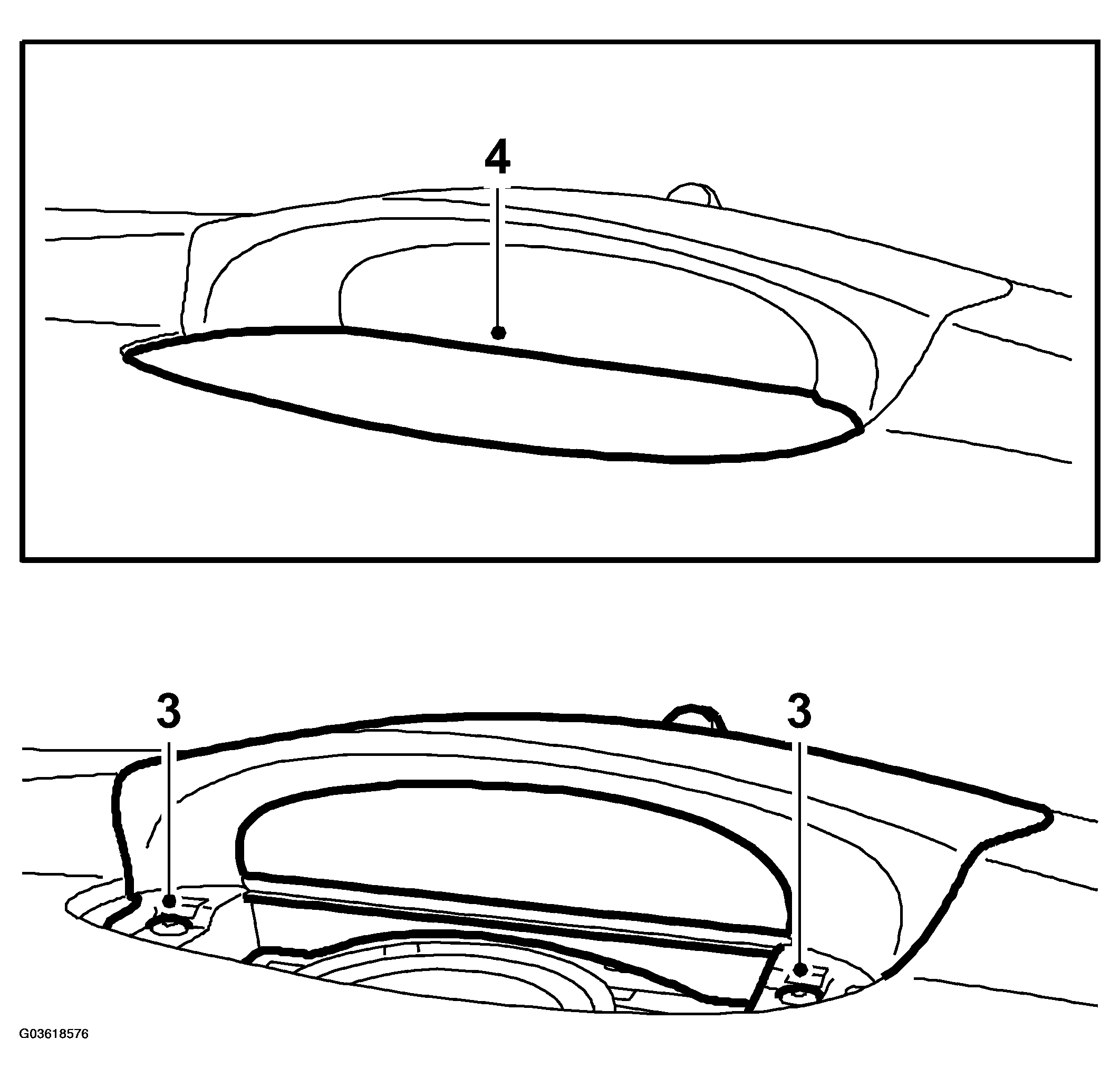

    Fig 2: Illustration For Steps 3-4
    G03618576Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the speaker grille.
  5. Carry out Procedure after replacement of control module.
