To remove

  1. Remove the center air vent from the instrument panel by carefully bending the hooks that are accessible through the grille.

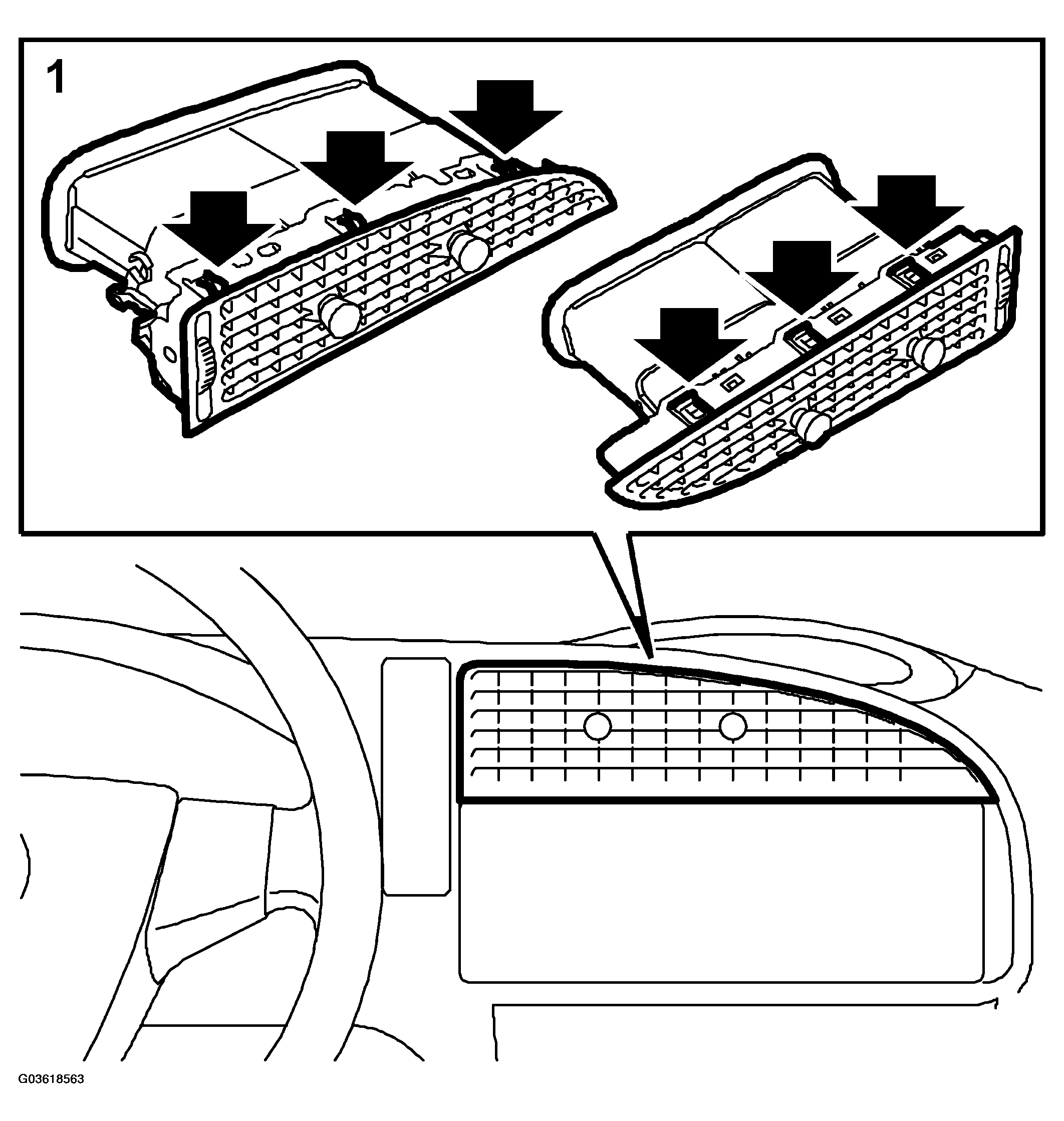

    Fig 1: Illustration For Step 1
    G03618563Courtesy of SAAB-SCANIA OF AMERICA, INC.
    NOTE: It is essential the correct hooks are bent as the hooks holding together the air vent are also visible through the grille.
  2. Remove SIDC by pressing together the two tabs on the back and then pressing out the control panel from behind, starting at the top.

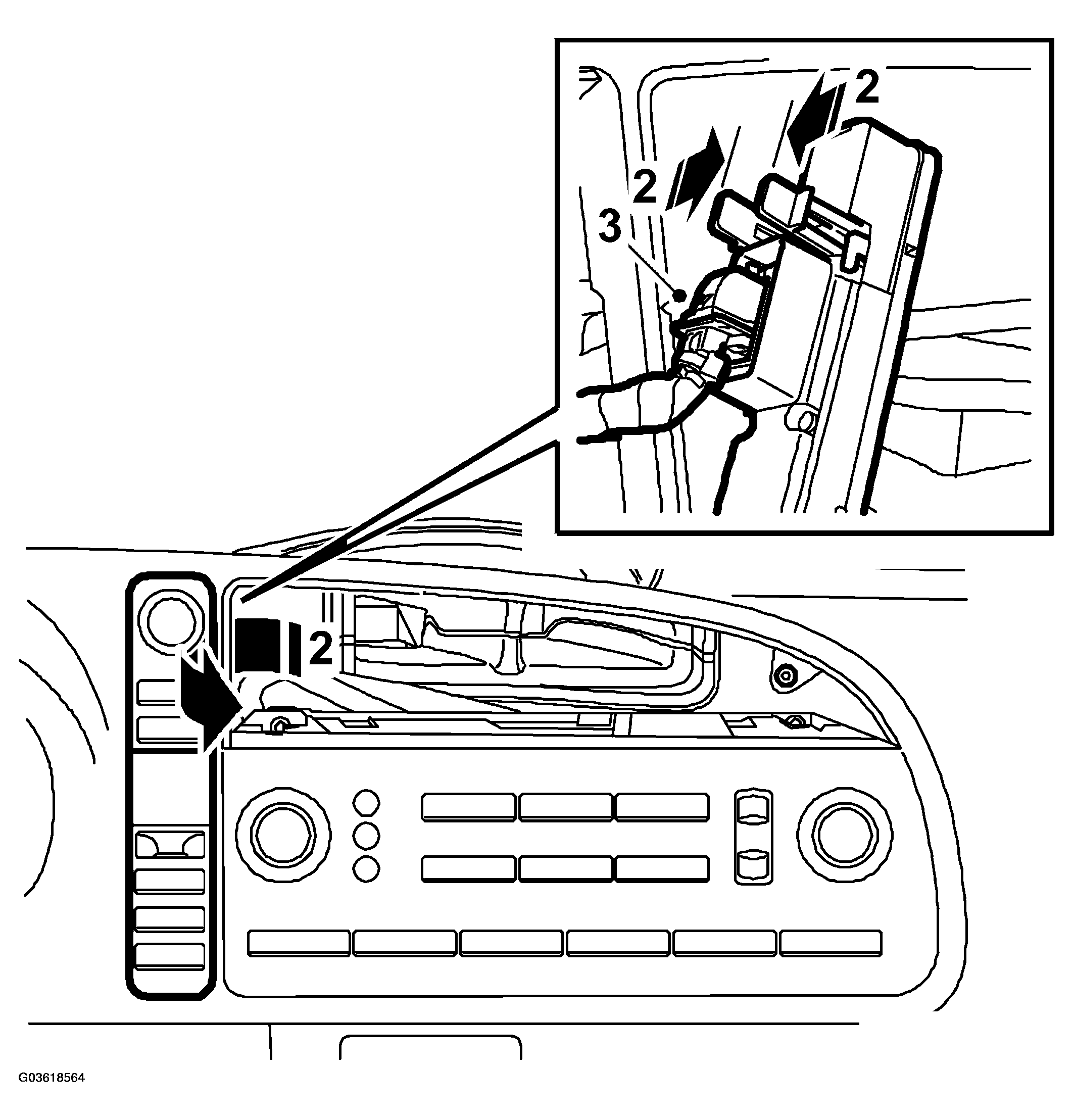

    Fig 2: Illustration For Steps 2-3
    G03618564Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector.
