To fit

  1. Plug in the connector.

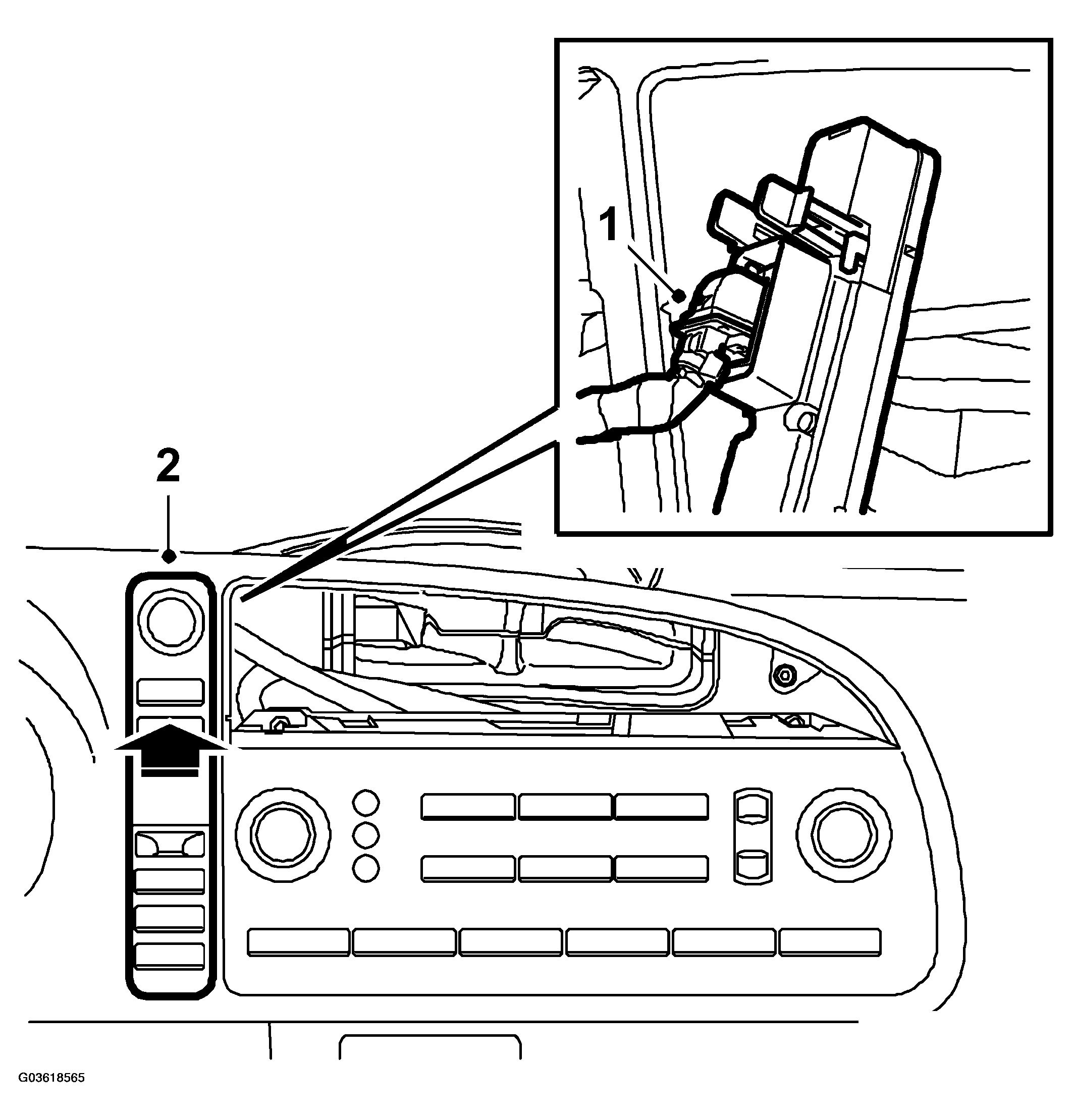

    Fig 1: Illustration For Steps 1-2
    G03618565Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit SIDC by positioning the hook in the bottom and then pressing in the top.
  3. Position and fit the air vent.

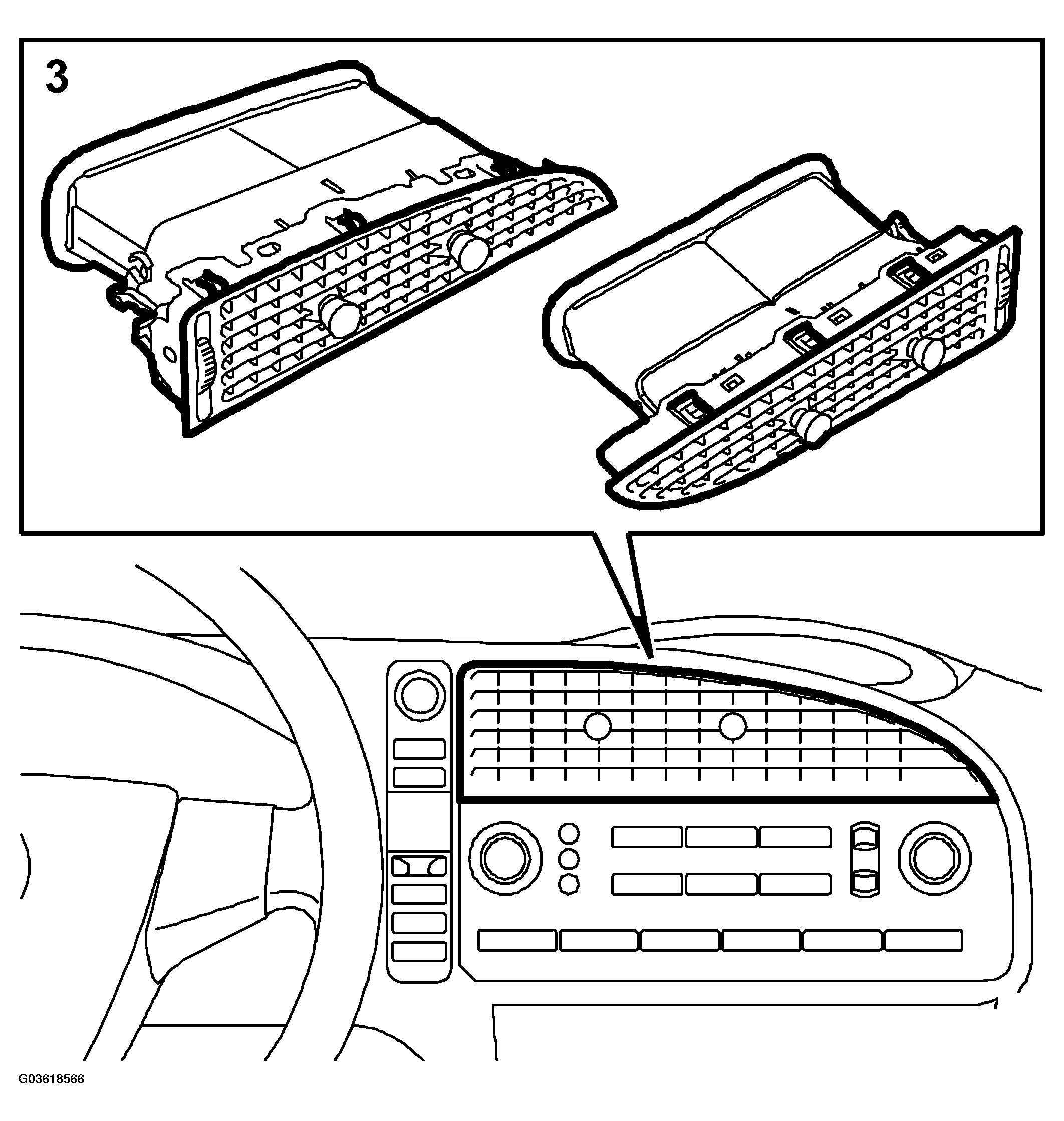

    Fig 2: Illustration For Step 3
    G03618566Courtesy of SAAB-SCANIA OF AMERICA, INC.
