To fit

  1. Carefully blow the inside of the glass and the main instrument unit clean with compressed air.
  2. Position the glass above the main instrument unit and press home the glass so that the catches engage. Turn over the unit and fit the screws.

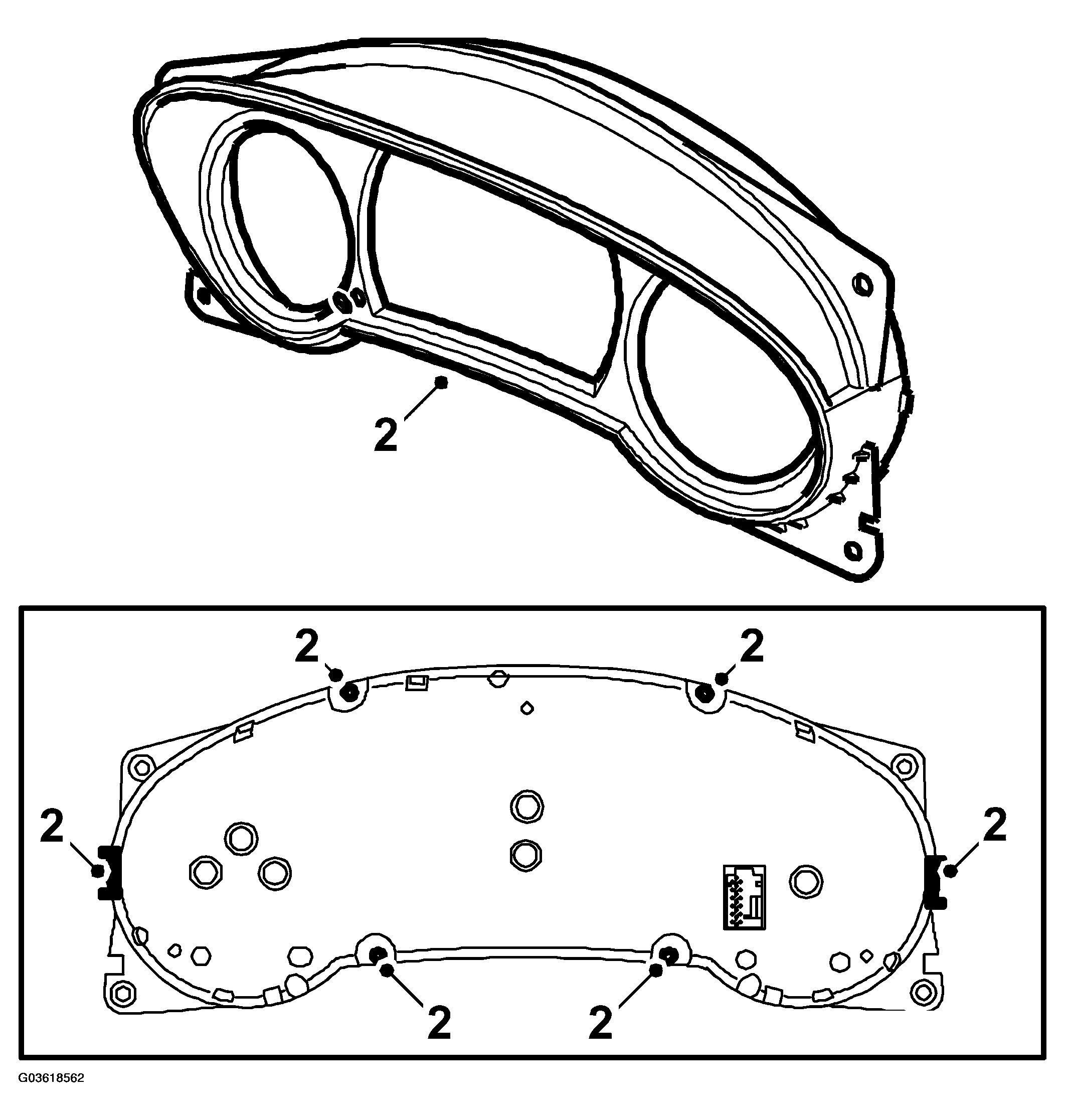

    Fig 1: Illustration For Step 2
    G03618562Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the MAIN INSTRUMENT UNIT (540) .
