Connector H102-1: Location:

Under the LH A-pillar

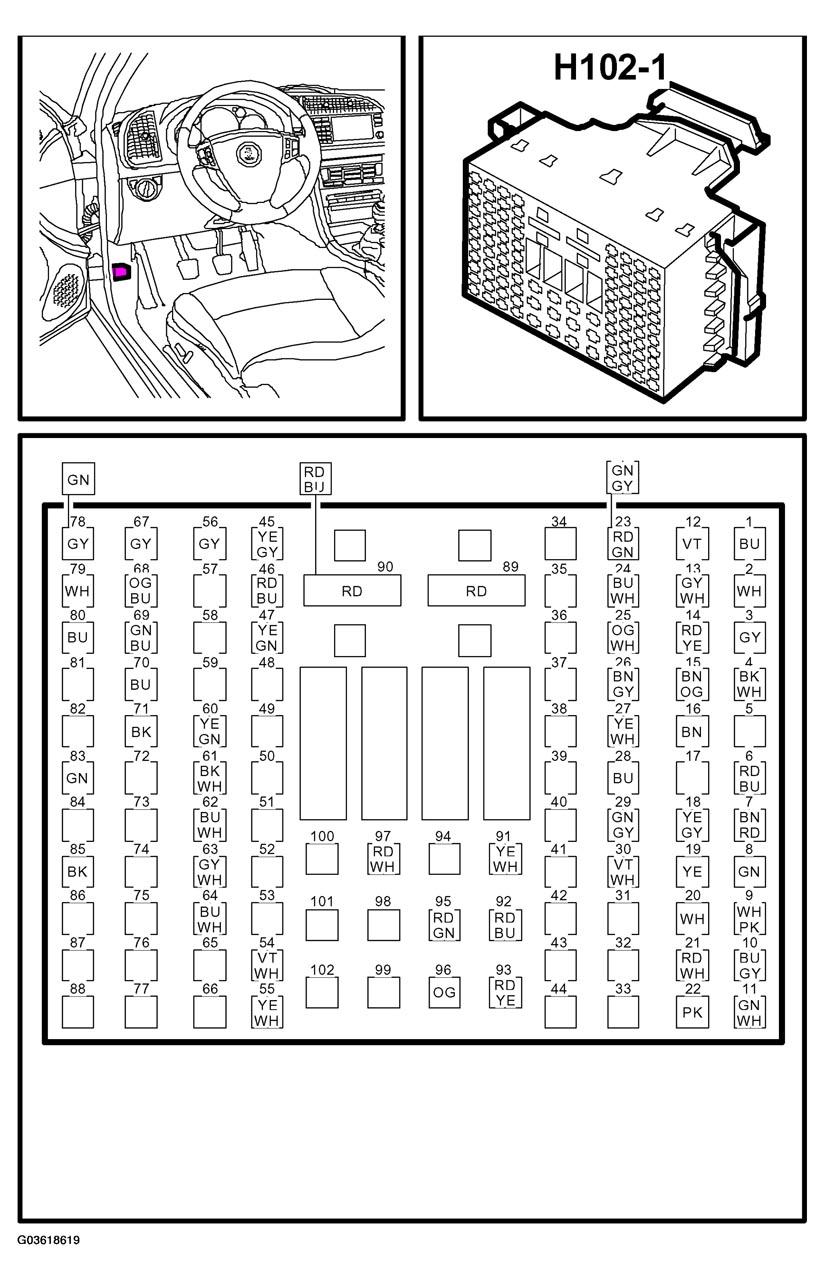

Fig 1: Identifying H102-1 Connector
G03618619Courtesy of SAAB-SCANIA OF AMERICA, INC.
