Home >> Saab >> 2003 >> 9-3 SE, Standard >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Rear Suspension (Early; 9400) >> Adjustment - Replacement >> Rear anti-roll bar, inner >> To fit

To fit

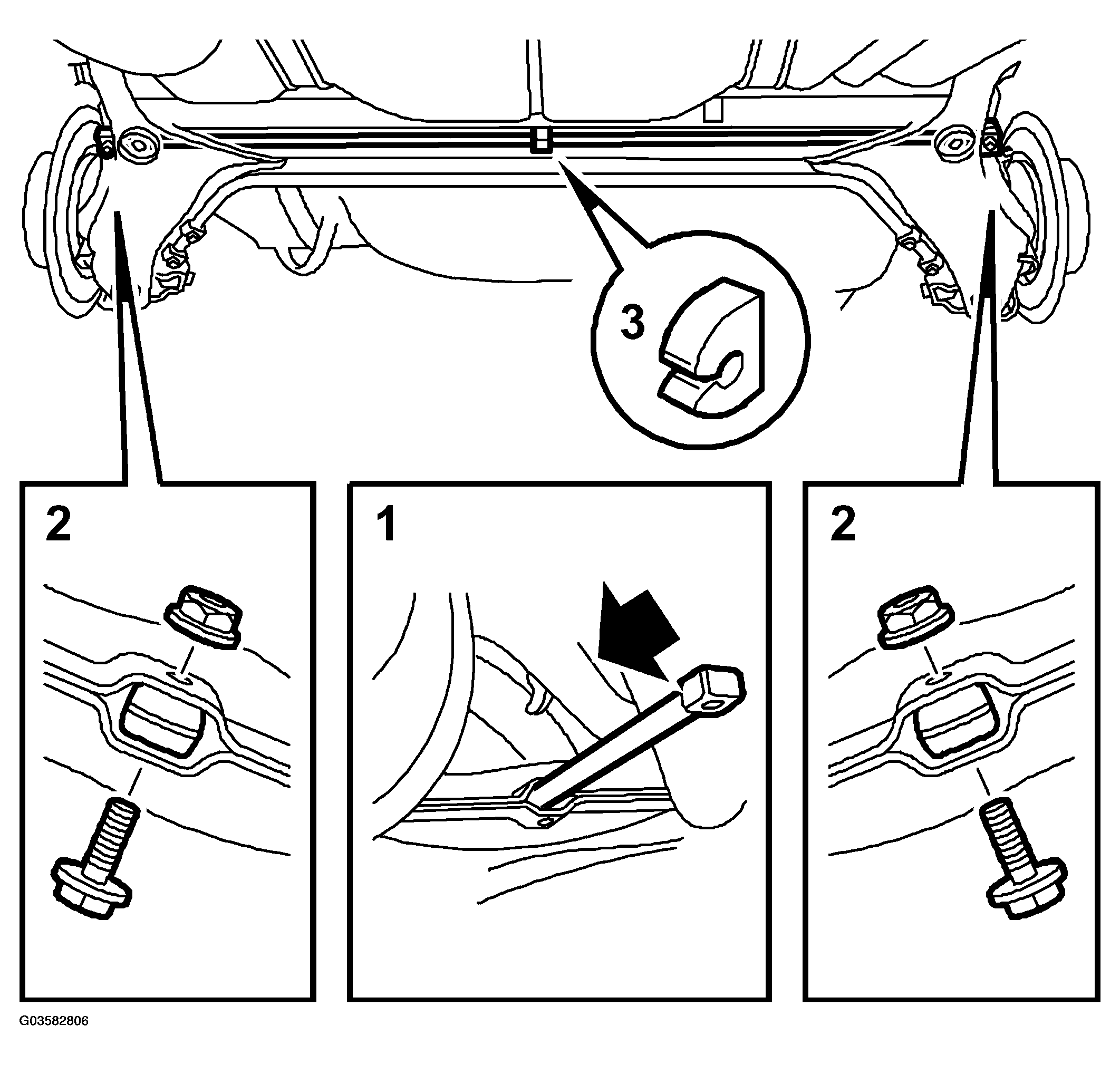

Fig 1: Illustration For Steps 1-3
G03582806Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Slide the new anti-roll bar into the rear axle (coat the anti-roll bar thinly with grease to facilitate assembly).
  2. Fit all the bolts.

    Tightening torque: 60 N.m +70° (44 lbf ft +70°)

  3. Check the position of the rubber bush.
  4. Fit the wheel. See WHEEL & TIRES .

    Tightening torque: 110 N.m (81 lbf ft)
