To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

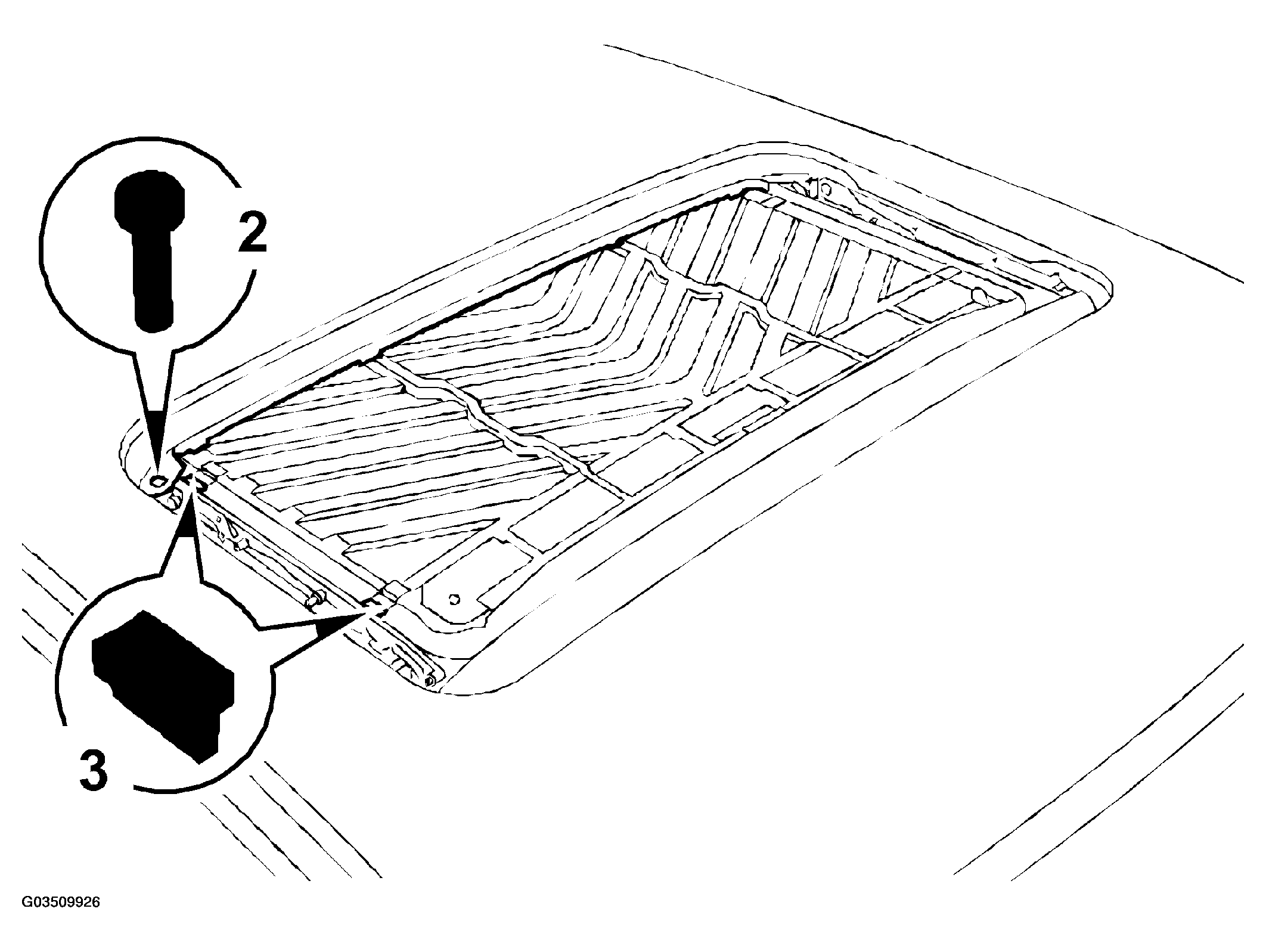

Fig 1: Removing Rubber Bushes
G03509926Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the Glass hatch (sun roof hatch)  .
  2. Remove the water channel.
  3. Remove the rubber bushes.
  4. Press the trim on one side towards the opposite side.
  5. Press in the guide against the trim, one side at a time.
  6. Lift up the trim.
