Soft top storage: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the boot lid.
  2. Remove the clips and loosen the bolts, close the boot lid.
  3. Remove the soft top. See CONVERTIBLE .
  4. Remove the upper mountings for the seat belts.
  5. Remove the front molding and the two clips from the body.
  6. Lift up the rear part of the outer window seal and remove the clip under the molding.

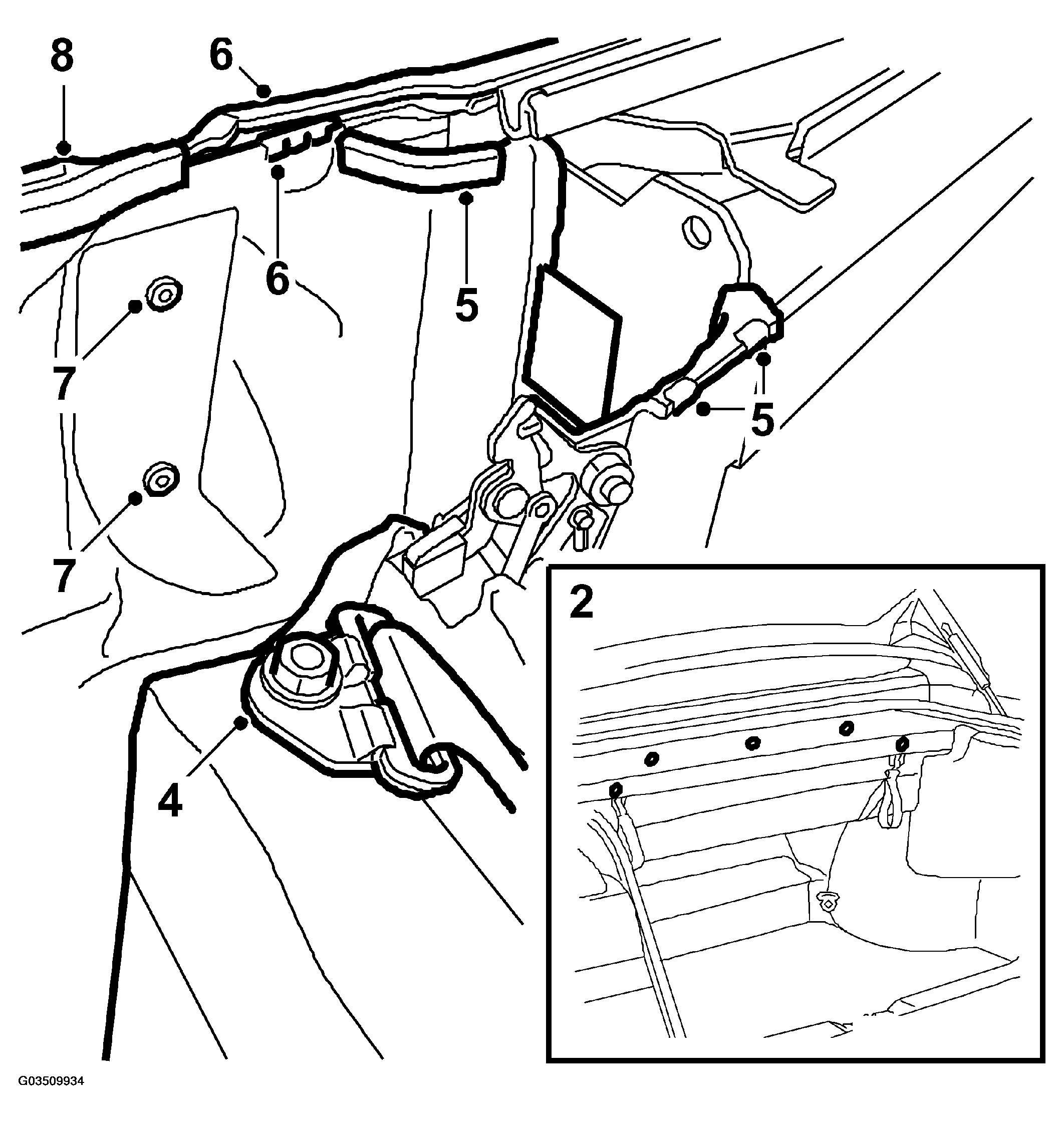

    Fig 1: Illustration For Steps 2, 4, 5, 6, 7 & 8
    G03509934Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Tap in the pins on the clips on the side protectors and pull out the clips.
  8. Remove the soft top cover seal strip.
  9. Remove the plastic clips.
  10. Push out the cable lead through and lift up the velcro strip.
  11. Unplug the connectors.

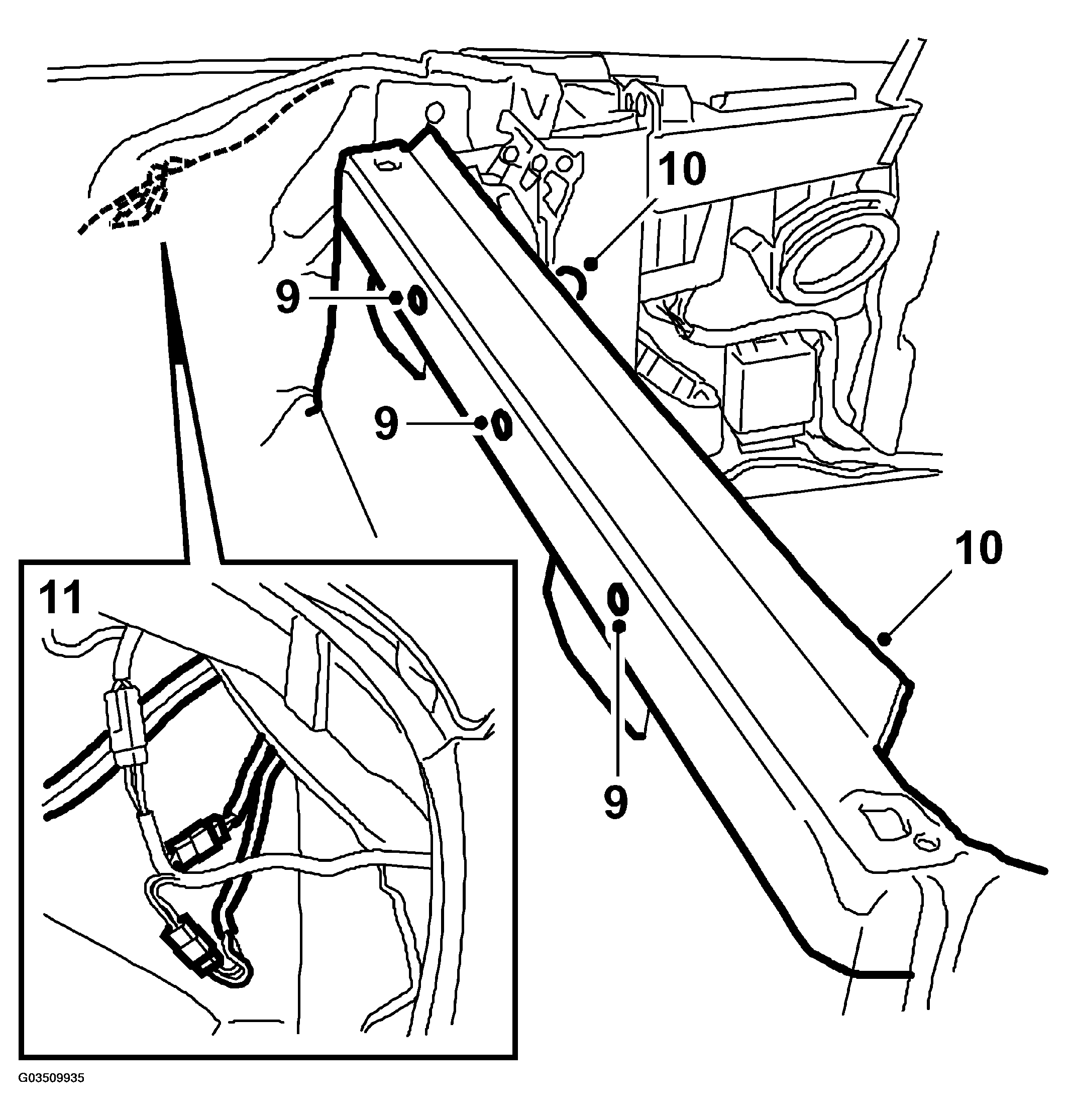

    Fig 2: Illustration For Steps 9, 10 & 11
    G03509935Courtesy of SAAB-SCANIA OF AMERICA, INC.
  12. Lift out the soft top storage.
