Soft top storage: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the soft top storage and plug in the connectors.
  2. Insert the lead through and refit the velcro strip.
  3. Fit the plastic clips.

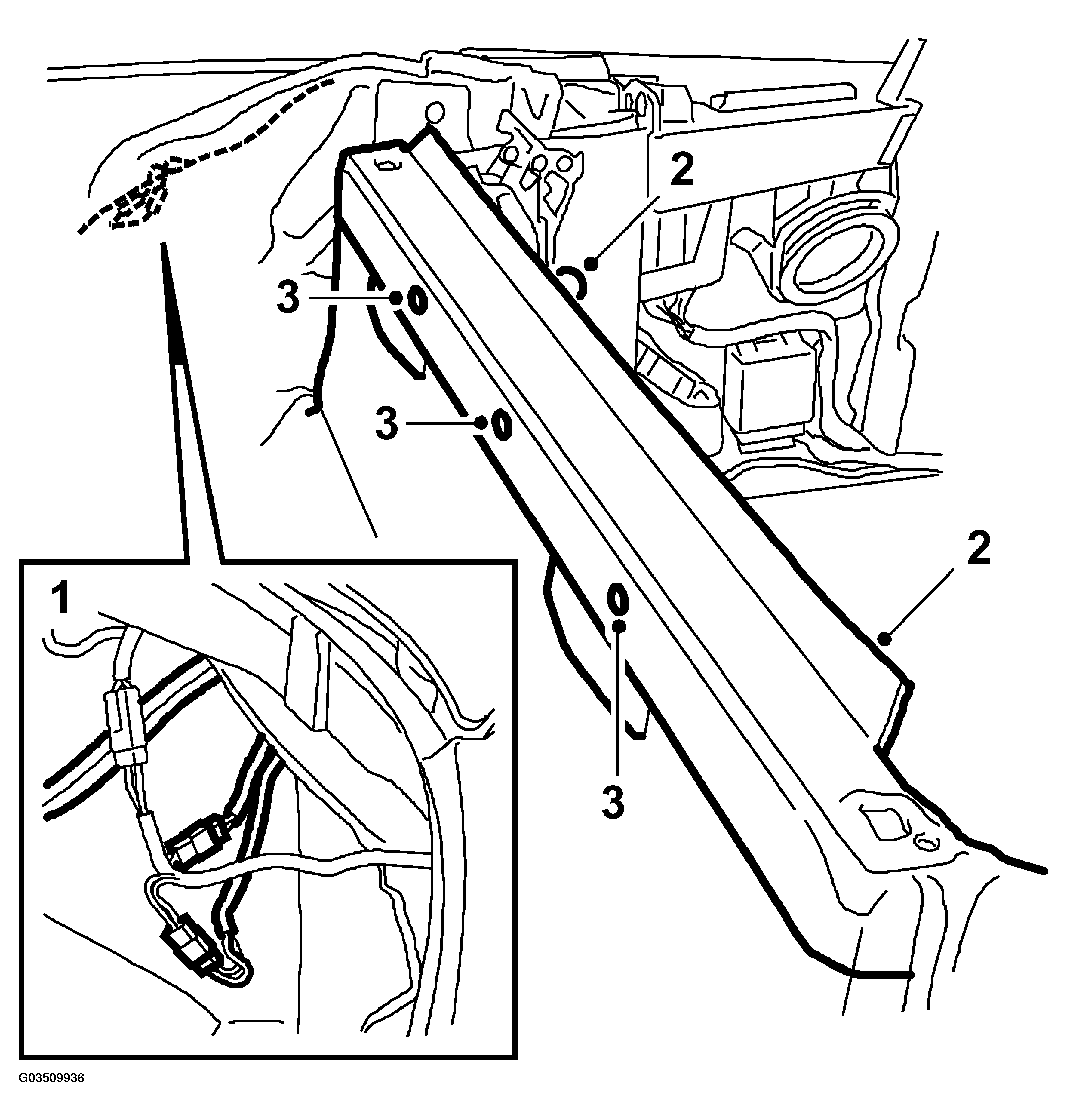

    Fig 1: Illustration For Steps 1-3
    G03509936Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the soft top cover seal strip and fit the clips on the side protectors.

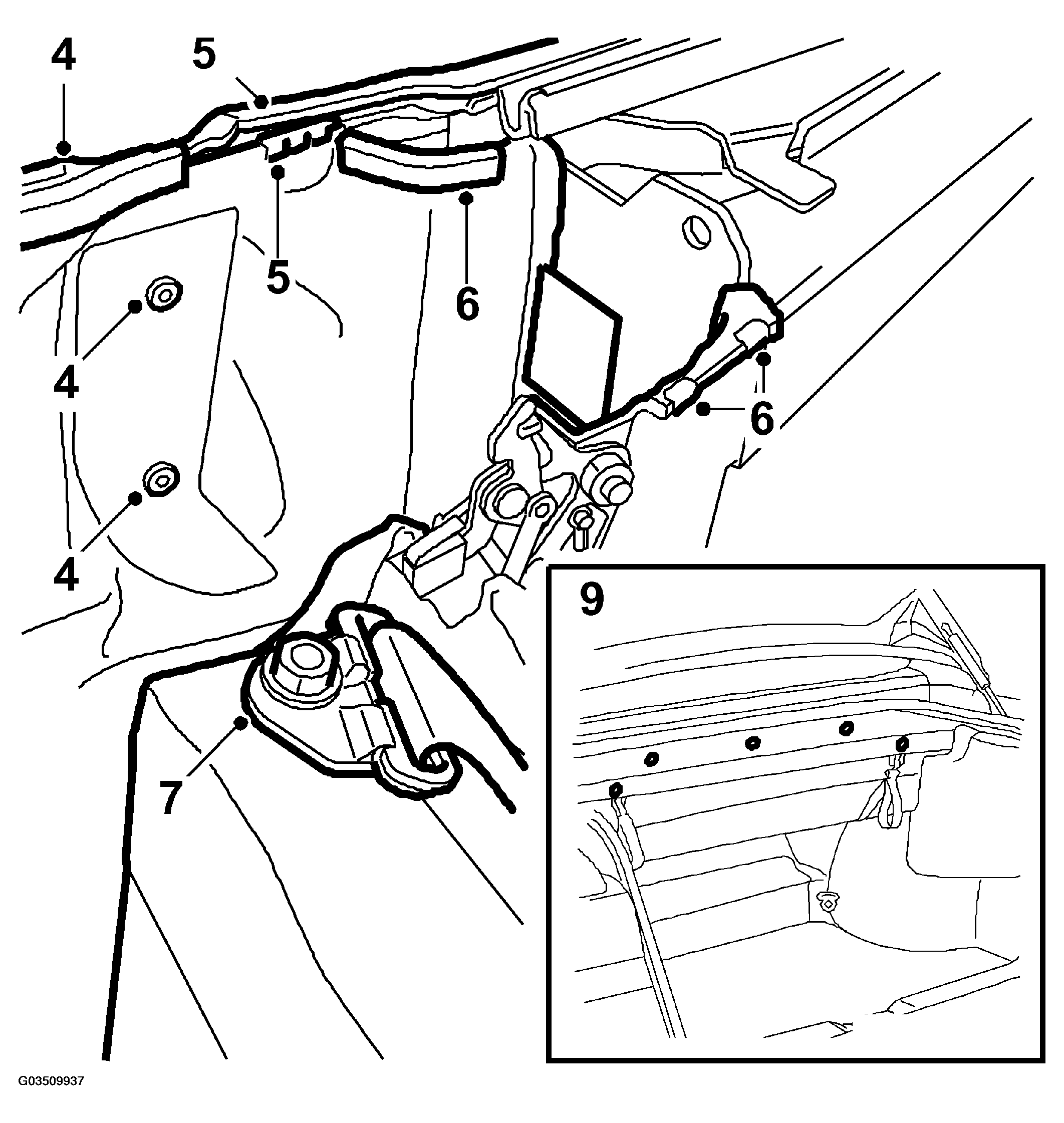

    Fig 2: Illustration For Steps 4, 5, 6, 7 & 9
    G03509937Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Lift up the rear part of the outer window seal and fit the clip under the molding.
  6. Fit the clip in the body and fit the front molding.
  7. Fit the seat belts.
  8. Fit the soft top. See CONVERTIBLE .
  9. Open the boot lid and tighten the bolts. Fit the clips.
