To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

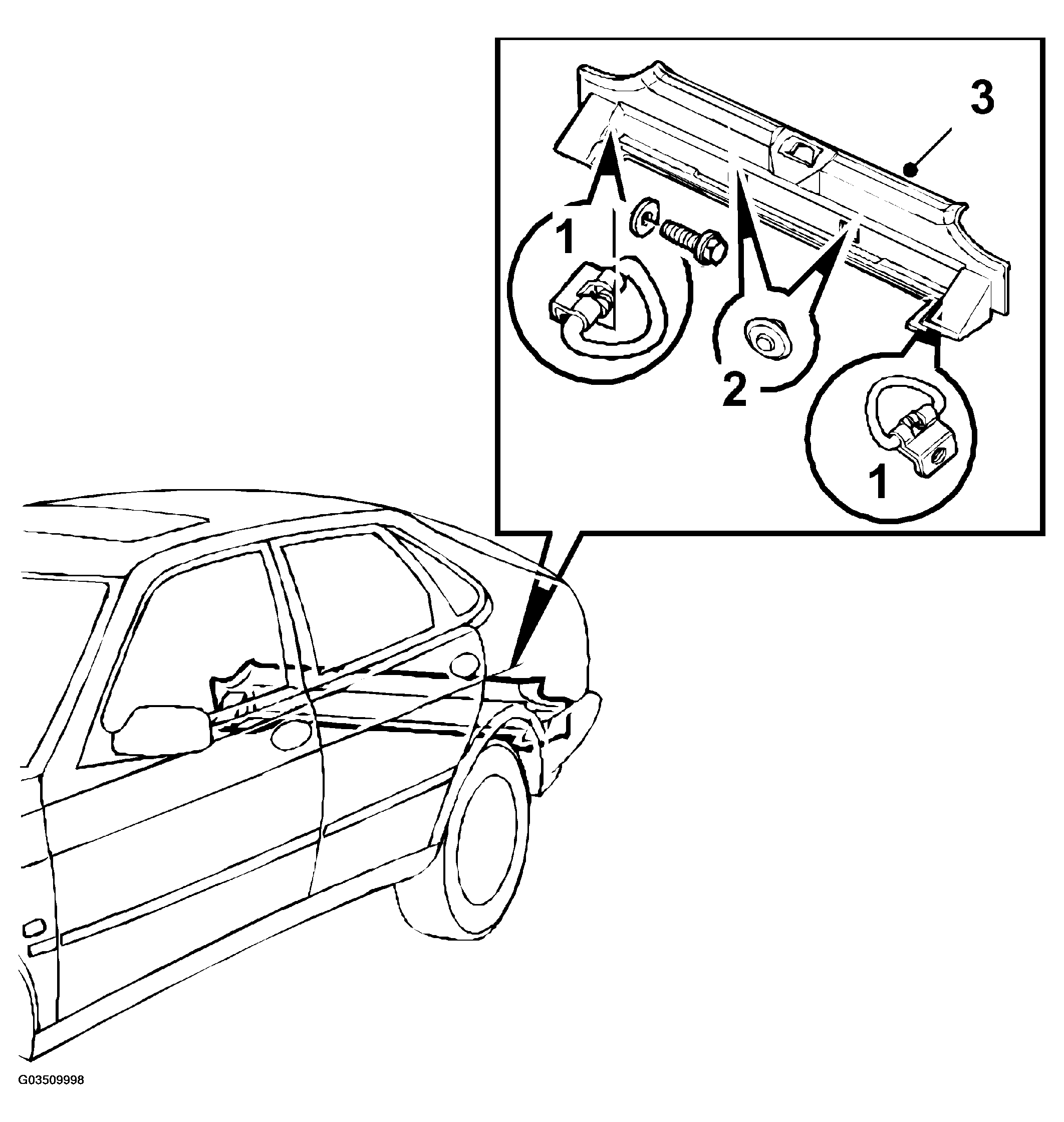

Fig 1: Removing Scuff Plate, Tailgate
G03509998Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the load retainer loops, one on each side of the opening.
  2. Undo the fastening clips securing the scuff plate at the front.
  3. Remove the scuff plate (fastened with clips).
