To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect lamp connector. Ensure that the lamp is firmly and correctly seated in the guide cover.

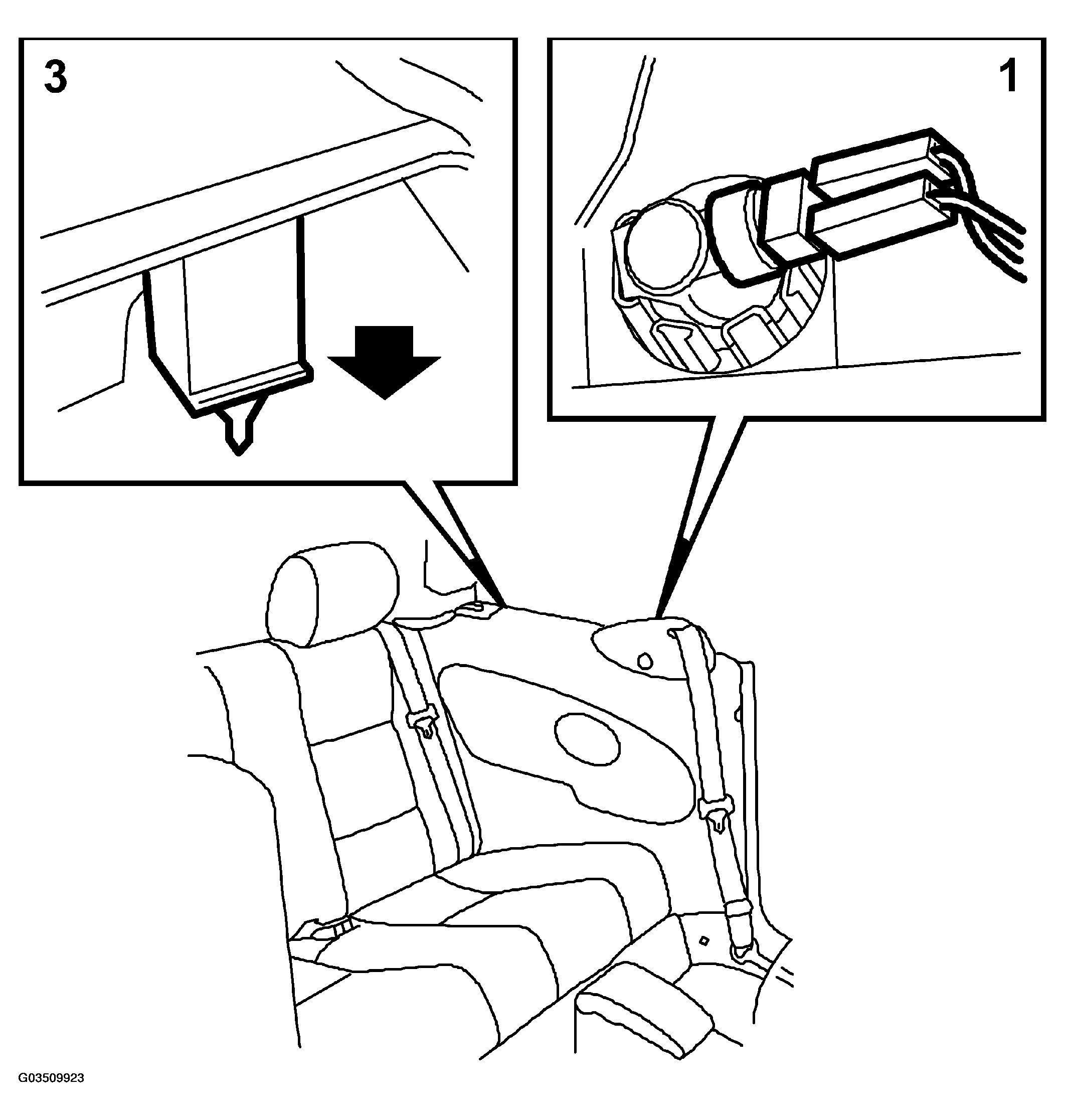

    Fig 1: Inserting Seat Belt Through Strap Guide
    G03509923Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Insert the seat belt through the strap guide.
  3. Fit the upholstery and press in the clip into the upper rear corner. Make sure that the rubber seal fits correctly to the trim.
  4. Tighten the bolt and fasten the plastic screws that secure the side trim to the rear edge.

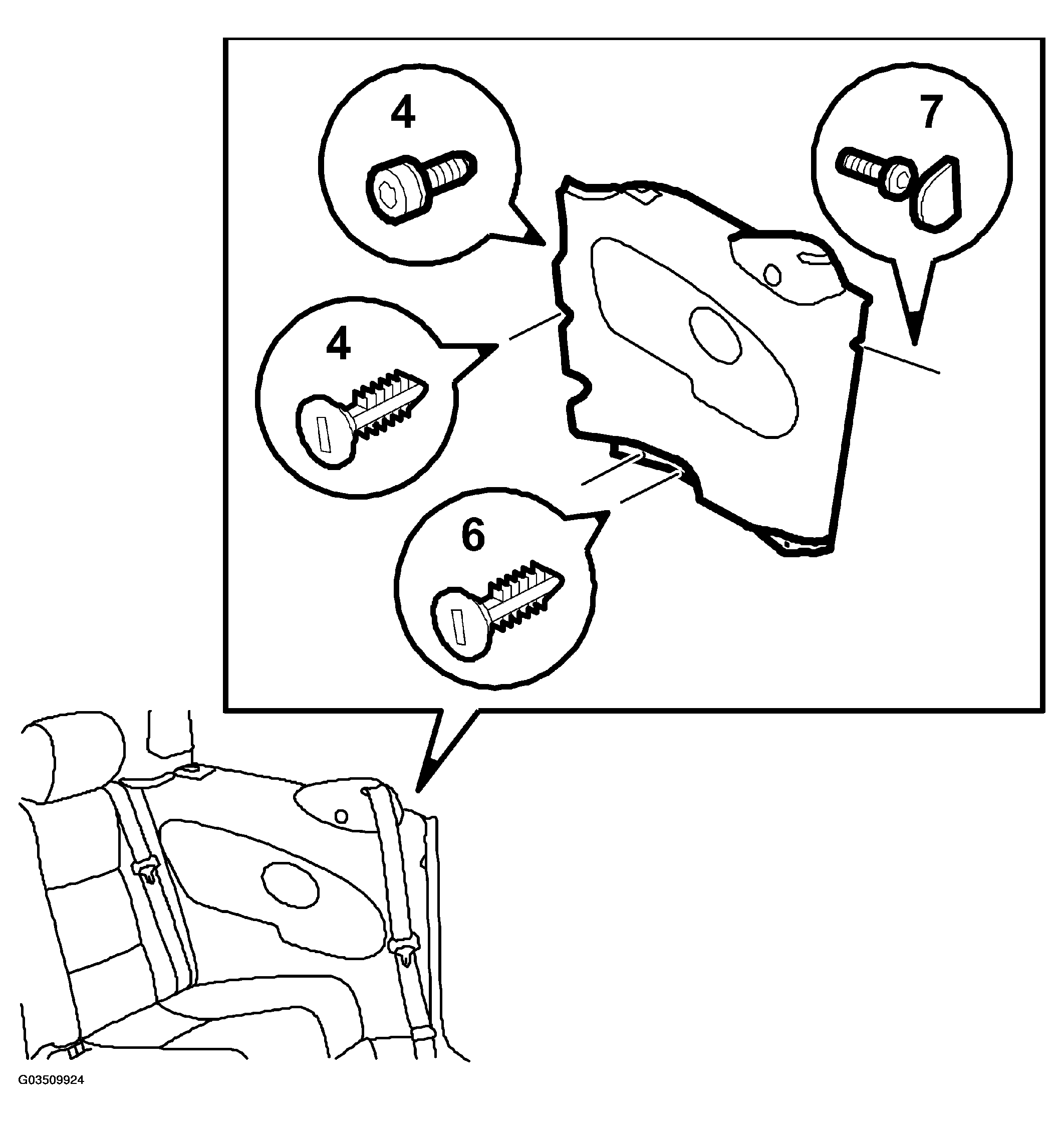

    Fig 2: Fastening Plastic Clips
    G03509924Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Raise the backrest.
  6. Fasten the plastic clips that secure the trim at the bottom.
  7. Tighten the bolt that secures the trim to the B-pillar and then press on the cover.
  8. Fit the sill scuff plate.

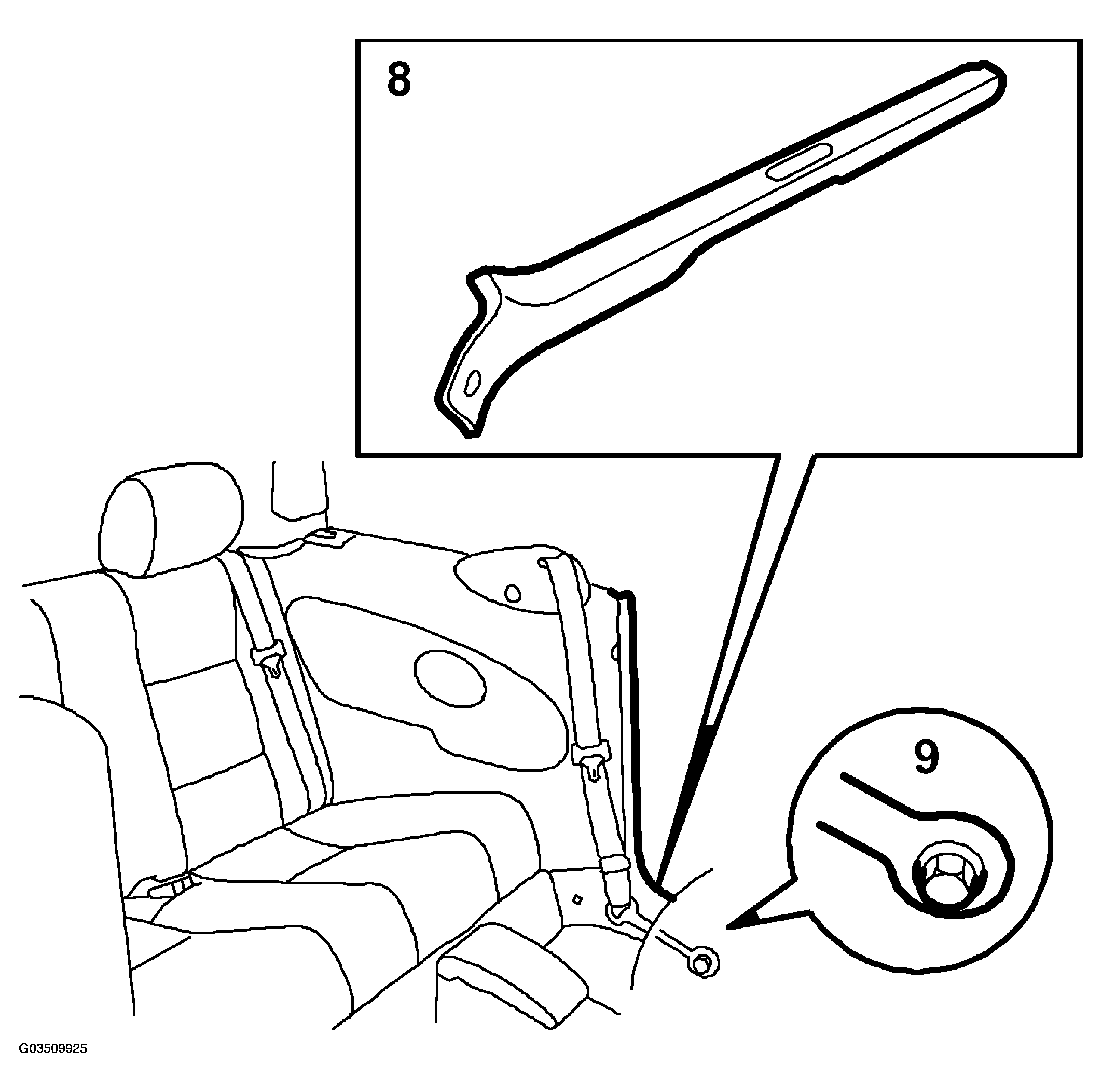

    Fig 3: Tightening Bolt
    G03509925Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Check that the seat belt is not twisted and then tighten the bolt that secures the seat belt to the floor.

    Tightening torque: 45 N.m (33.3 lbf ft)

  10. Refit the seat cushion in the rear seat.
