To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

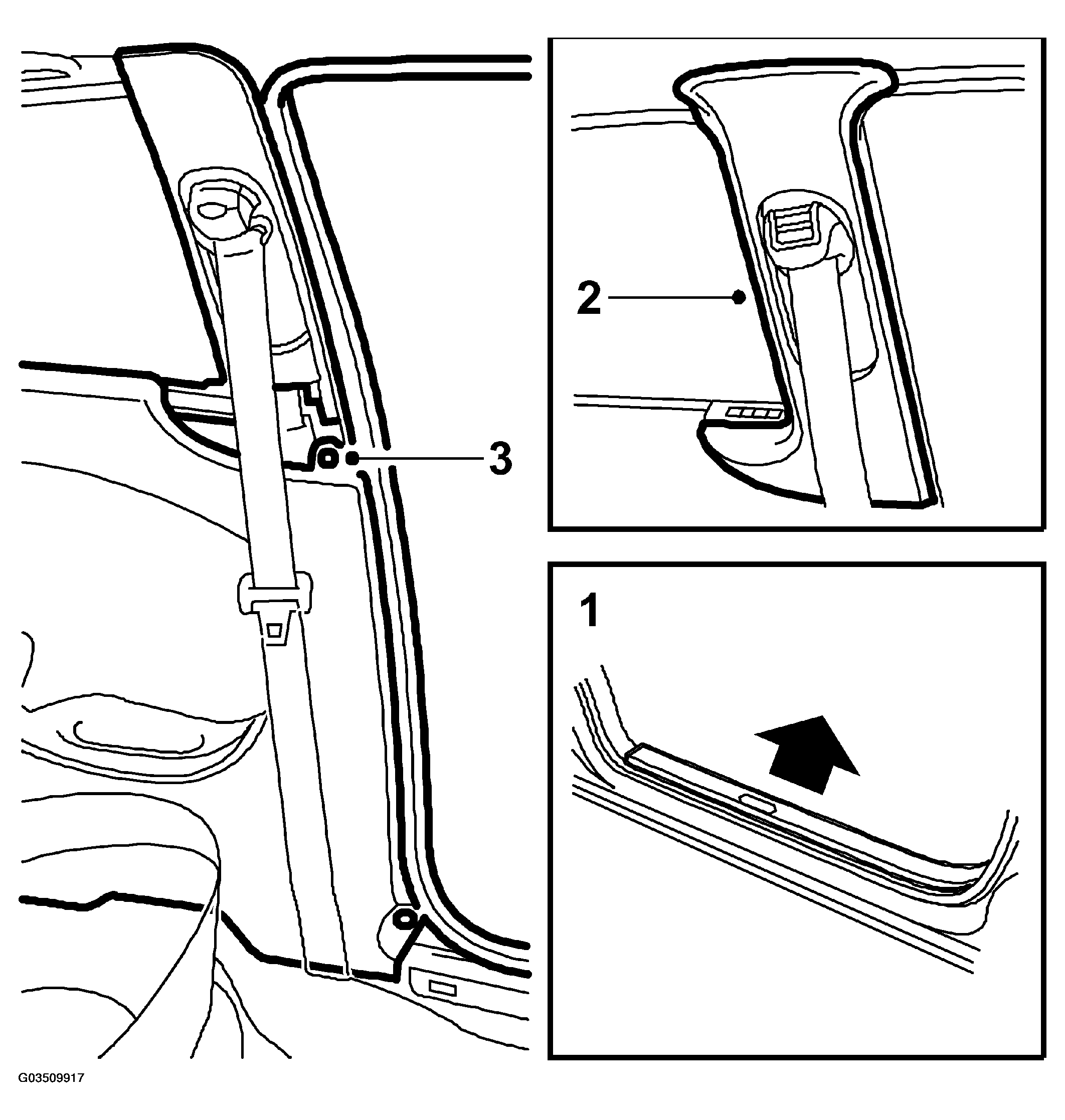

Fig 1: Removing Scuff Plate
G03509917Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the scuff plate.
  2. Remove the B-pillar trim, but not from the belt. See Trim, B-pillar, 3D .
  3. Remove the screw clip at the front.
  4. Lift up the seat cushion.
  5. Remove the bottom rear and top rear screw clips.

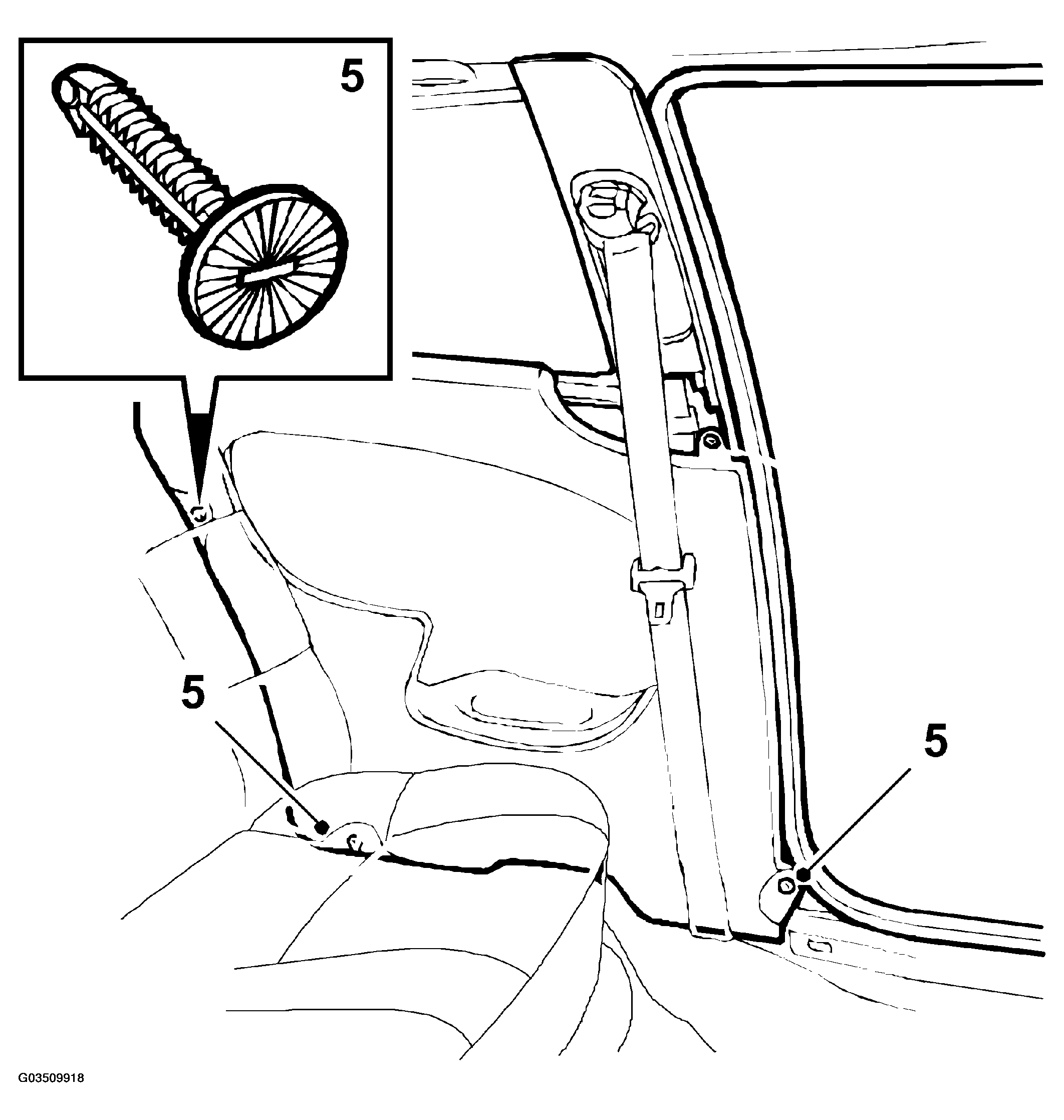

    Fig 2: Removing Bottom Rear And Top Rear Screw Clips
    G03509918Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Undo the side trim.
