To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the scuff plate.
    2. Fig 1: Removing Scuff Plate
    G03509930Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the clips securing the trim at the sides.
  3. Loosen the luggage compartment seal.
  4. Unplug the connector for the luggage compartment lighting.
  5. Remove the clips securing the floor mat and remove it.
  6. Remove the bolt that secures the load retention eye.
  7. Remove the clips that secure the front ends of the trim. Remove the trim.

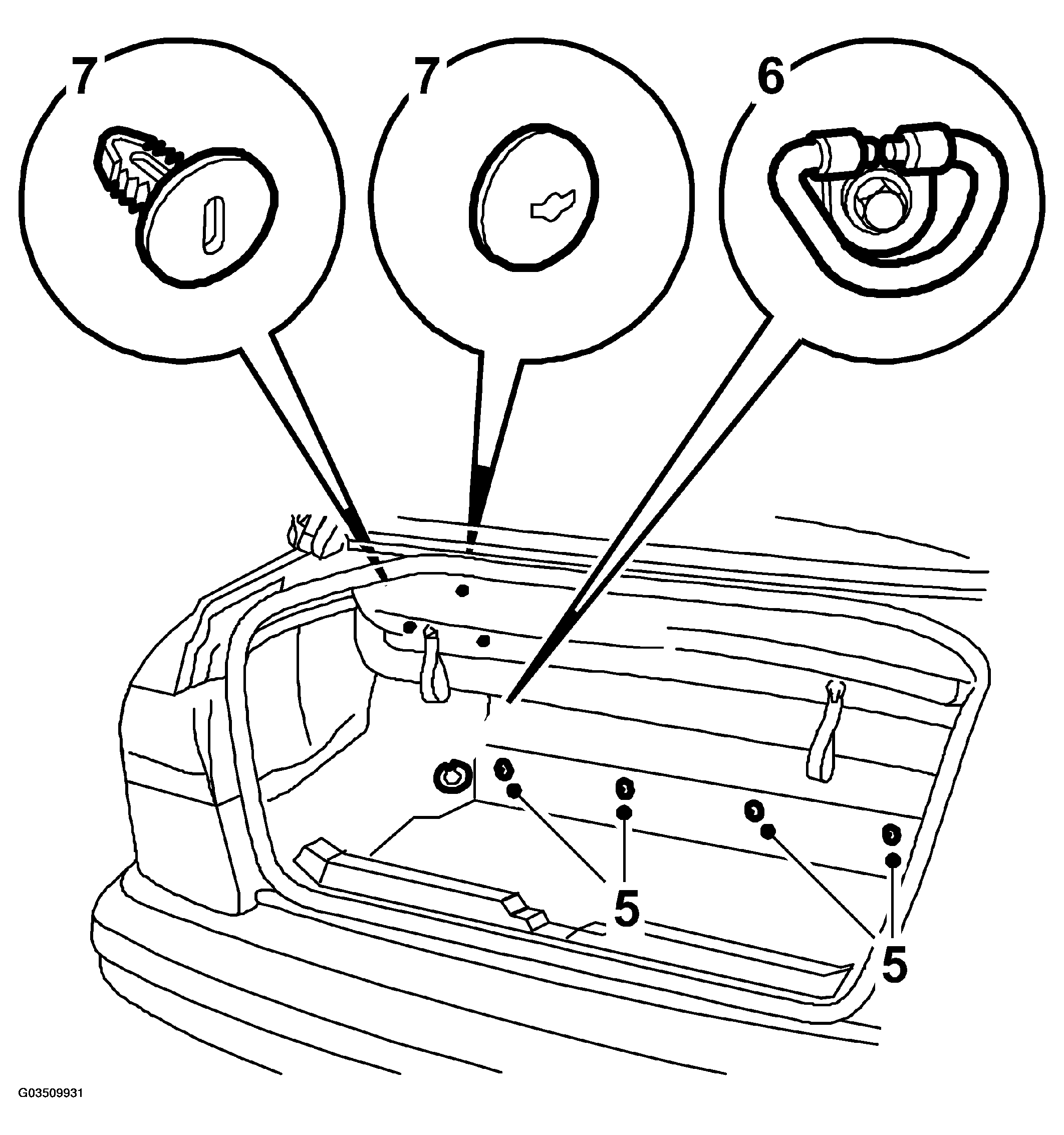

    8. Fig 2: Removing Load Retention Eye, Clips & Trim
    G03509931Courtesy of SAAB-SCANIA OF AMERICA, INC.
