To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor mat by undoing the clips at the front of the mat.
  2. Remove the scuff plate, see Figure.
  3. Undo the clips securing the trim at the door opening.

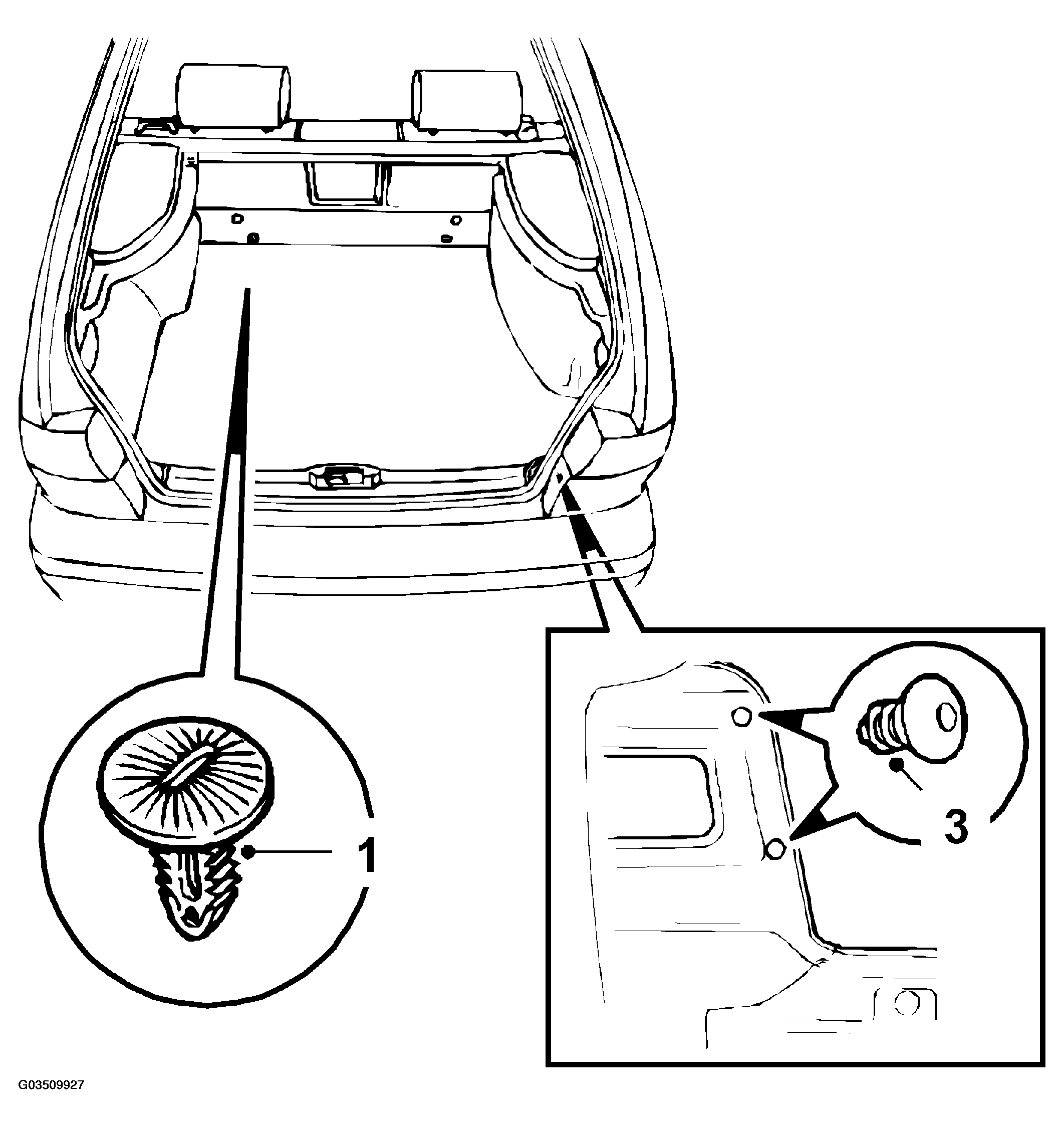

    Fig 1: Removing Clips Securing Trim At Door Opening
    G03509927Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fold forward the rear seat and detach the loudspeaker frame by removing the loudspeaker grille and undoing the pin bolt and retaining screws.

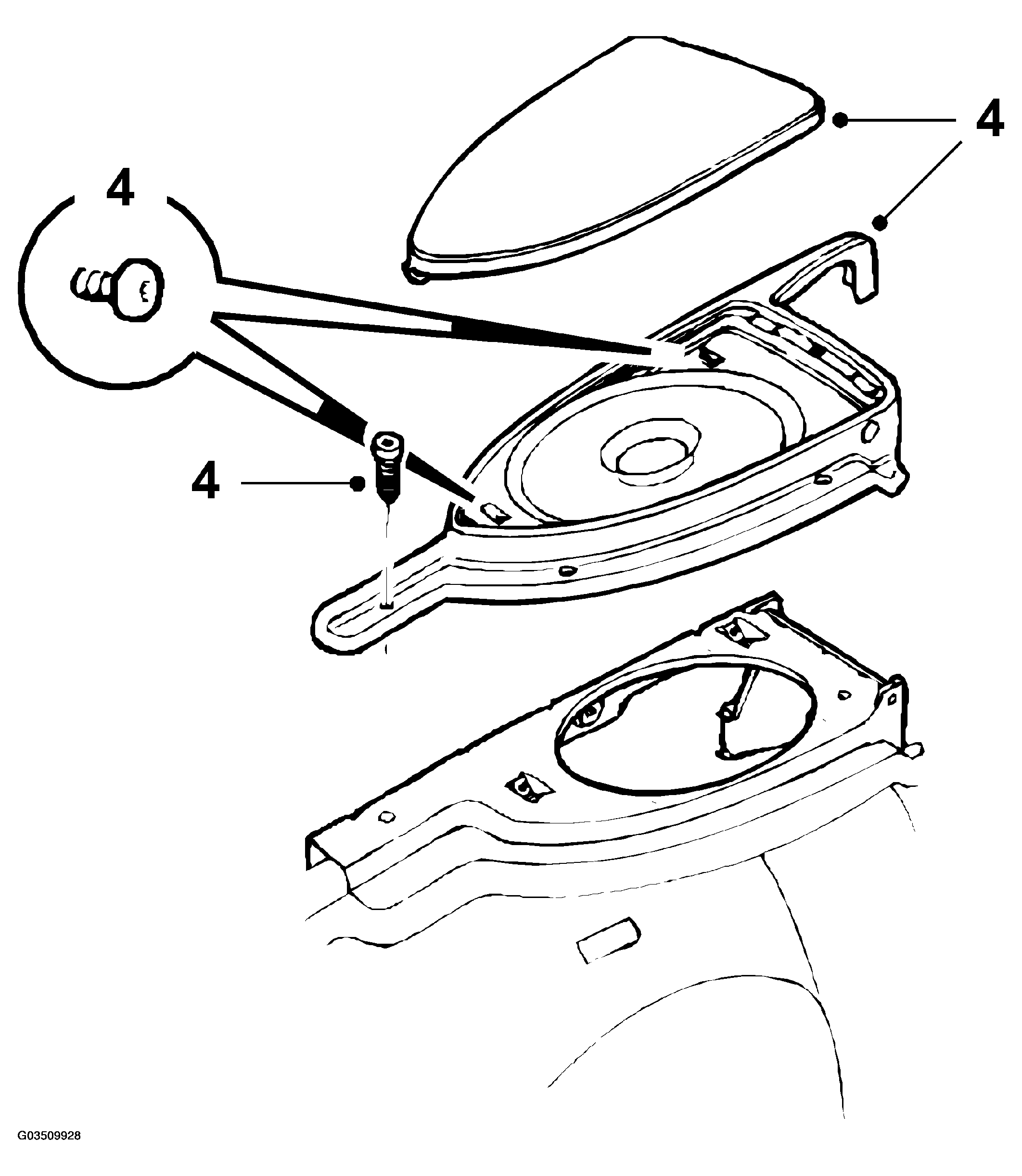

    Fig 2: Removing Loudspeaker Grille
    G03509928Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Put back the backrest and remove the 40% section by undoing it from the belt member and folding it forwards. Remove the bracket at the long-load opening, pull out the backrest joint from the sleeve, undo the upholstery stretcher and lift out the backrest.
  6. Bend up the bracket for the backrest upholstery stretcher and undo the luggage compartment trim from the bracket.

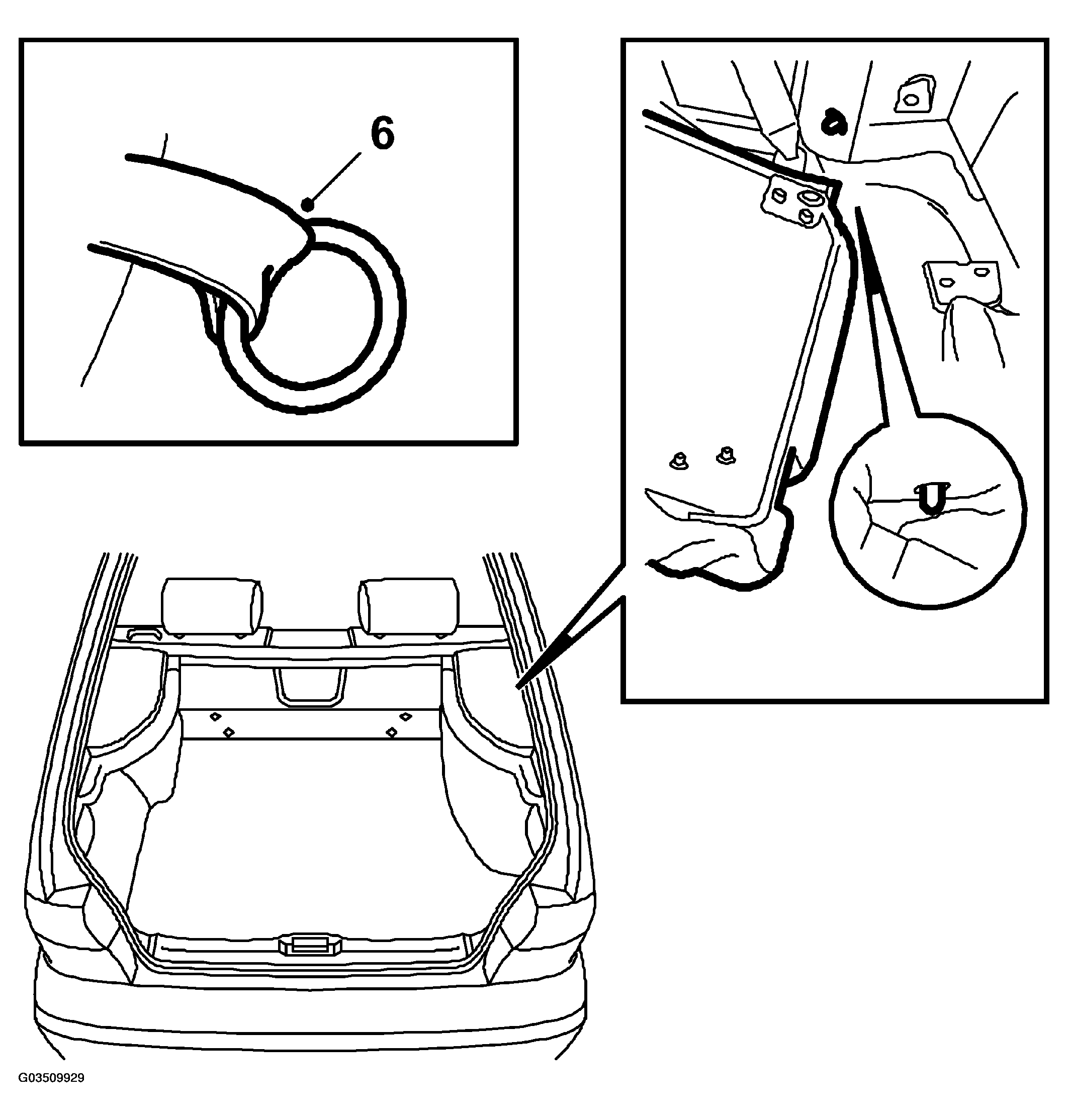

    Fig 3: Bending Up Bracket Backrest Upholstery Stretcher
    G03509929Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Undo the upholstery.
