To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument plate, see INSTRUMENT PLATE
  2. Remove the air vent by pressing in the clip and pressing out the air vent from the rear.

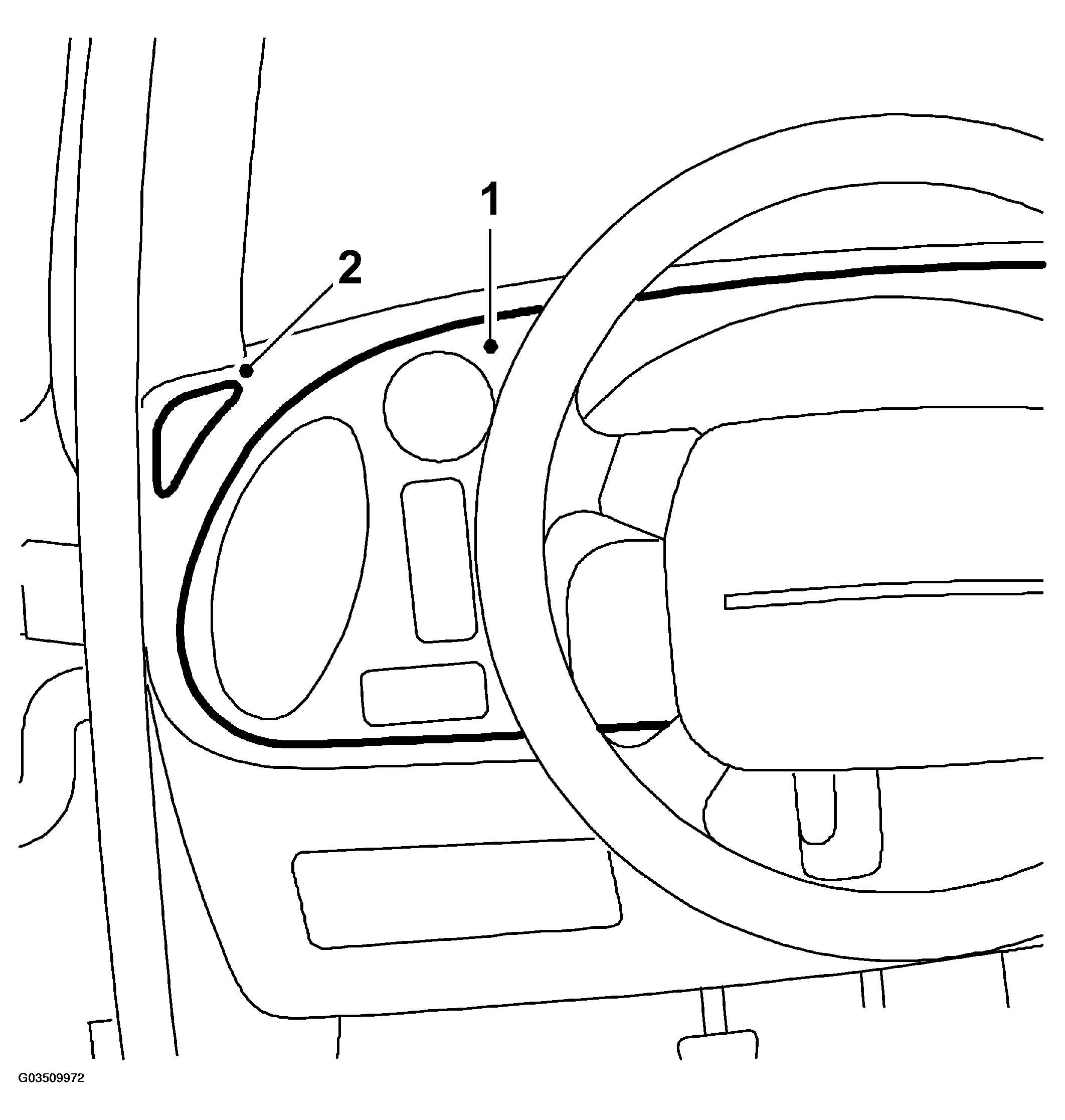

    Fig 1: Removing Air Vent
    G03509972Courtesy of SAAB-SCANIA OF AMERICA, INC.
