To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clip at the rear of the scuff plate.
  2. Lift up the scuff plate.

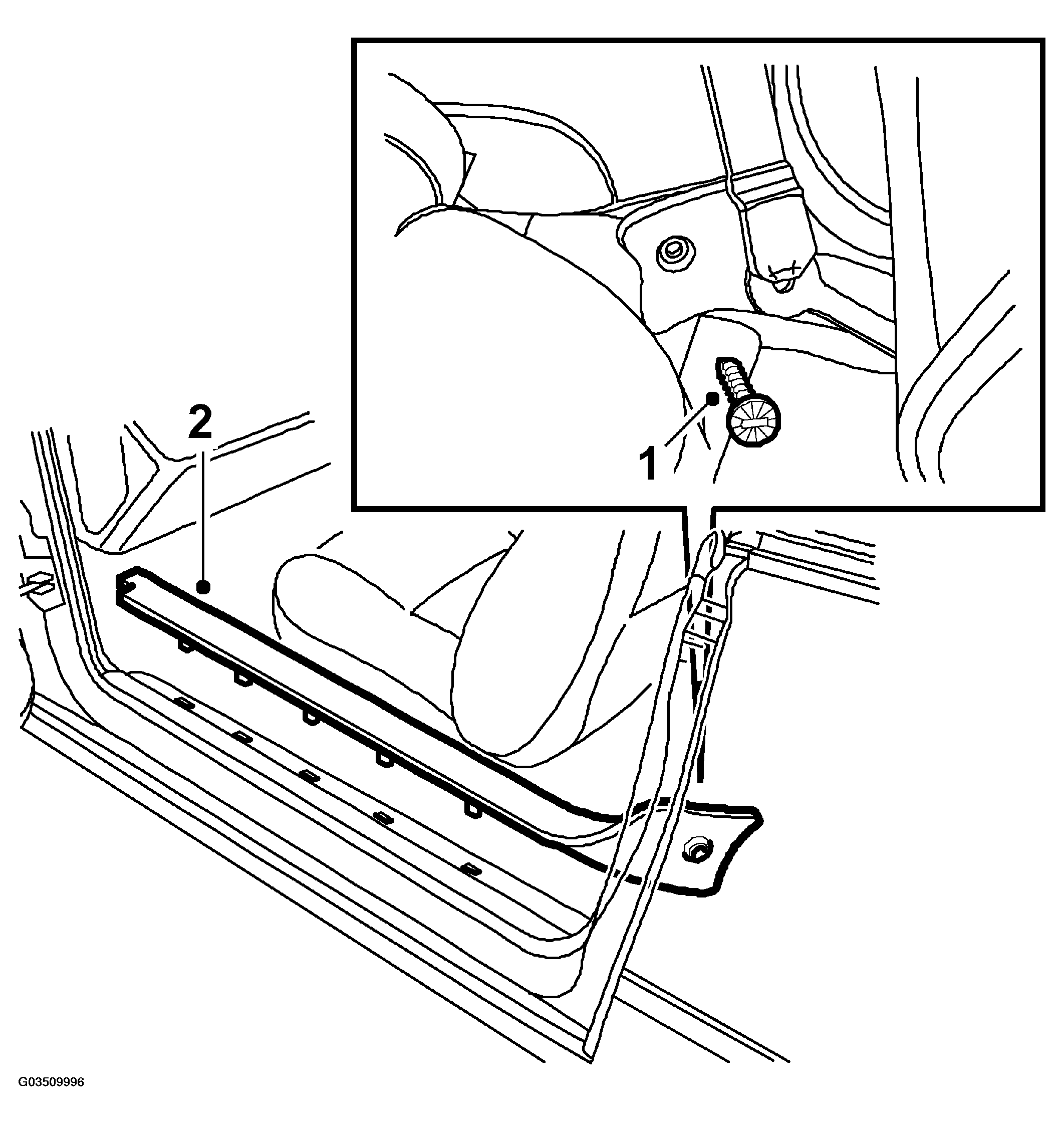

    Fig 1: Removing Inner Scuff Plate, CV
    G03509996Courtesy of SAAB-SCANIA OF AMERICA, INC.
