To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the glove box. Open the cover and unscrew the retaining screws.
  2. Remove the remaining retaining screws and mounting bolts as well as the expansion rivet at the front and release the snap fasteners from the bulkhead bracket.
  3. Pull out the glove box and unplug the connector for the glove box illumination.
  4. Lift out the glovebox.

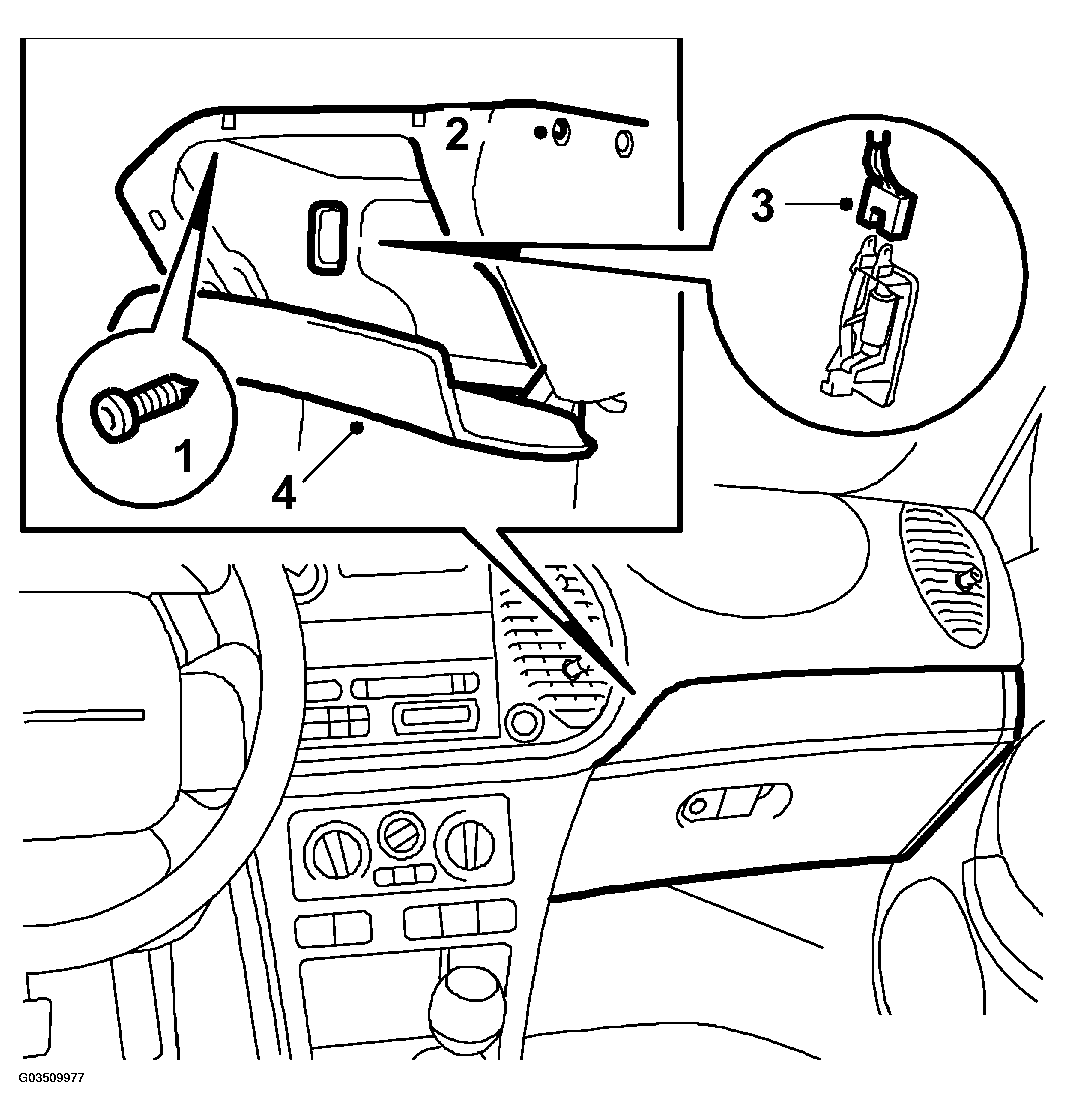

    Fig 1: Removing Glovebox
    G03509977Courtesy of SAAB-SCANIA OF AMERICA, INC.
