To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the handbrake.
  2. Remove the antenna unit by turning it slightly counter-clockwise and then lifting it up.
  3. Remove the cover plate of the ignition switch by first lifting the rear edge of the cover clear and then disengaging the front edge.
  4. Undo the retaining screw of the floor console.
  5. Take out the rear ashtray/cover.

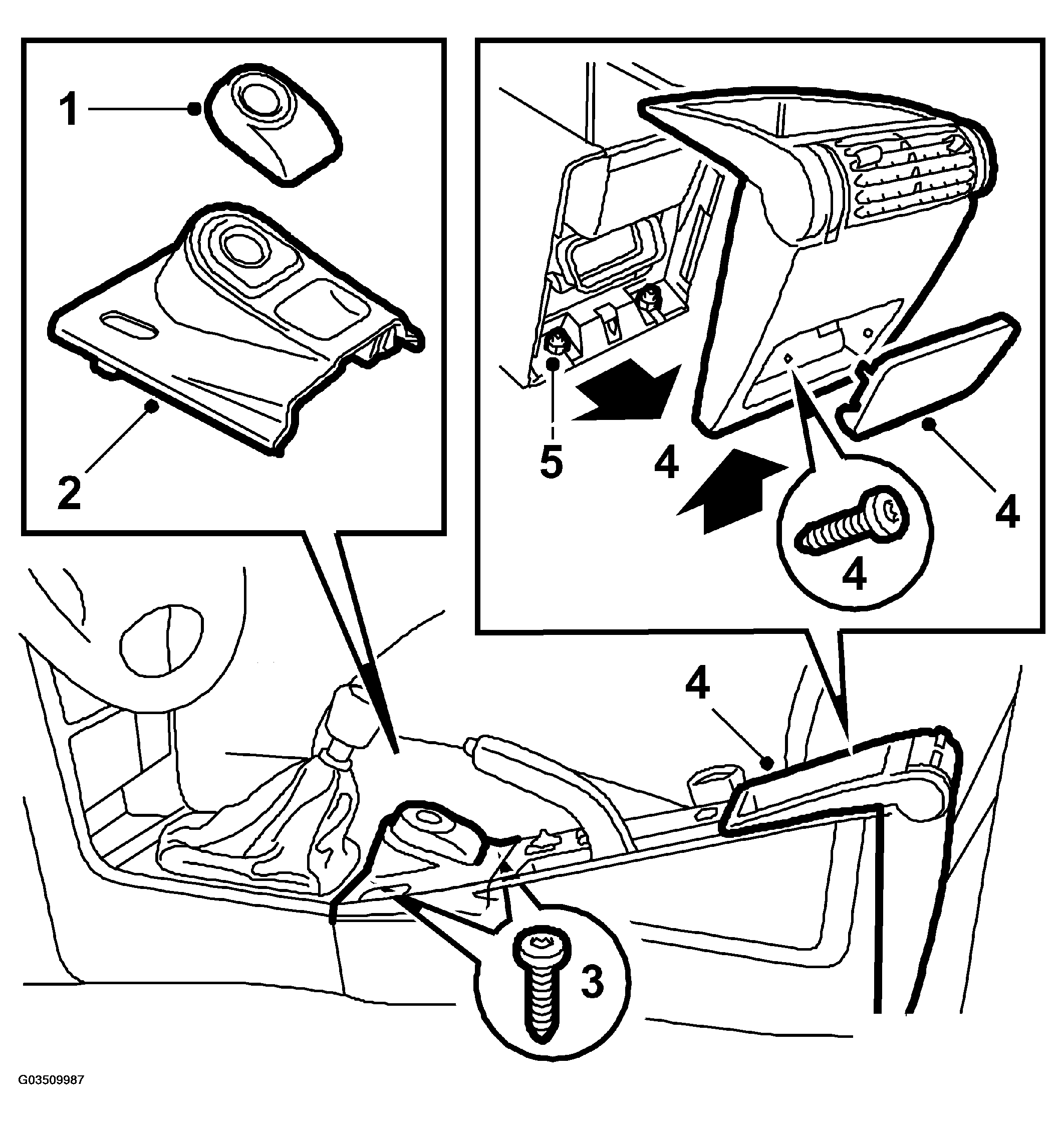

    Fig 1: Removing Rear Ashtray/Cover
    G03509987Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the rear cover.
  7. Remove the floor console retaining nuts.
  8. Loosen the floor console by pulling it straight back and lifting it slightly.

    Unplug the connector to the remote control receiver.

  9. Convertible:  Remove the interior lighting switch using a screwdriver or by pressing from below and pulling straight up (the switch is secured with clips). Unplug the switch contact.
  10. Loosen the window lift module by releasing the front (snap fastener). Unplug the window lift module connector.
  11. Lift away the floor console.

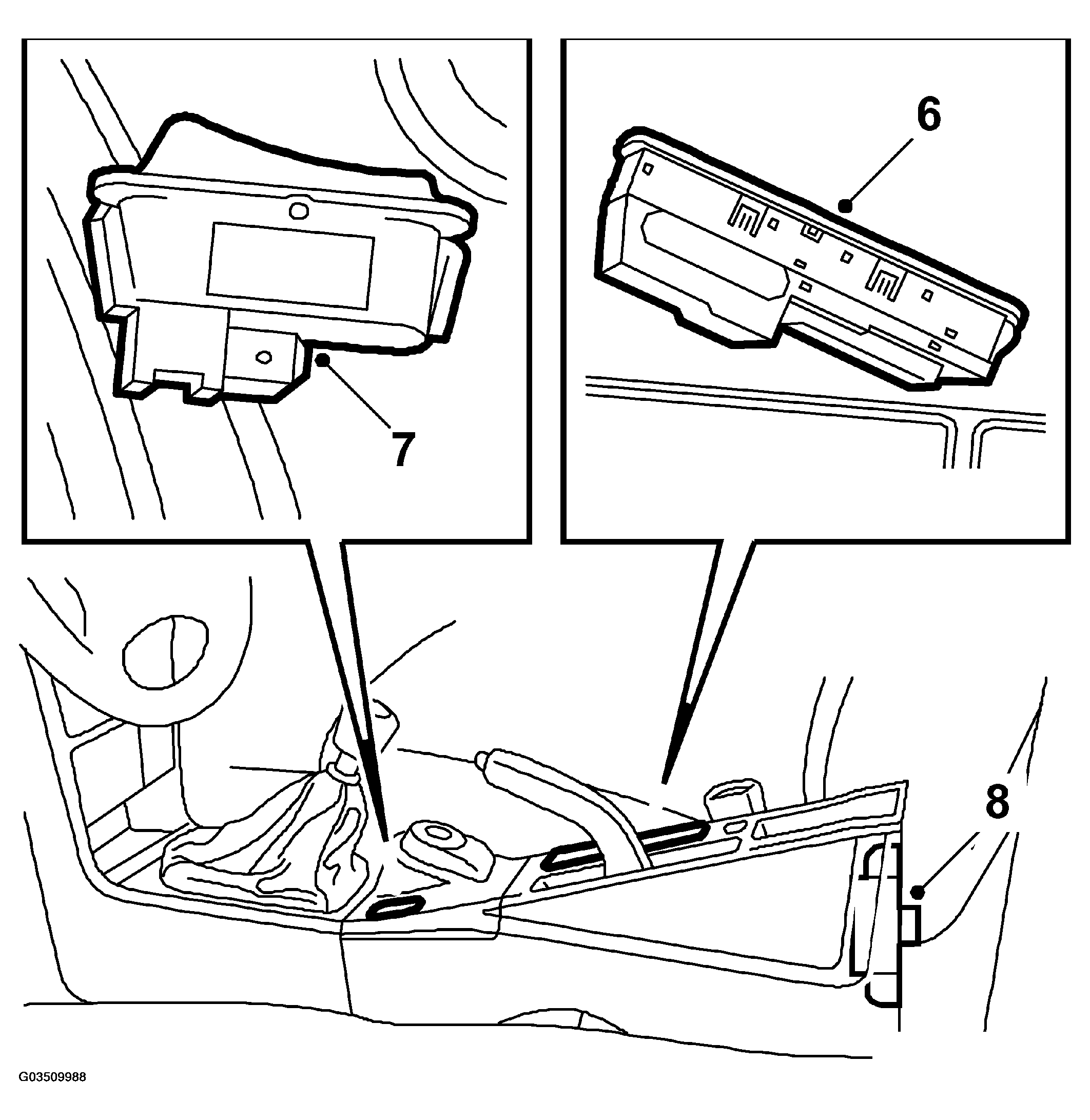

    Fig 2: Removing Floor Console
    G03509988Courtesy of SAAB-SCANIA OF AMERICA, INC.
