To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

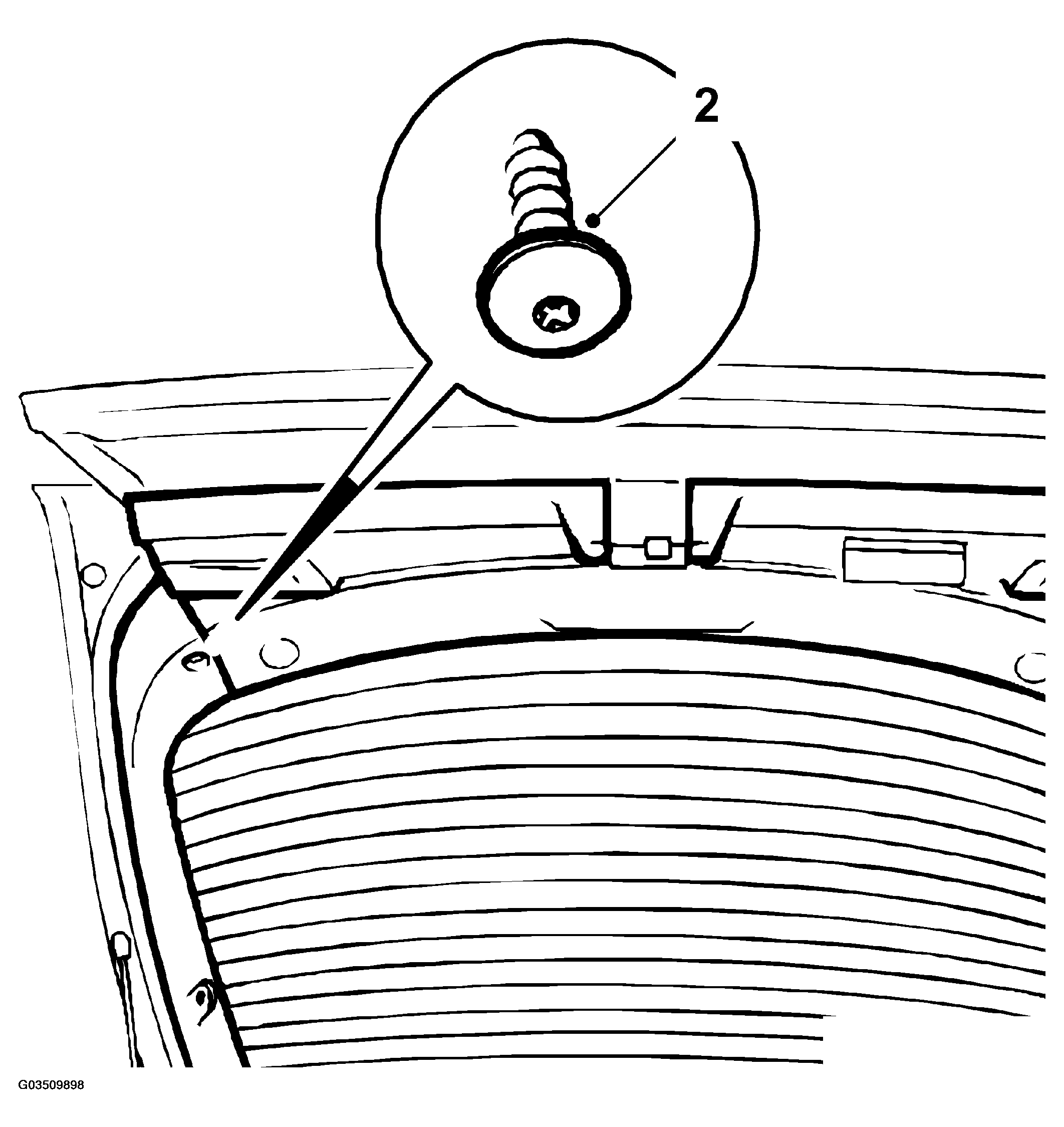

Fig 1: Removing Window Frame Trim From Door Trim
G03509898Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lift out the parcel shelf.
  2. Undo the window frame trim (fastened with screws and clips) from the door trim.
  3. Undo the door trim retaining screws.

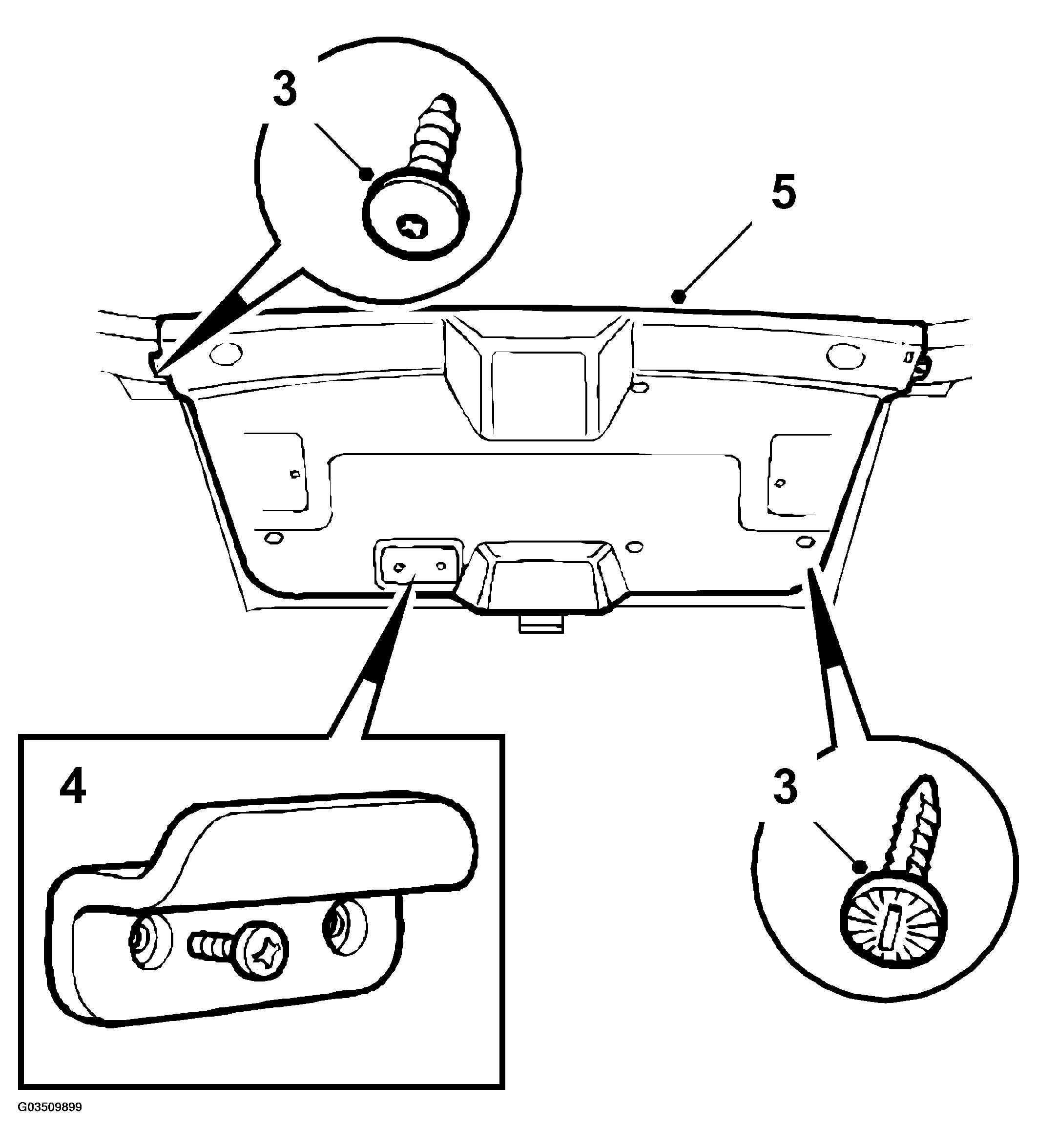

    Fig 2: Removing Window Frame Trim
    G03509899Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the door pull.
  5. Detach the door trim and lift it away.
