To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the window lift switch.
  2. Remove the door-pull cover (fastened with clips).

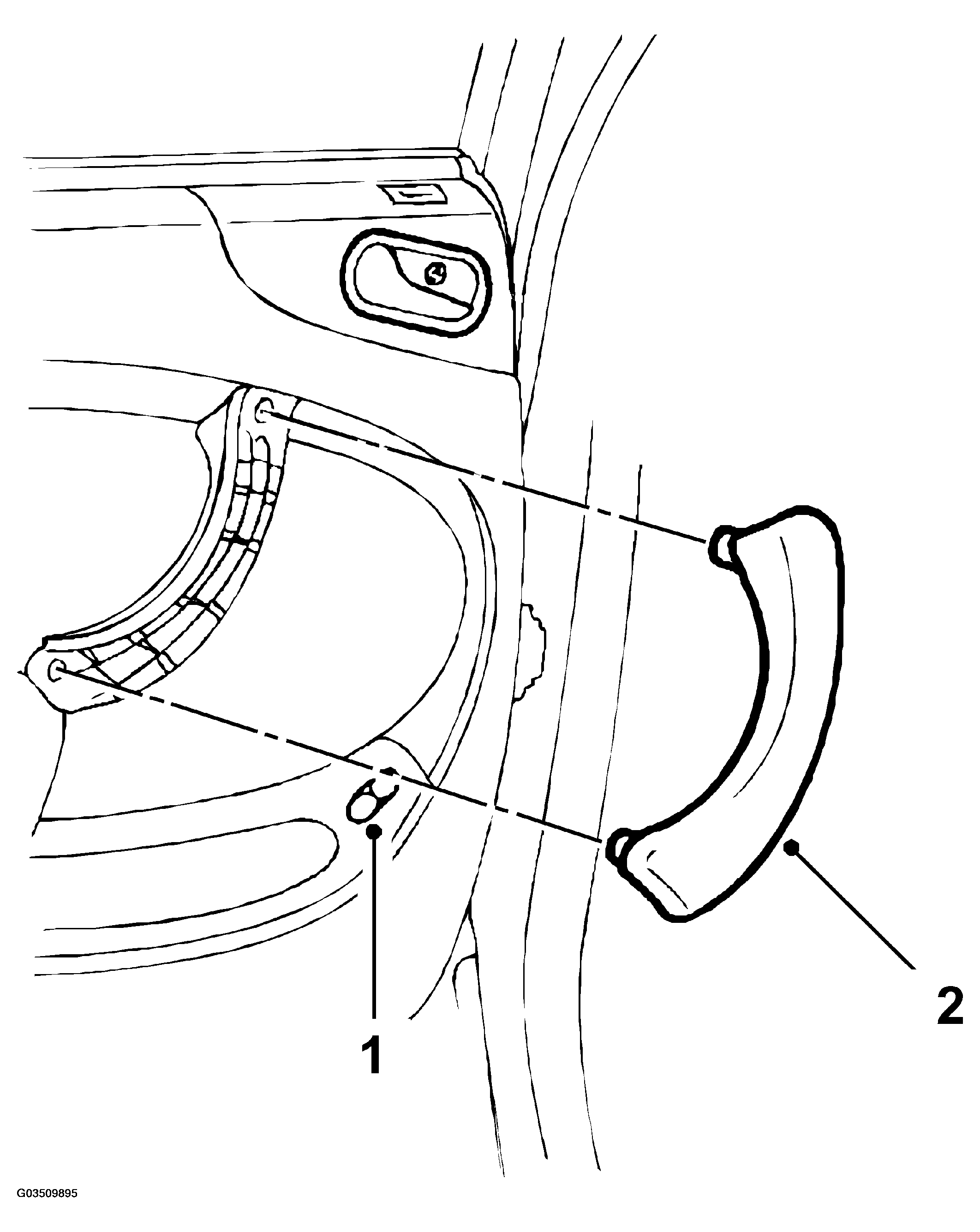

    Fig 1: Removing Door Pull Cover
    G03509895Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the trim retaining screws in the door pull.

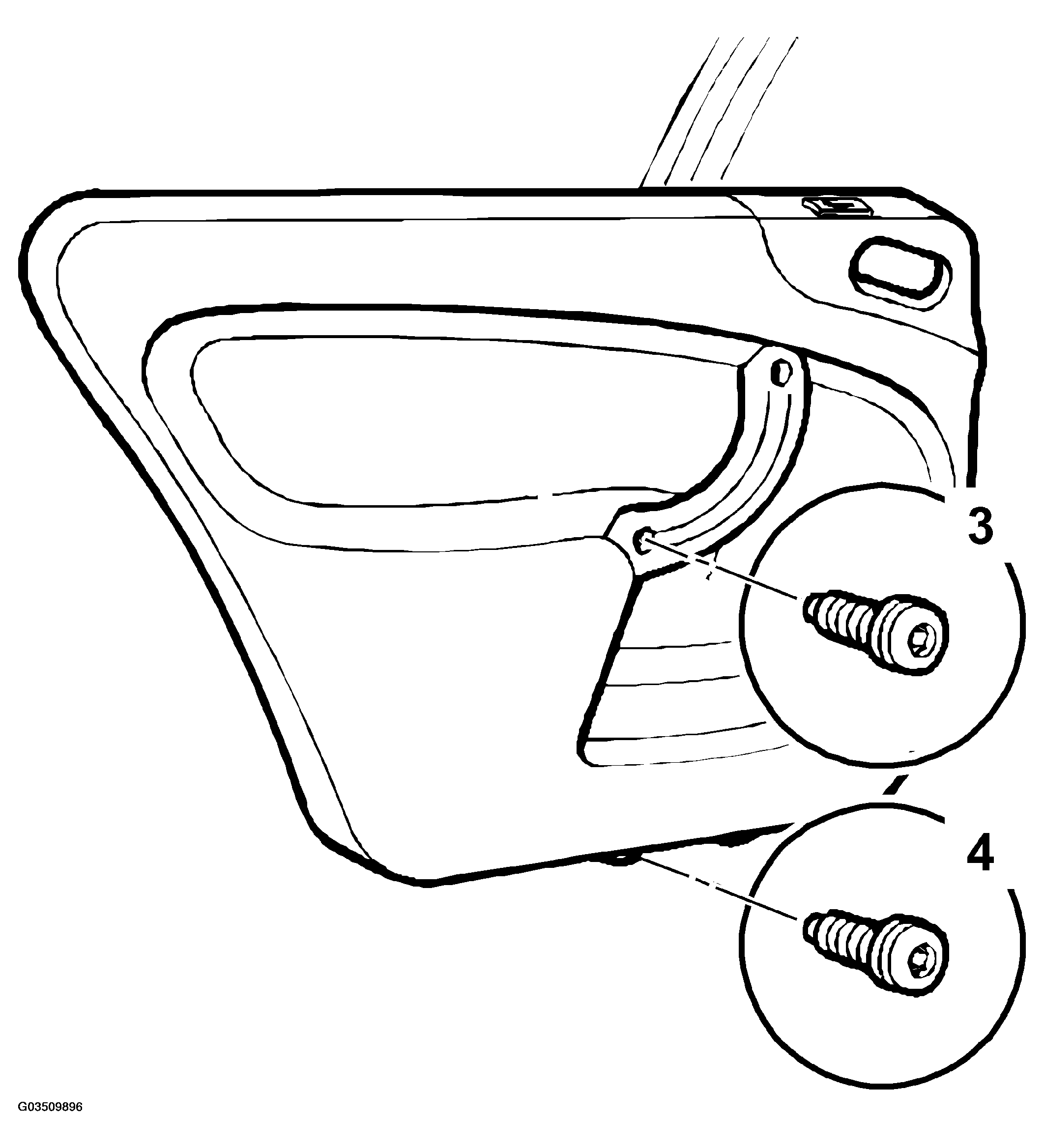

    Fig 2: Removing Inside Door Handle
    G03509896Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the screws under the storage pocket.
  5. Remove the inside door handle.

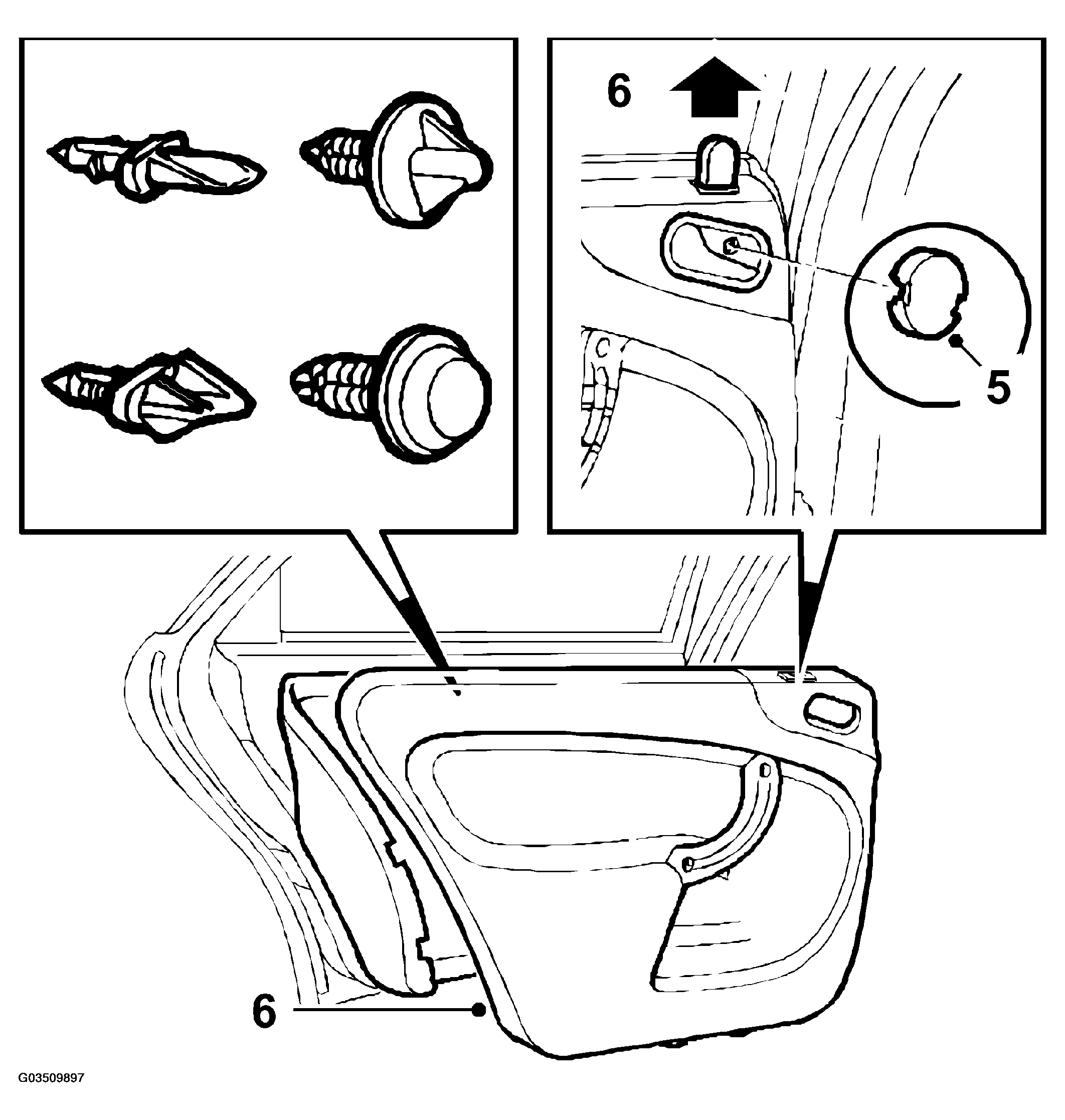

    Fig 3: Pulling Off Trim
    G03509897Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Pull off the trim (fastened with clips) and lift it over the lock button.
