To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

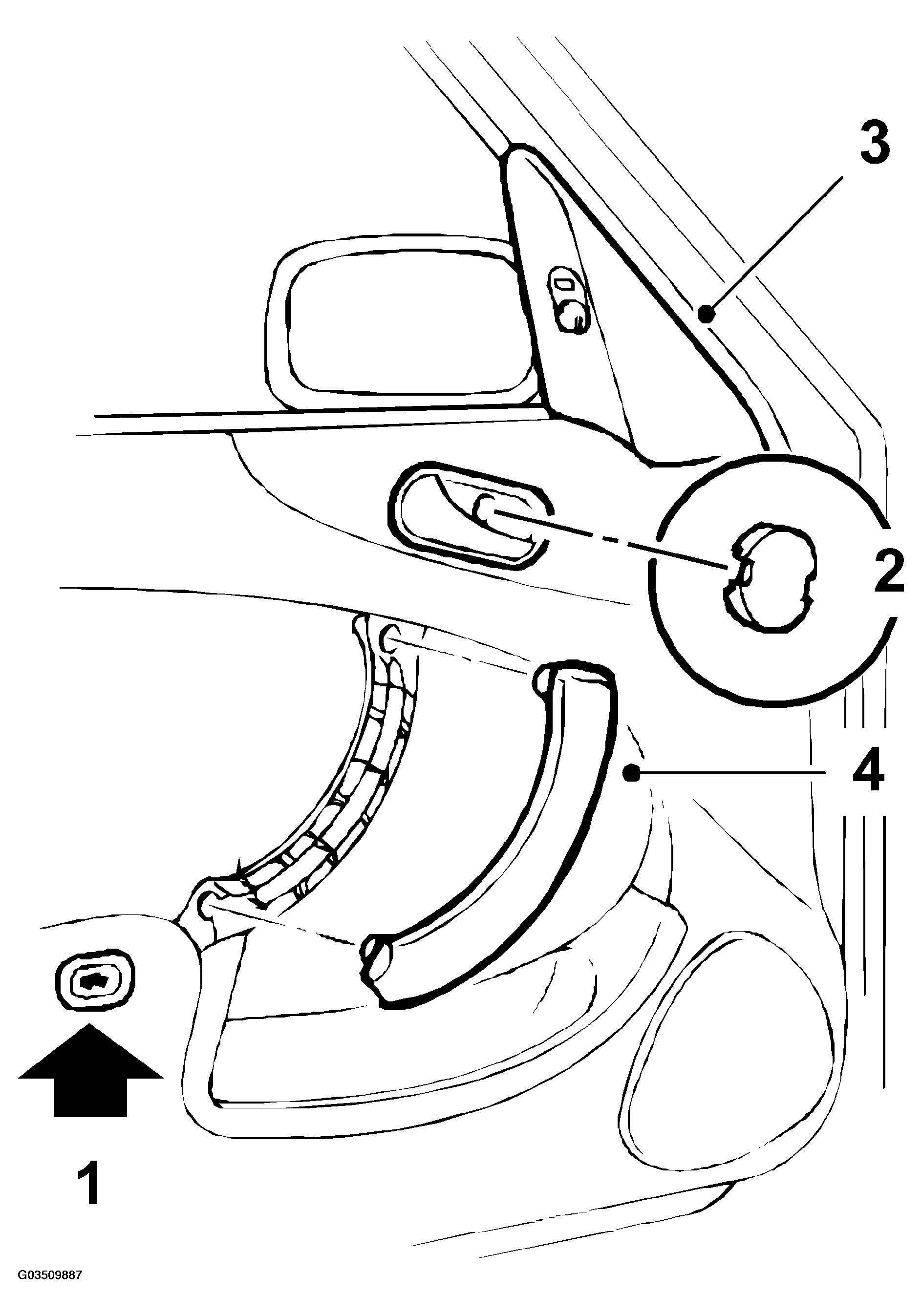

Fig 1: Removing Door Trim, Front Door
G03509887Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the tailgate opening button.
  2. Undo the cover on the door handle mounting and remove the door handle.
  3. Remove the cover on the door mirror.
  4. Remove the door pull cover.
  5. Undo the screw securing the door trim.

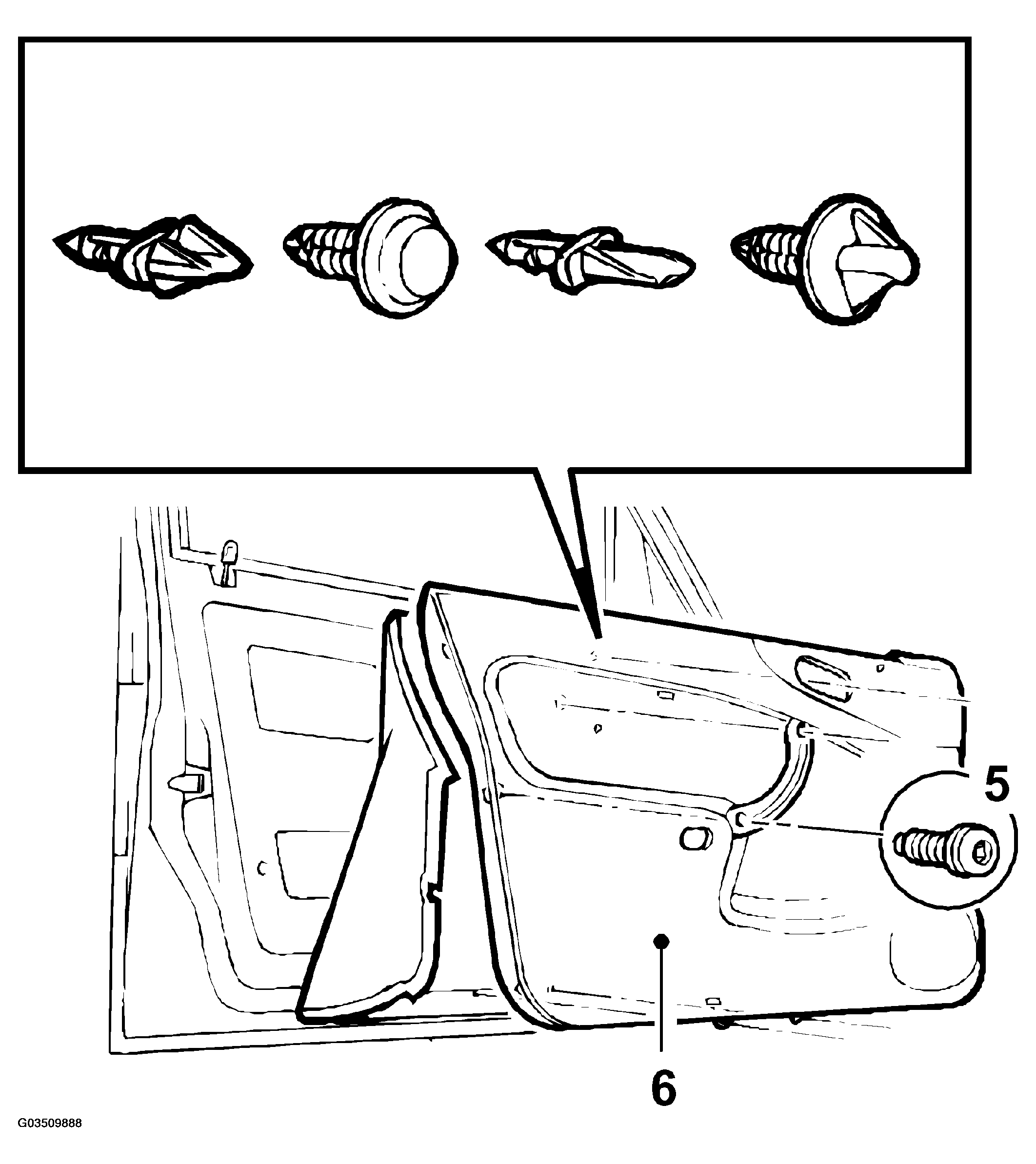

    Fig 2: Removing Screw Securing Door Trim
    G03509888Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Pull off the door trim (fastened with clips) and lift it off the lock button.
