To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

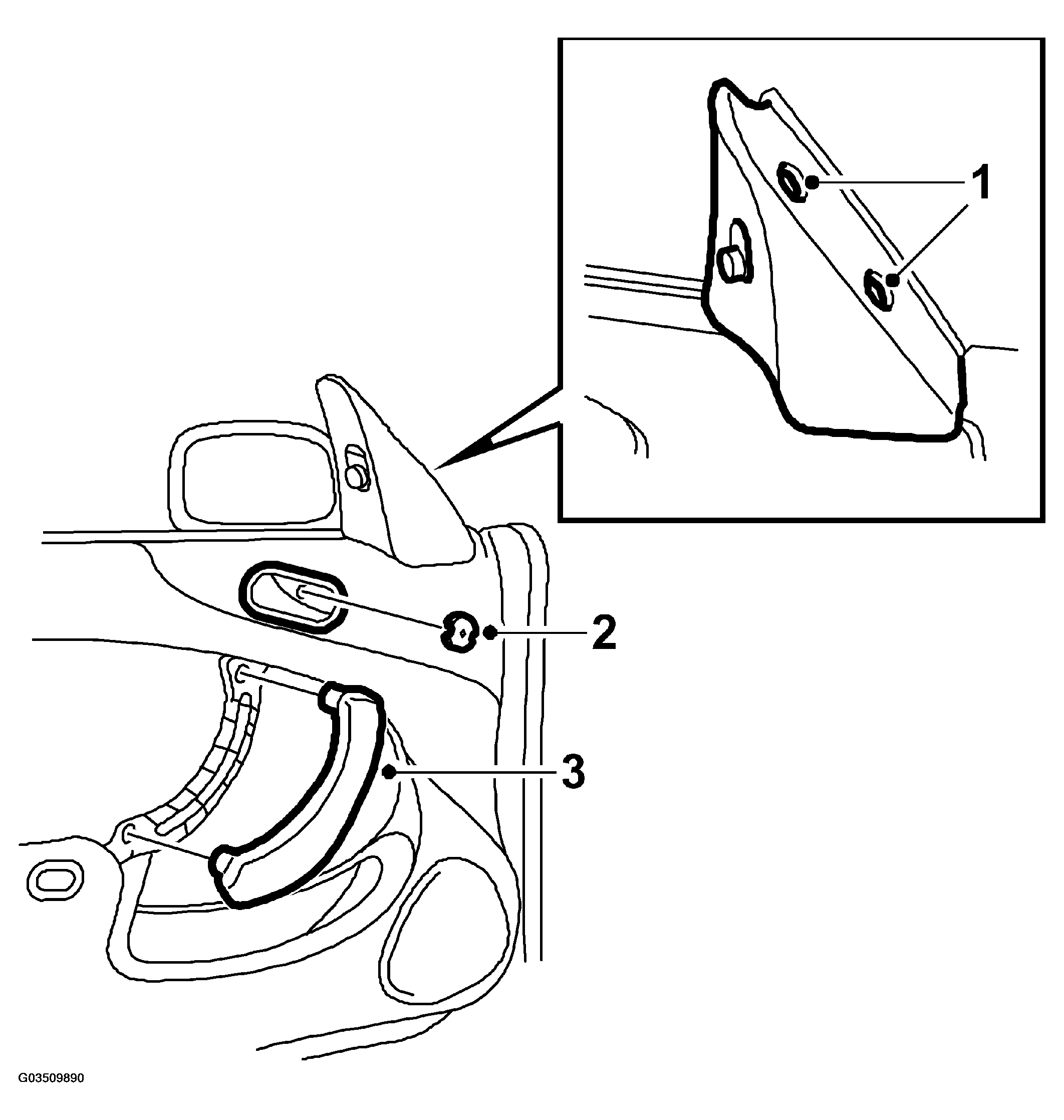

Fig 1: Removing Door Opening Handle
G03509890Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the cover by the door mirror.
  2. Remove the door opening handle by loosening the bolt under the cover.
  3. Remove the closing handle cover.
  4. Remove the screws that secure the door trim.

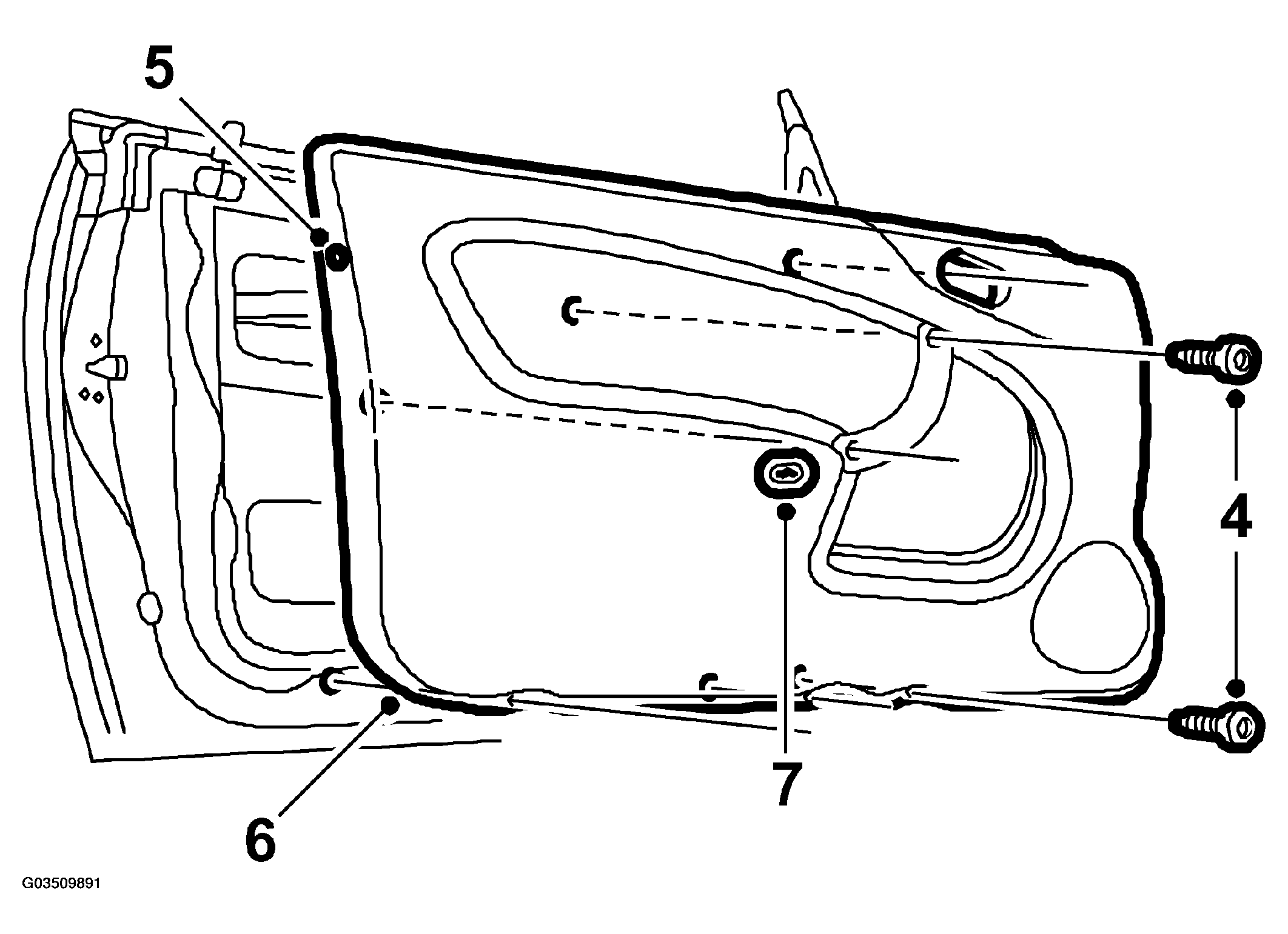

    Fig 2: Removing Expander Rivet
    G03509891Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the expander rivet.
  6. Carefully pull away the door trim and lift it off the lock button.
  7. Remove the boot lid opening button.
