To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

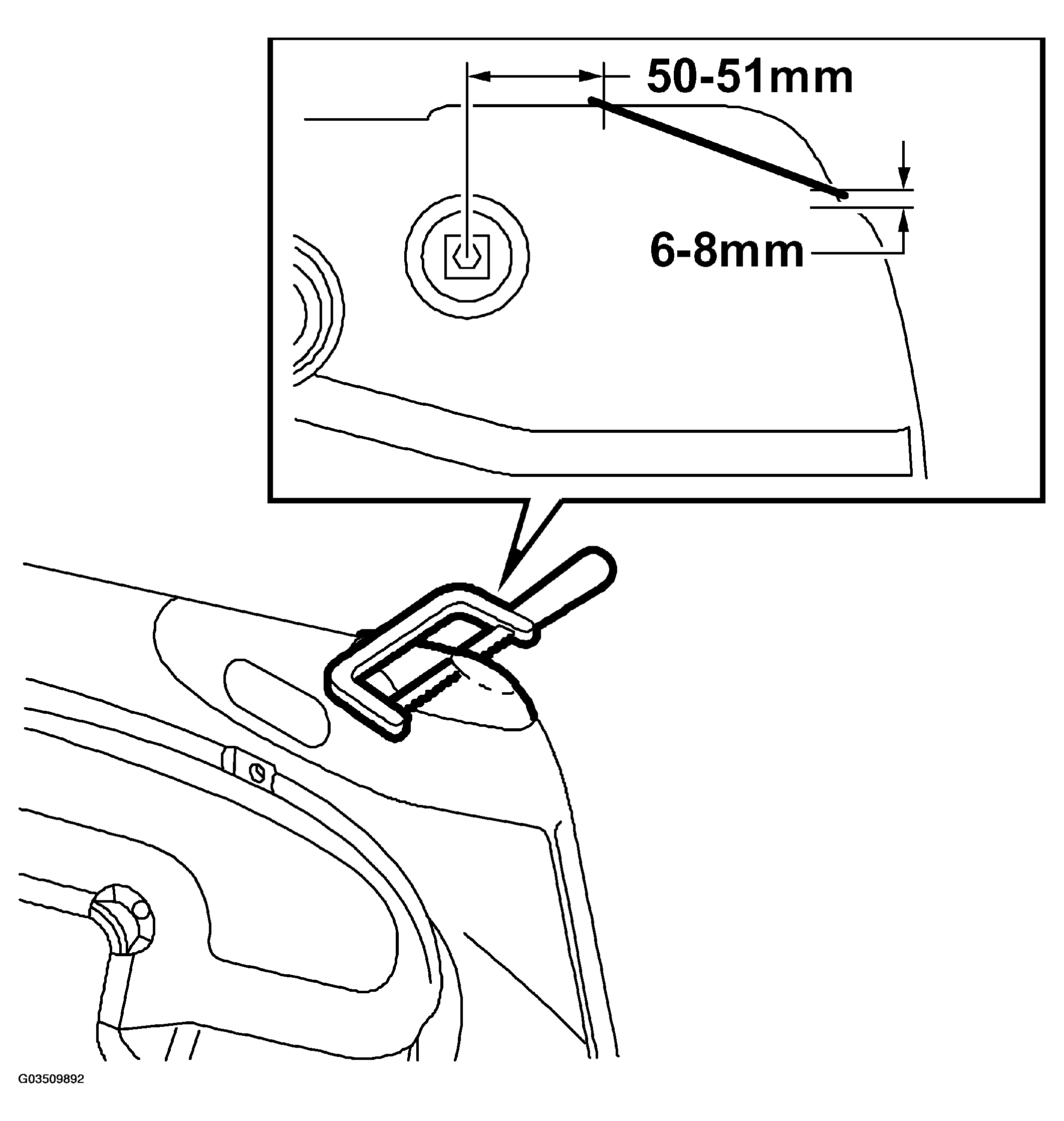

Fig 1: Marking Cutting Line

Courtesy of SAAB-SCANIA OF AMERICA, INC.

In order to decrease the number of parts kept in stock, the same door trim has been used on the Saab 9-3 Coupe and Saab 9-3 Convertible. When fitting new door trim on the Saab 9-3 Convertible, the front upper corner of the trim must be cut as follows:

Mark the cutting line.
Position a support along the cutting line and cut away the corner. Use a hacksaw or a knife.
Put in place the boot lid opening button.

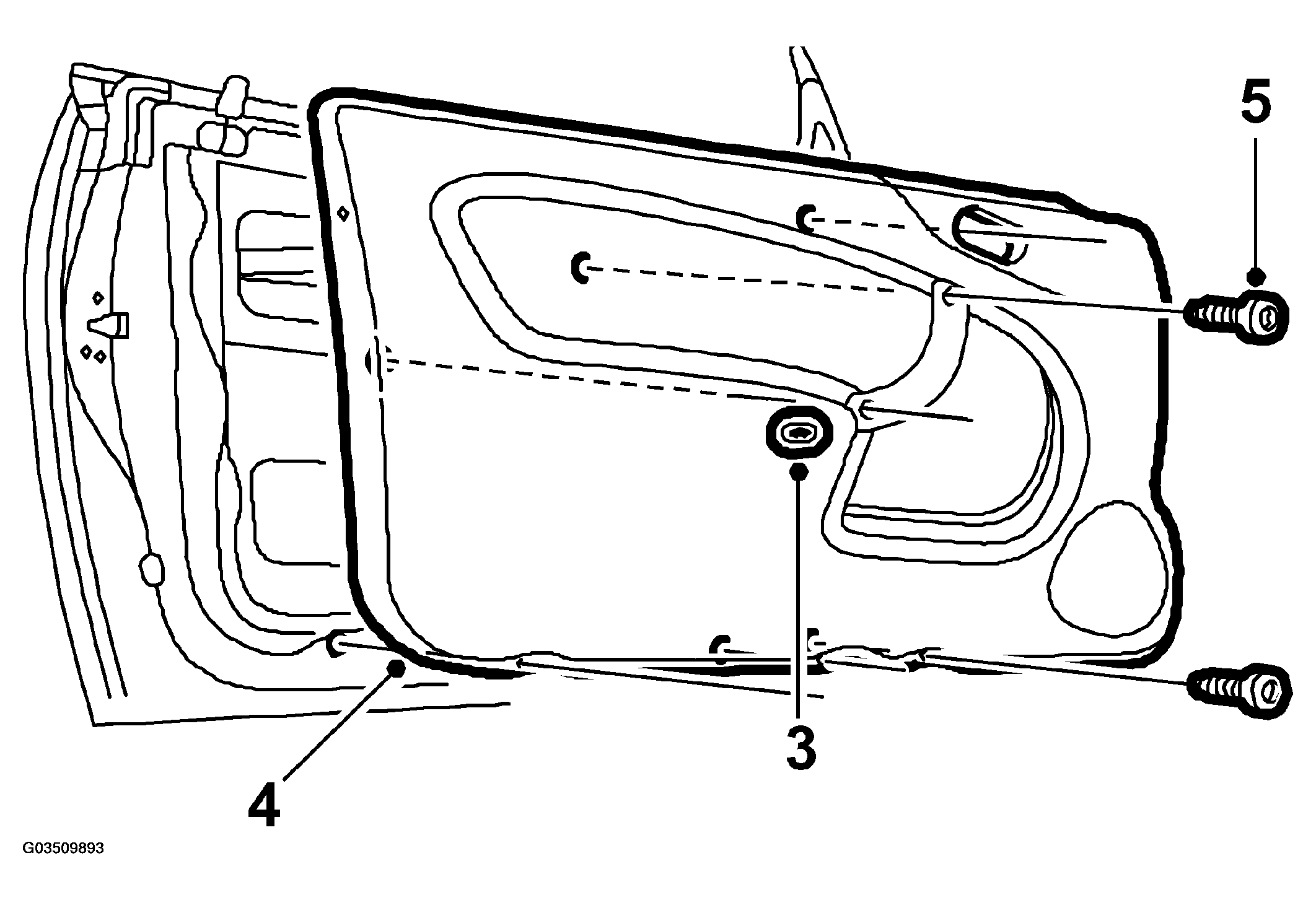

Fig 2: Tightening Bolts And Fitting Lock Washer
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Position the door trim and press it in place.
Tighten the bolts and fit the lock washer.
Refit the door pull cover.

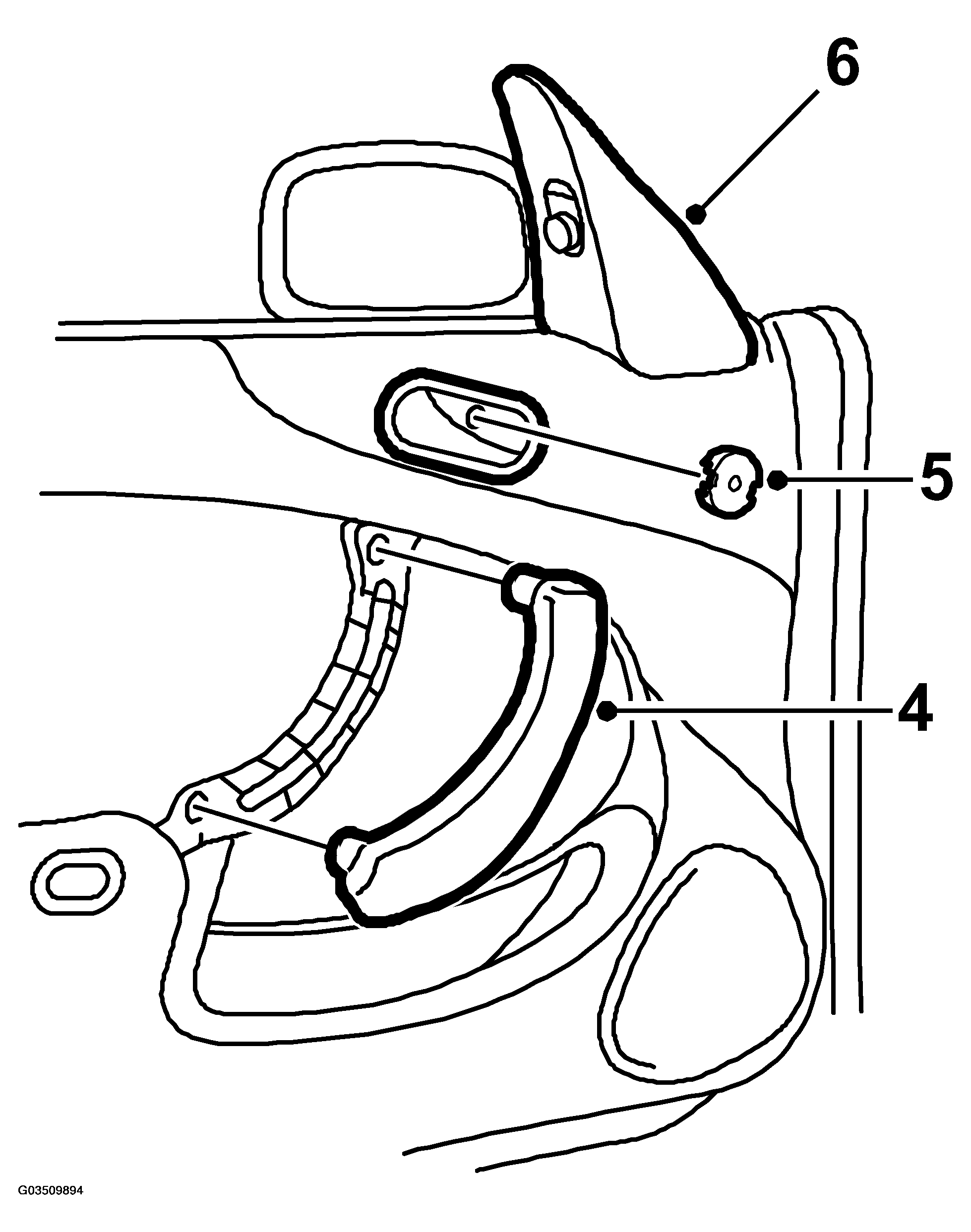

Fig 3: Tightening Bolt And Pressing On Cover
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Refit the opening handle, tighten the bolt and press on the cover.
Refit the cover by the door mirror.
