To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove box.
  2. Detach the air vent ducts.
  3. Release the air vent lock tab and press out the air vent from the rear.

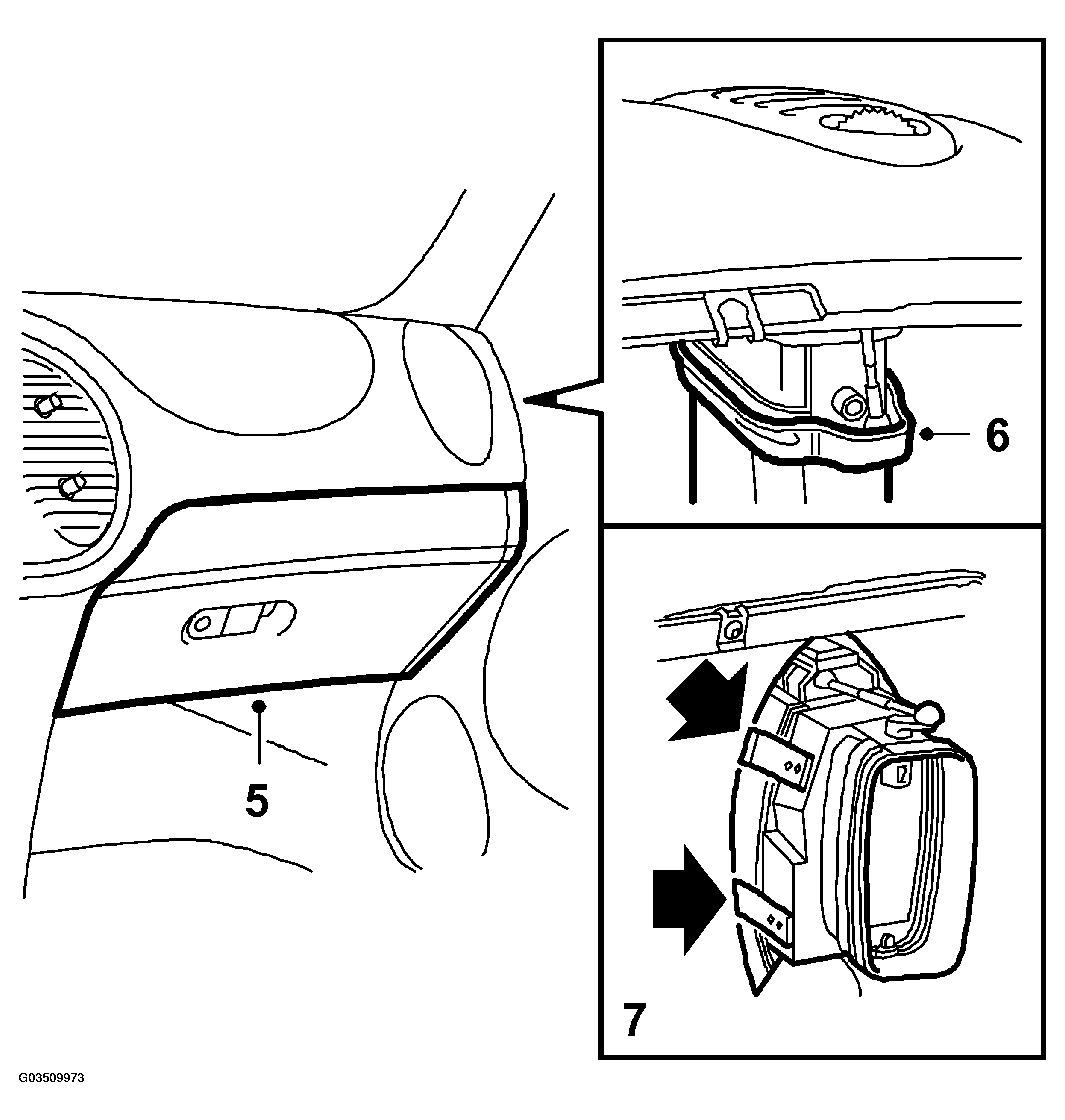

    Fig 1: Removing Air Vent
    G03509973Courtesy of SAAB-SCANIA OF AMERICA, INC.
