To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This description applies to Saab original equipment. If the car is fitted with a sound system other than Saab standard, the radio code may be required when reconnecting.
  1. Press both special tools into the intended holes in the main unit. Press until the tools click home.
  2. Pull out the main unit with the tools. Remove the tools.

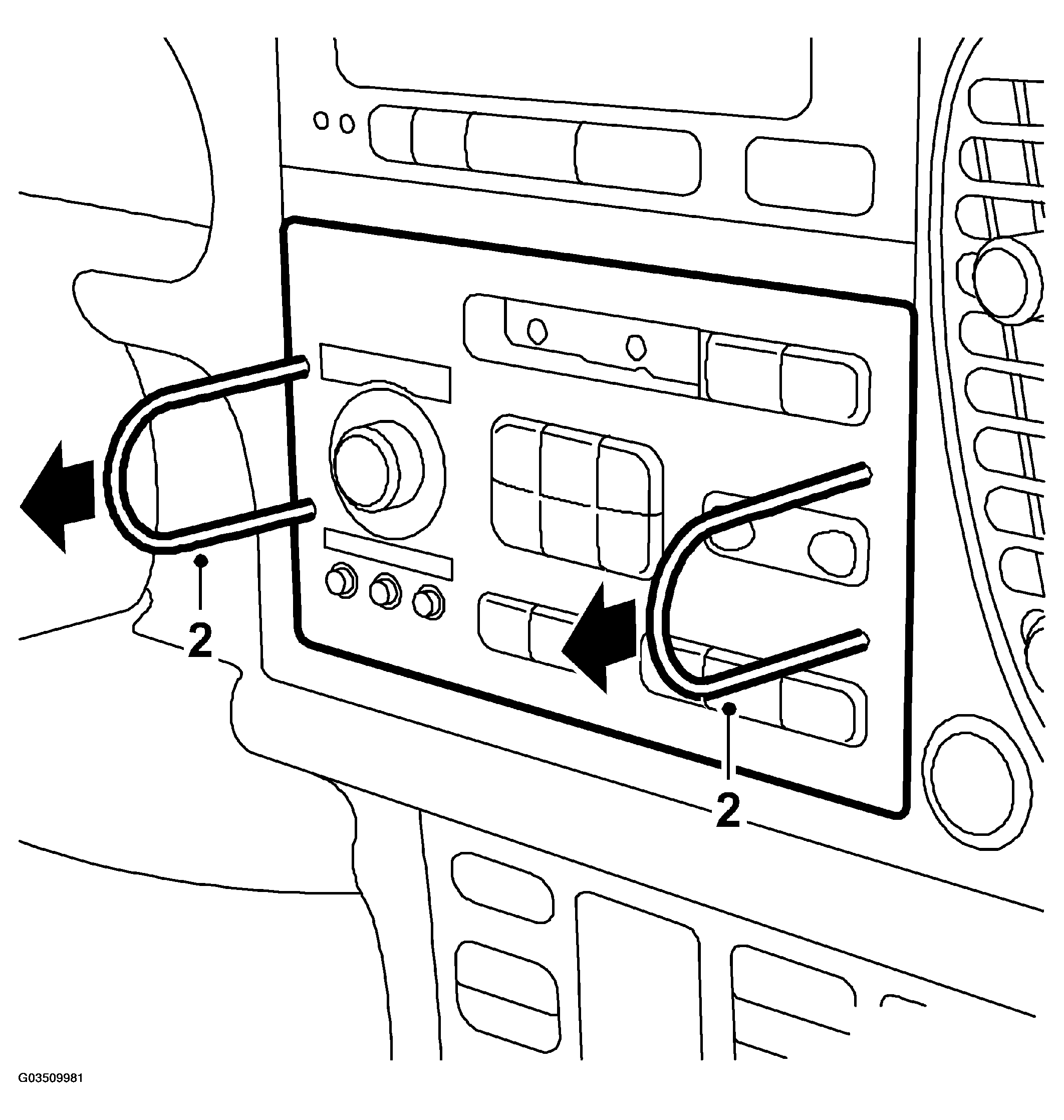

    Fig 1: Pulling Out Main Unit With Tools
    G03509981Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector and antenna cable.
  4. Unplug the DIN connector for the external amplifier if one is connected.

    Put the unit to one side.

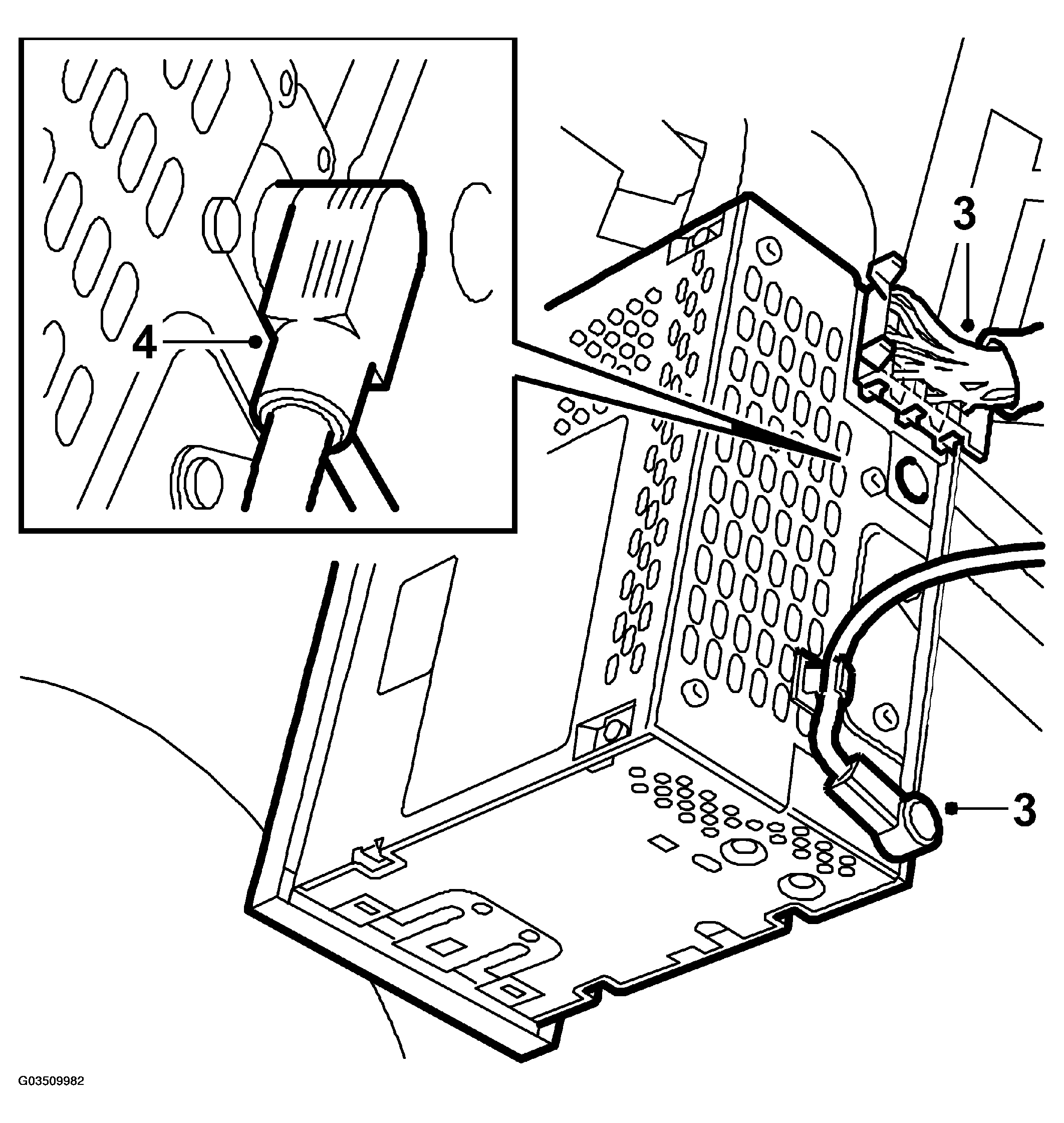

    Fig 2: Unplugging Connector And Antenna Cable
    G03509982Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Press out SID from behind.
  6. Unplug the connector and lay the unit to one side.

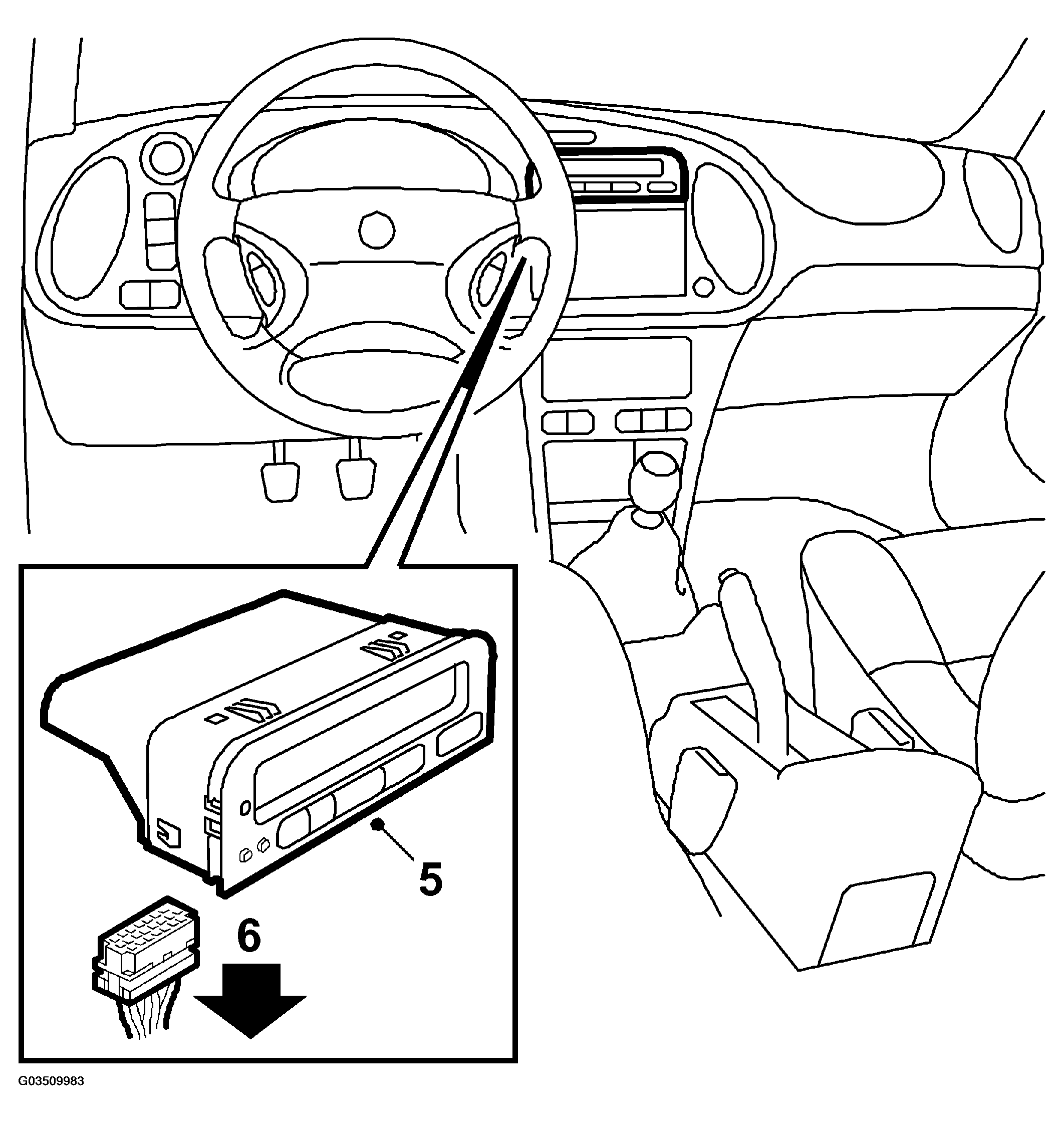

    Fig 3: Unplugging Connector And Laying Unit Aside
    G03509983Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Bend in the hooks with a small screwdriver and pull out the cup holder a few millimetres.
  8. Pull out the cartridge with cup holder while pressing down the lugs with a small screwdriver.

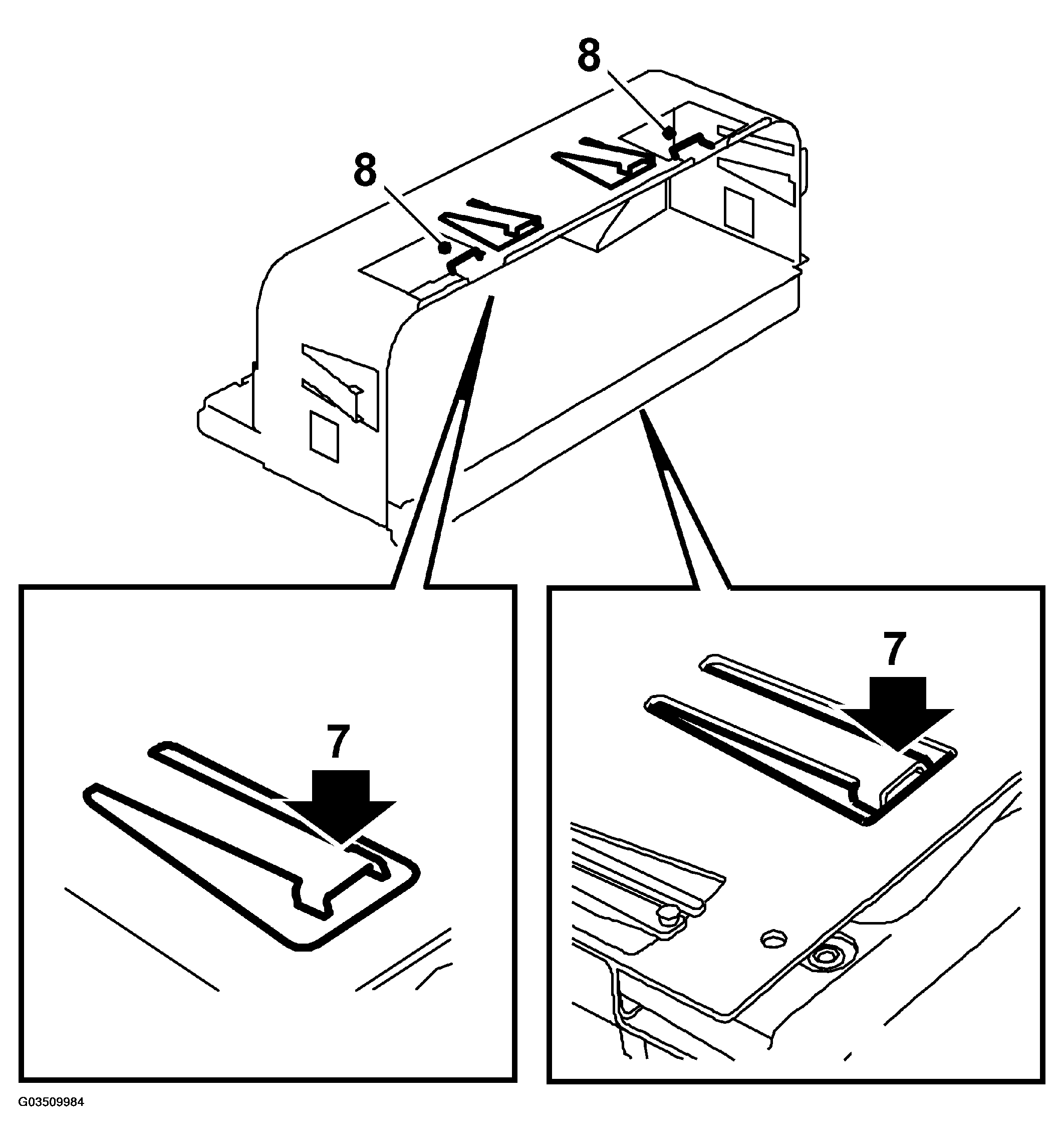

    Fig 4: Pulling Out Cartridge With Cup Holder
    G03509984Courtesy of SAAB-SCANIA OF AMERICA, INC.
