To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right-hand side section.
  2. Unplug the cigarette lighter connector.
  3. Press on the sides of the plastic sleeve as illustrated and press out the metal sleeve from the rear.
  4. Press out the plastic sleeve.

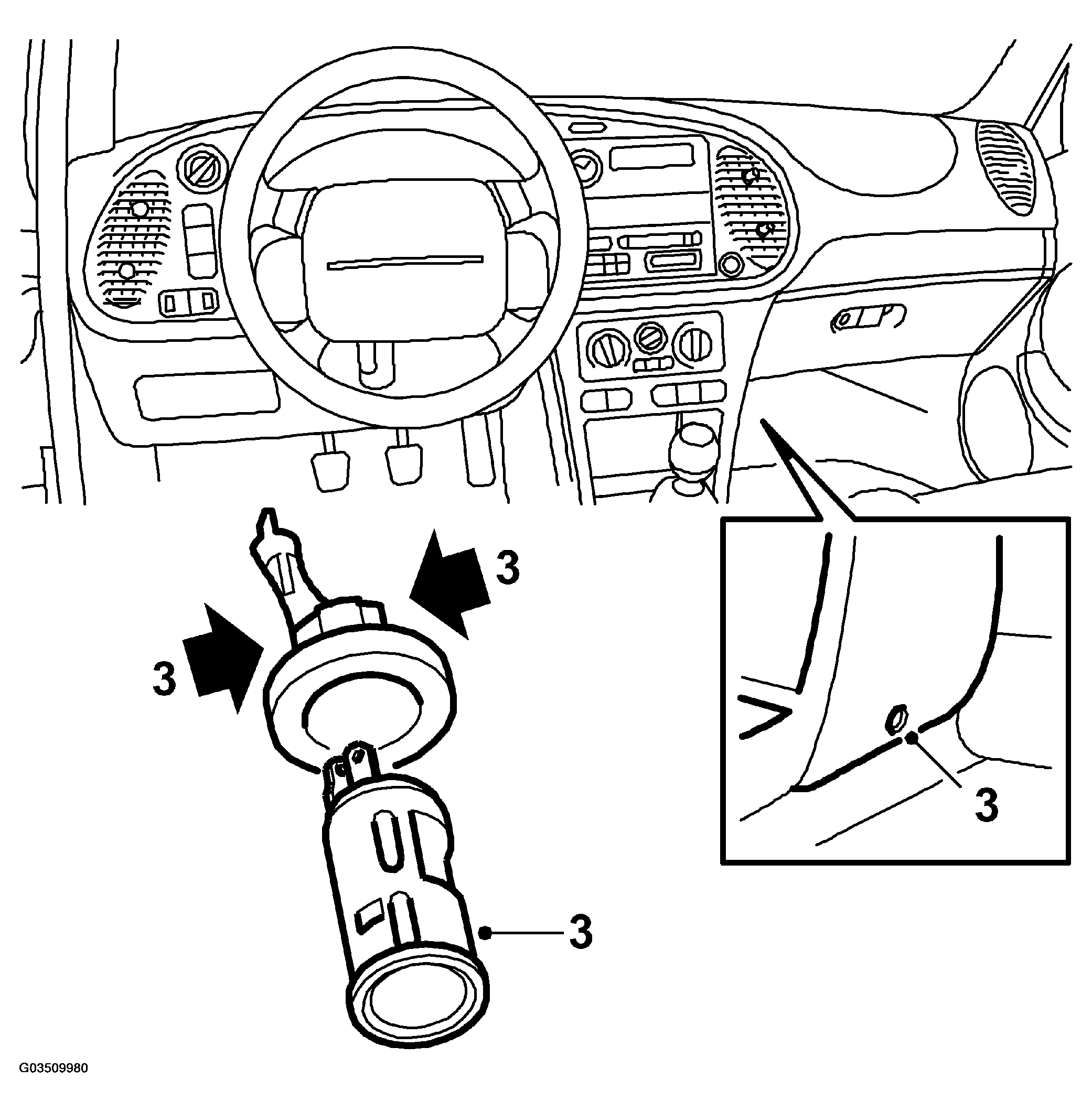

    Fig 1: Removing Cigarette Lighter
    G03509980Courtesy of SAAB-SCANIA OF AMERICA, INC.
