To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

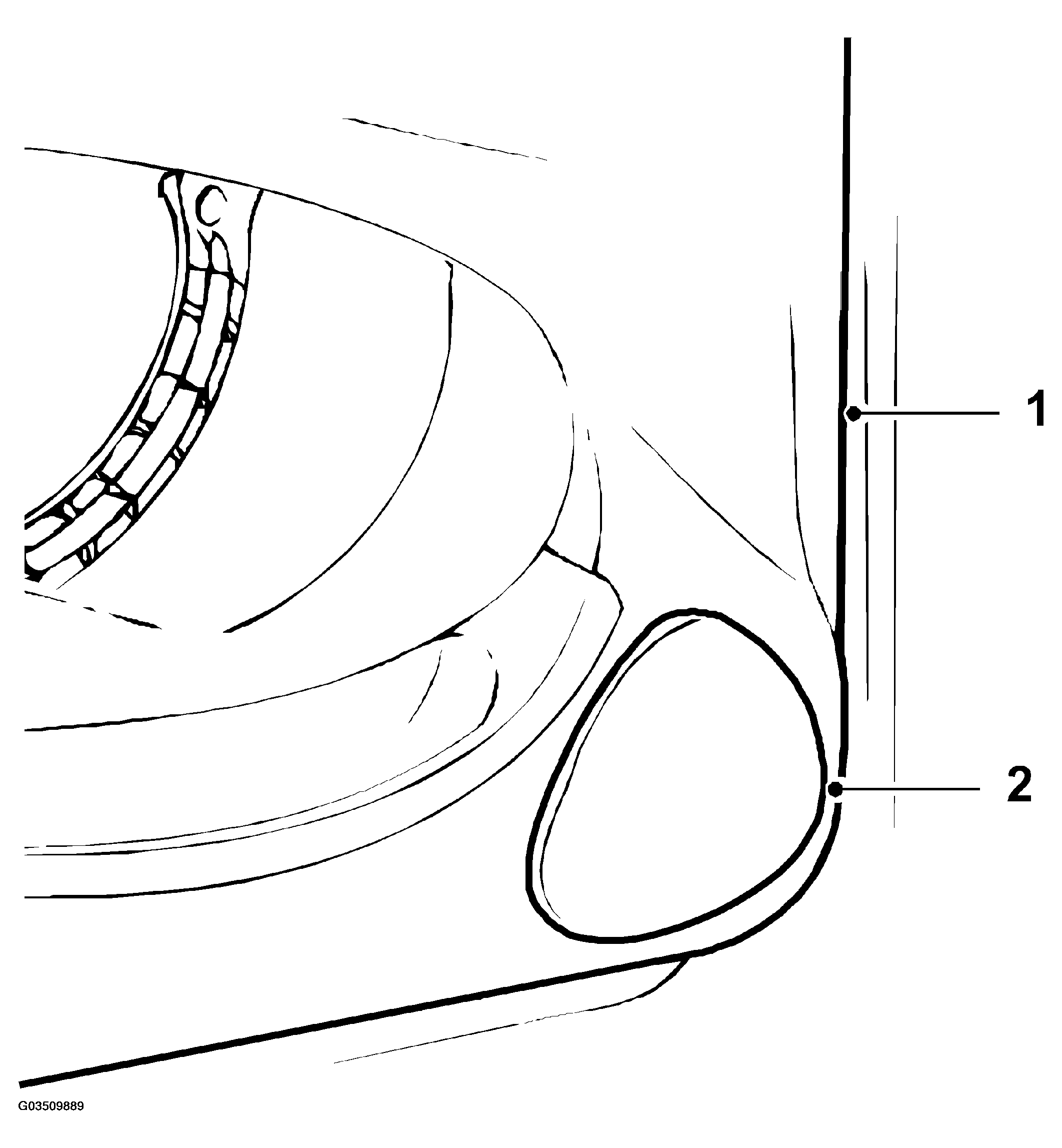

Fig 1: Removing Loudspeaker Grilles, Front Door
G03509889Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the door trim.
  2. Remove the loudspeaker grille, which is secured with plastic studs and locked with lock washers.
