Seat belts, rear

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

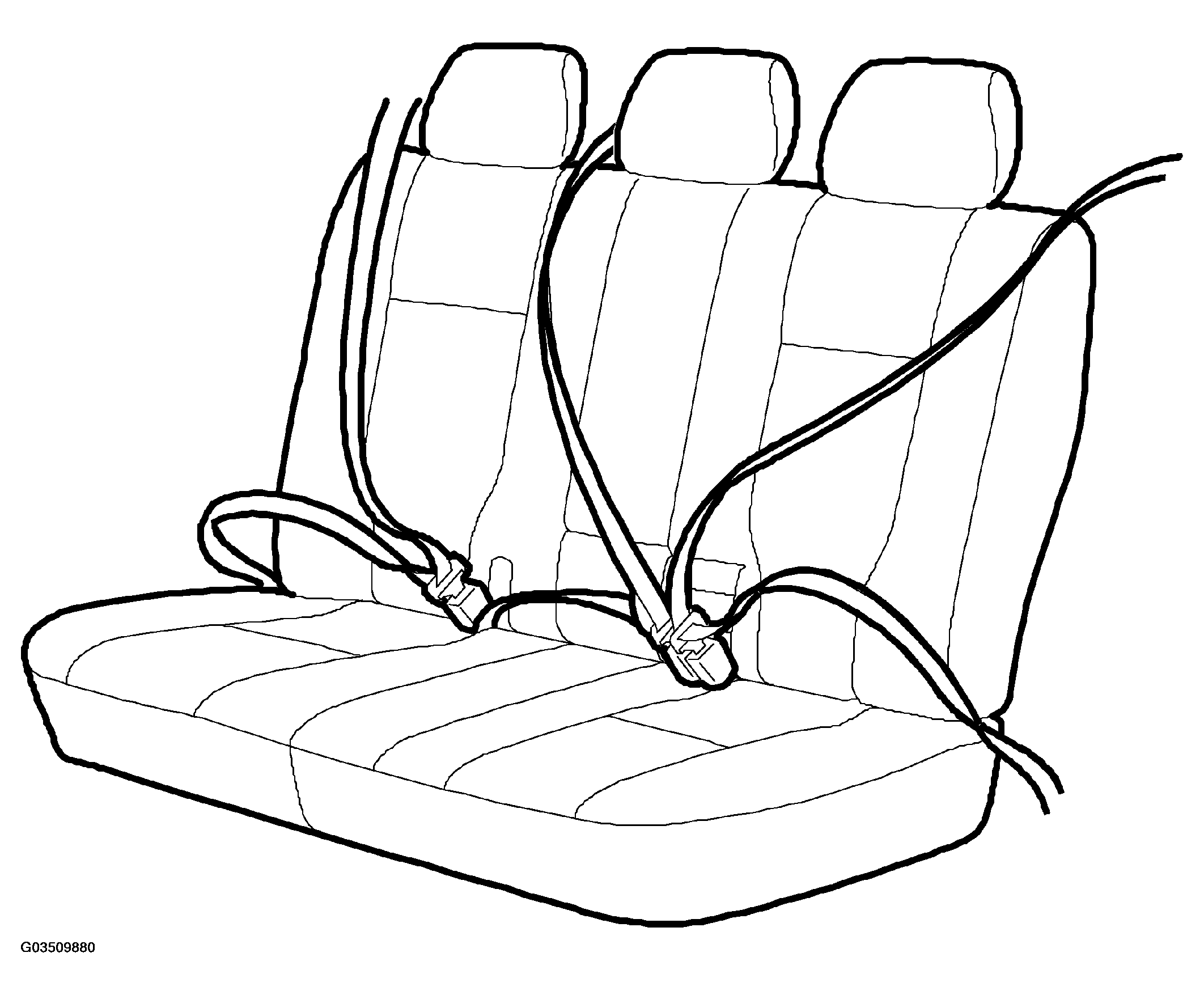

Fig 1: Identifying Rear Seat Belts
G03509880Courtesy of SAAB-SCANIA OF AMERICA, INC.

The rear seat belts are three-point type on all three seats. The reels are mounted in the member on the rear backrest. The member locking device is designed to withstand crash loads from three belt reels.

The reels are fitted with belt heighteners to raise them against the passenger's shoulder for increased comfort. The heightener also protects the belt during a collision by minimizing the risk for tearing.
